M12 Long Focal Length Lens, 5MP, 25mm Focal length, Large Aperture, Compatible with Raspberry Pi
M12 Long Focal Length Lens, 5MP, 25mm Focal length, Large Aperture, Compatible with Raspberry Pi High Quality Camera M12
SKU: 24054
M12 Long Focal Length Lens, 5MP, 25mm Focal length, Large Aperture, Compatible with Raspberry Pi High Quality Camera M12
M12 Long Focal Length Lens, 5MP, 25mm Focal length, Large Aperture, Compatible with Raspberry Pi High Quality Camera M12
WS0202505

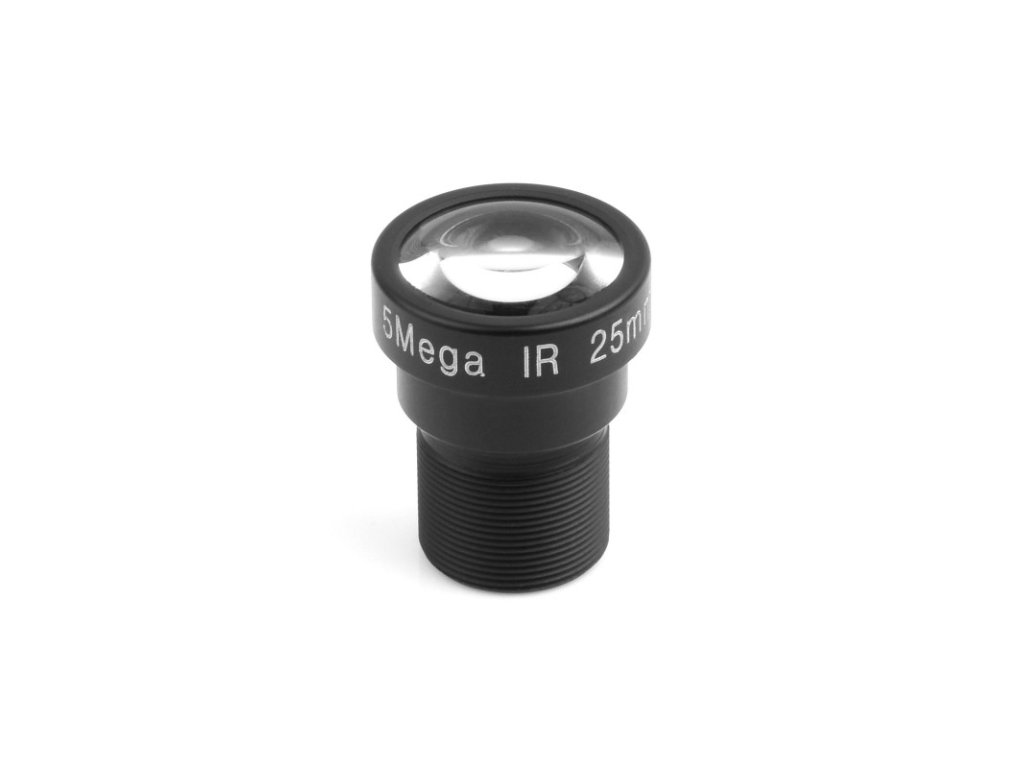

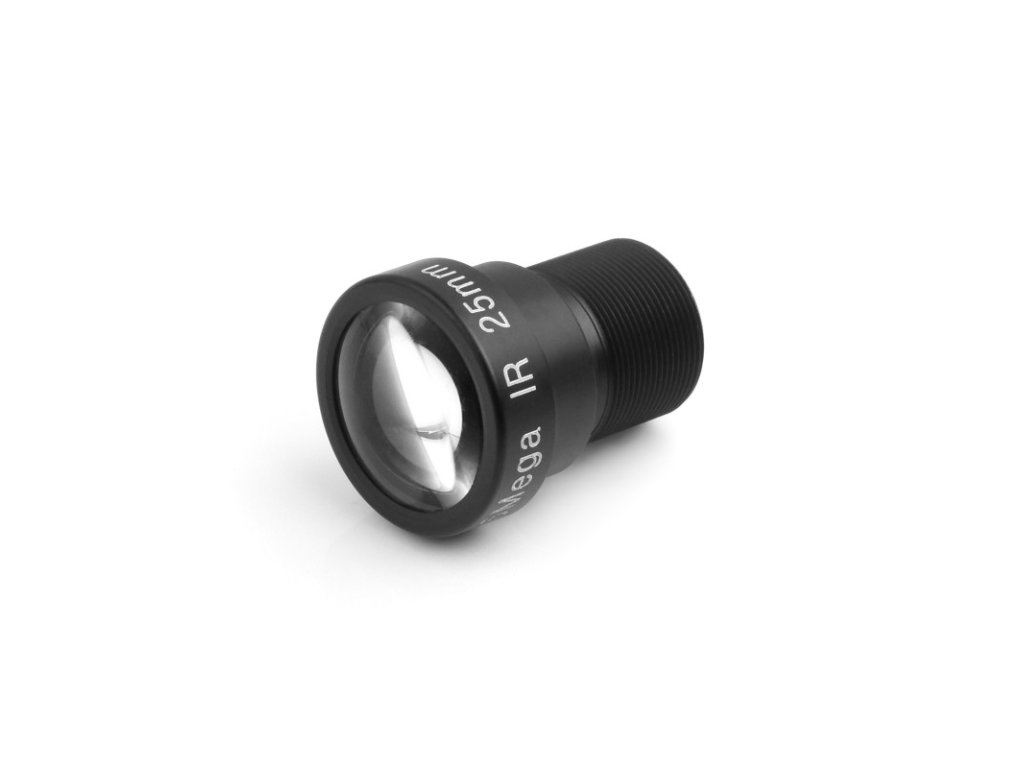

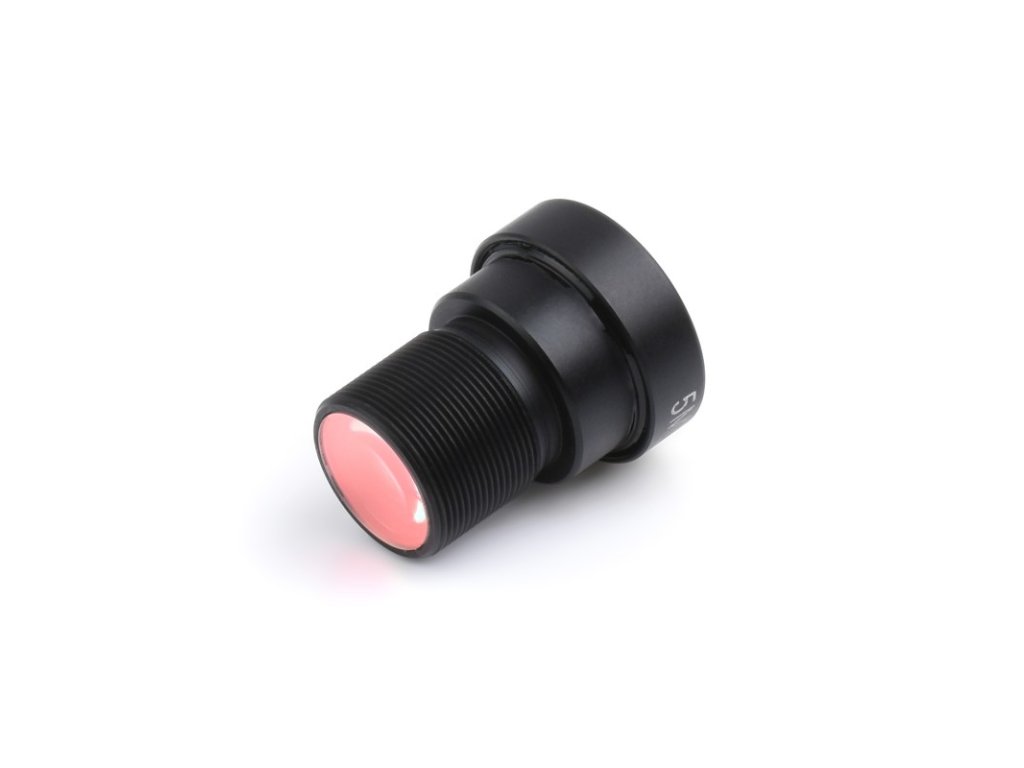

M12 Long Focal Length Lens
M12 Long Focal Length Lens
5MP | 25mm Focal length | 20.2° FOV | Large Aperture
WS0202505 is an M12 lens with 5MP resolution, 25mm long Focal length, and F1.7 Large Aperture. Suitable for M12 mount camera module such as Raspberry Pi HQ Camera M12
Note: the M12 mount camera module is NOT included, please purchase it separately.
M12 Lens Selection
| Model |  WS1842714 |
 WS1053516 |
 WS1132712 |
 WS1603212 |
 WS0698012 |
 WS0202505 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Resolution | 14M | 16M | 12M | 5M | ||||||||||||
| Focal length | 2.72mm | 3.56mm | 2.7mm | 3.2mm | 8mm | 25mm | ||||||||||
| Aperture (F/NO) | 2.5 | 2.5 | 2.8 | 2.0 | 1.8 | 1.7 | ||||||||||
| Back focus length |
3.06mm | 5.92mm | 4.97mm | 6.14mm | 10.02mm | 5.20mm | ||||||||||
| DISTORTION | <-21% | <-17.6% | <-1.5% | <-64% | <-15.68% | <0.30% | ||||||||||
| Mount | M12*P0.5 | |||||||||||||||
| Operating temperature |
-30 ~ +75°C | -30 ~ +70°C | -40 ~ +105°C | -20 ~ +60°C | -20 ~ +80°C | |||||||||||
| Construction | 8G+IR | 4G3P+IR | 5G2P+IR | 8G+IR | 6G+IR | |||||||||||
| Weight | 9g | 7g | 6g | 28g | 12g | 9g | ||||||||||
| Field of view | IMAGE FORMAT | 1/2.3" | 1/2.3" | 1/2.5" | 1/2.3" | 1/2.5" | 1/2.8" | 1/1.7" | 1/1.8" | 1/2.8" | 1/1.8" | 1/2.5" | 1/3.0" | 2/3.0" | 1/1.8" | 1/2.0" |
| Diagonal | 184.6° | 105.0° | 98.2° | 113.0° | 108.0° | 101.0° | 160.0° | 153.6° | 136.0° | 69.5° | 50.7° | 43.0° | 20.2° | 16.5° | 14.5° | |
| Horizontal | 140.0° | 88.0° | 87.7° | 100.0° | 97.0° | 92.8° | 131.0° | 129.0° | 113.5° | 55.6° | 44.4° | 34.7° | 15.1° | 12.4° | 10.5° | |
| Vertical | 102.6° | 70.0° | 53.3° | 82.7° | 67.0° | 60.3° | 99.0° | 88.0° | 83.0° | 40.3° | 32.6° | 26.4° | - | - | - | |

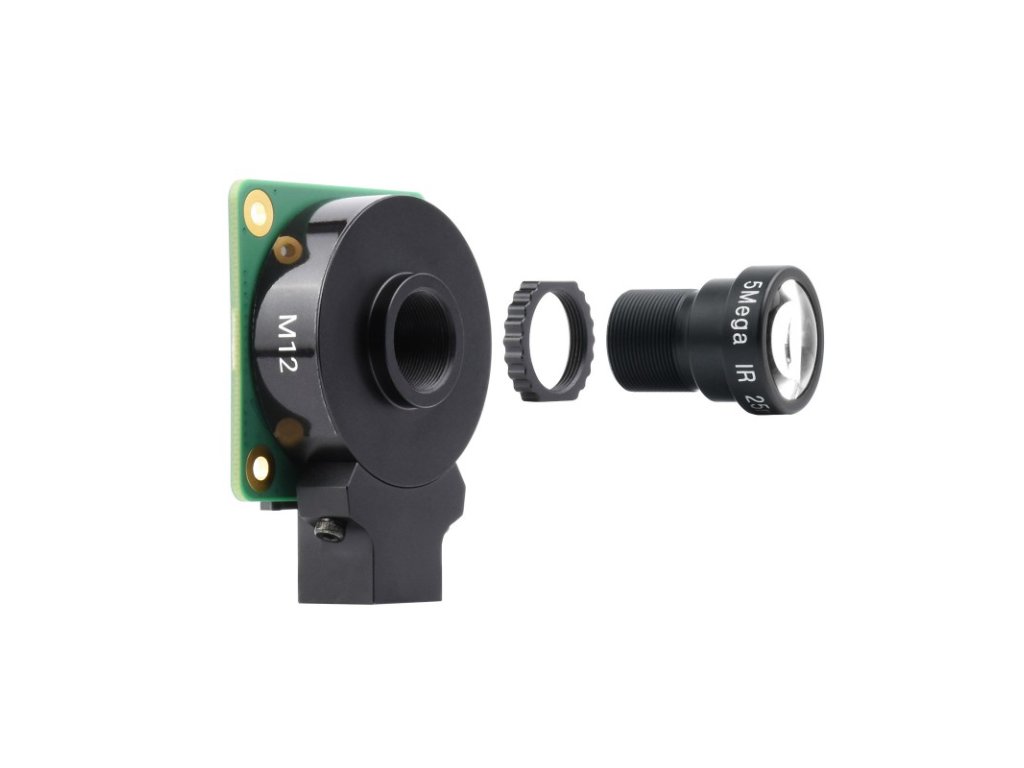

Mounting to the M12 Camera module
Suitable for Raspberry Pi High Quality Camera M12

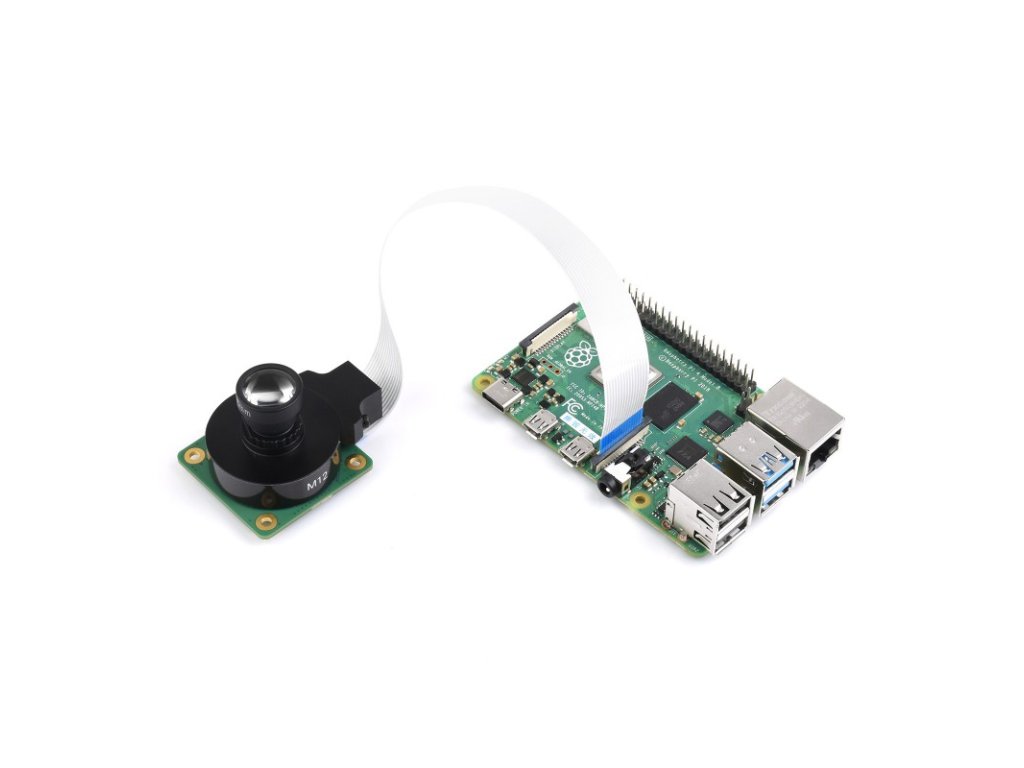

Working with Raspberry Pi
- Raspberry Pi boards, FFC cable and Raspberry Pi HQ Camera M12 in the photos are NOT included

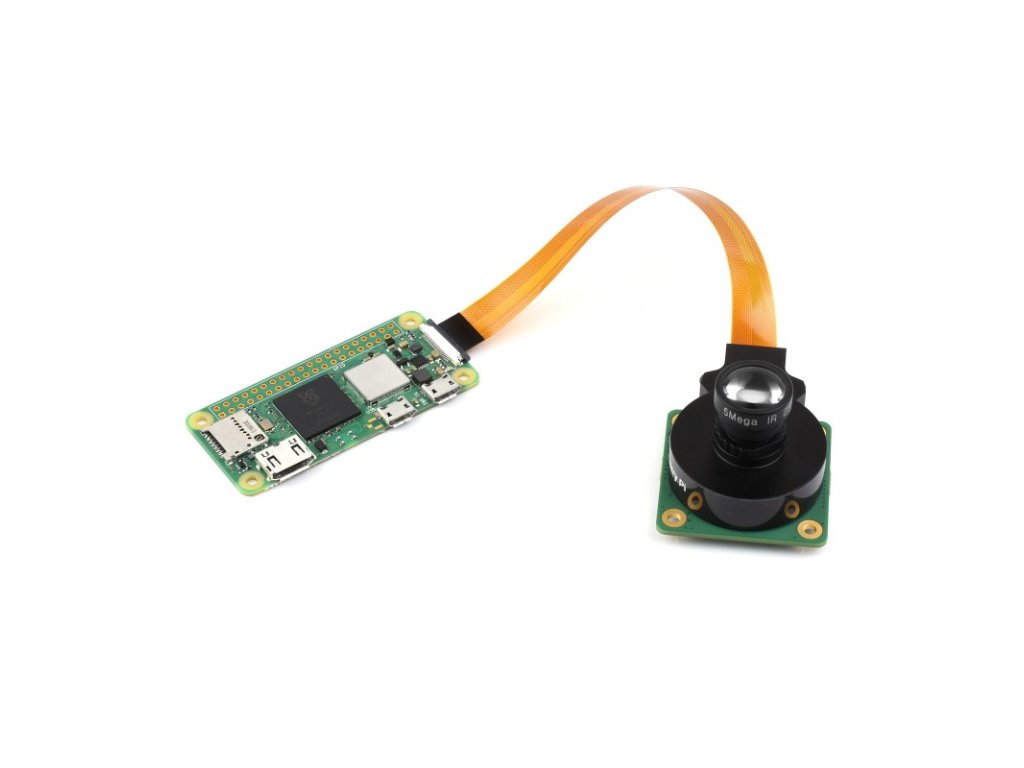

- To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

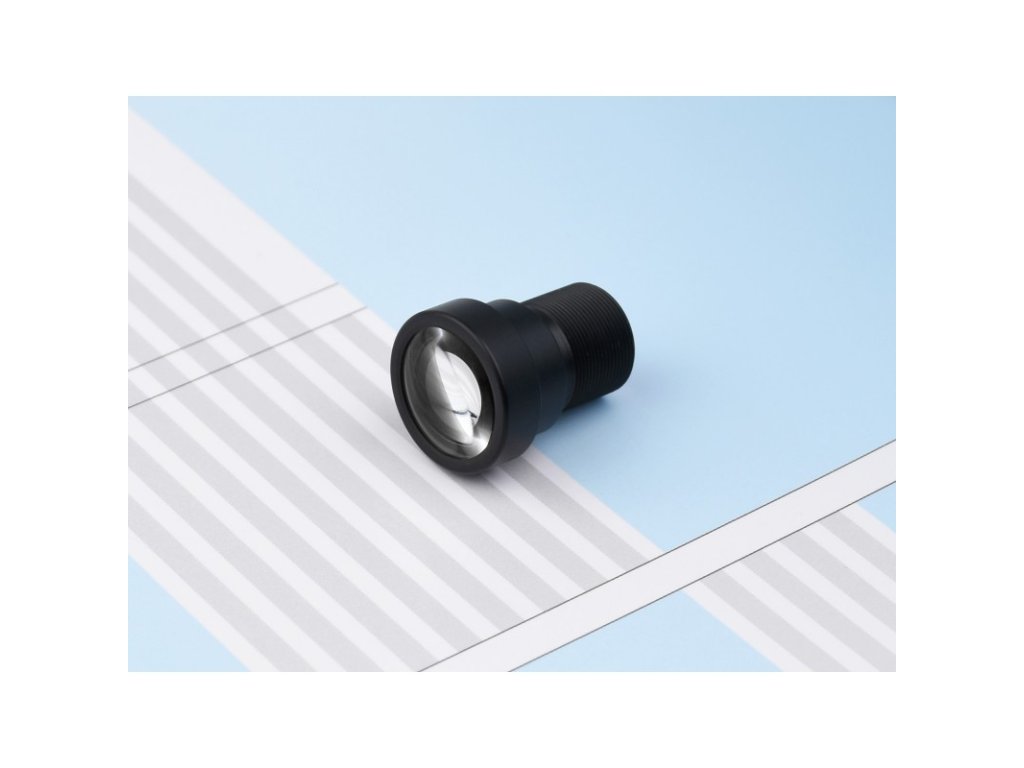

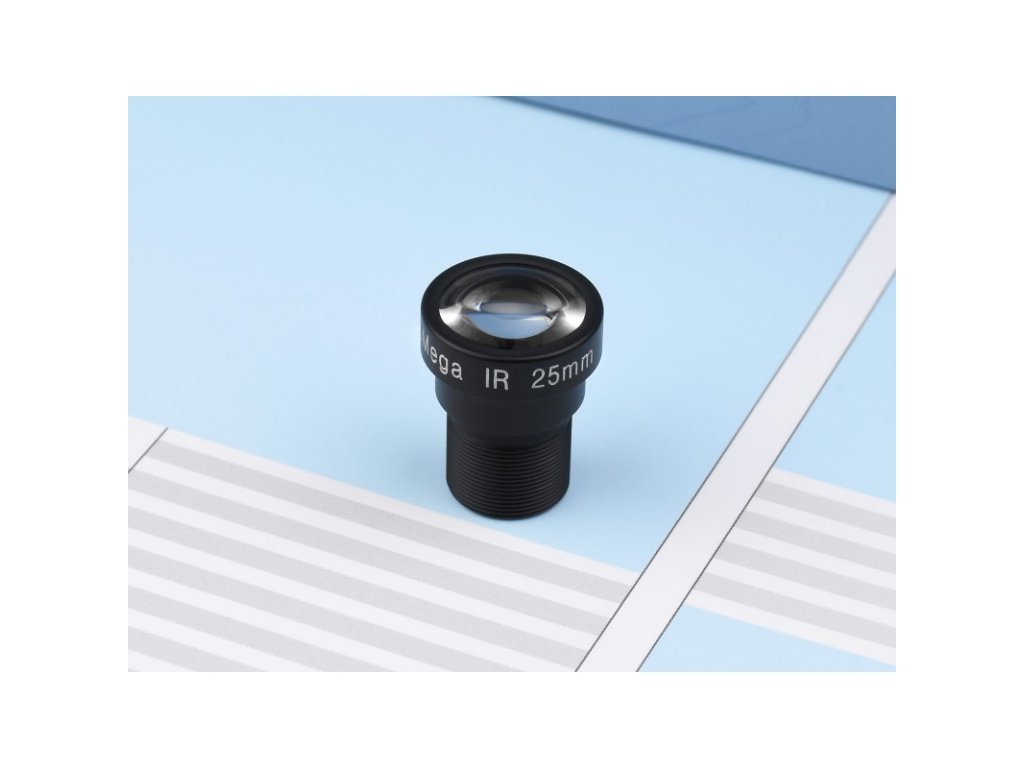

Product Show
Outline Dimensions
Package Content
Weight: 0.009 kg
WS0202505 ×1
