Mini Base Board (A) designed for Raspberry Pi Compute Module 5

Neohodnotené

Značka: Waveshare

Mini Base Board (A) designed for Raspberry Pi Compute Module 5

Mini Base Board for Compute Module 5

suitable for evaluating the Raspberry Pi CM5 or being integrated into end products

Powerful functions in a credit card sized body

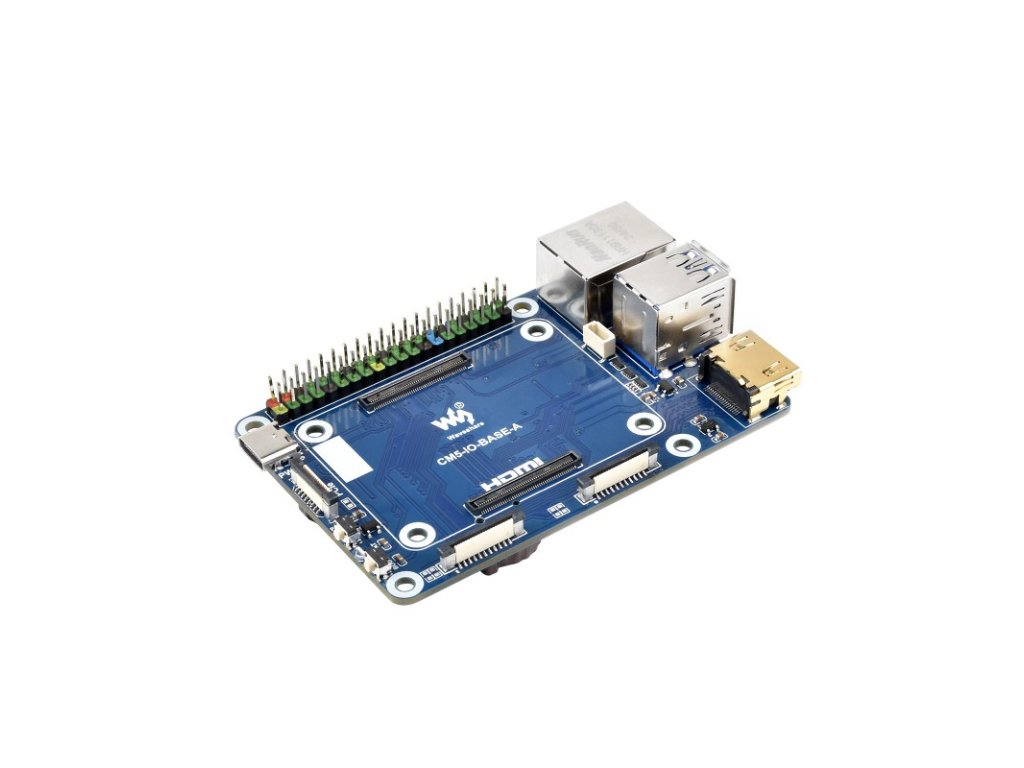

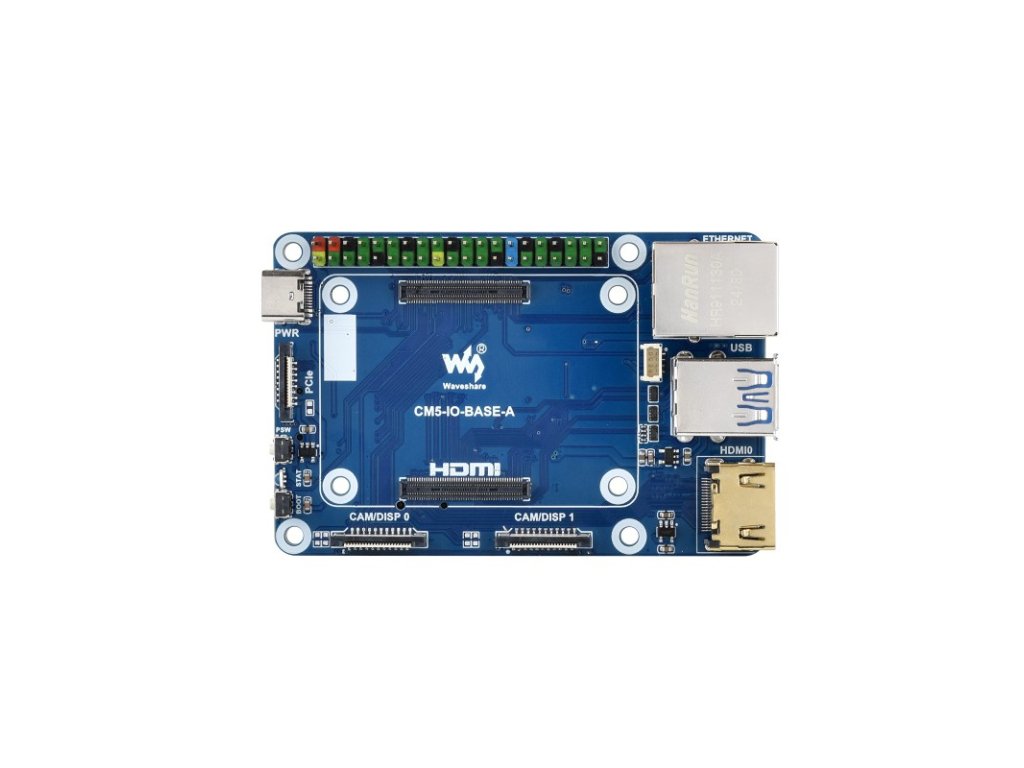

Mini Base Board (A) designed for CM 5, front view

Specifications

CM5 socket	suitable for all variants of Compute Module 5
Networking	Gigabit Ethernet RJ45 connector
Connector	16PIN PCIe (PCIe Gen2/3 x1)
Connector	Raspberry Pi 40PIN GPIO header
USB	USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
MIPI	4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
Video	HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
Storage	TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan header	5V, 4PIN JST-SH PWM connector
Power input	DC 5V 5A
Dimensions	85 × 56mm

What's the differences

CM5 Base Board	Interface count and specifications
CM5 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	MIPI	HDMI	RTC	Fan Header②	Power Input	Features
mini Base A		×1	√	16PIN PCIe	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size
PoE Base	√	×1	√	M.2 M	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
Note	① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite/eMMC series module

Compact, yet Complete

onboard multiple connectors, more convenient to use

Application example

for reference only, the CM5, displays, and cameras are NOT included.

Connecting to cooling fan

for reference only, the cooling fan is NOT included.

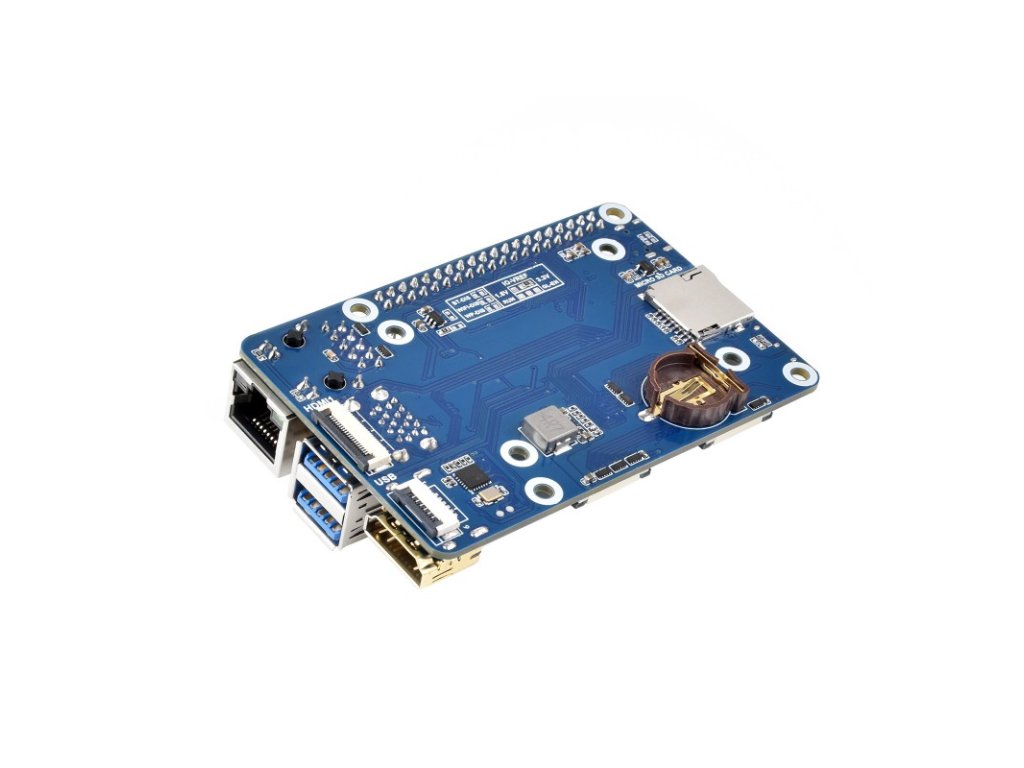

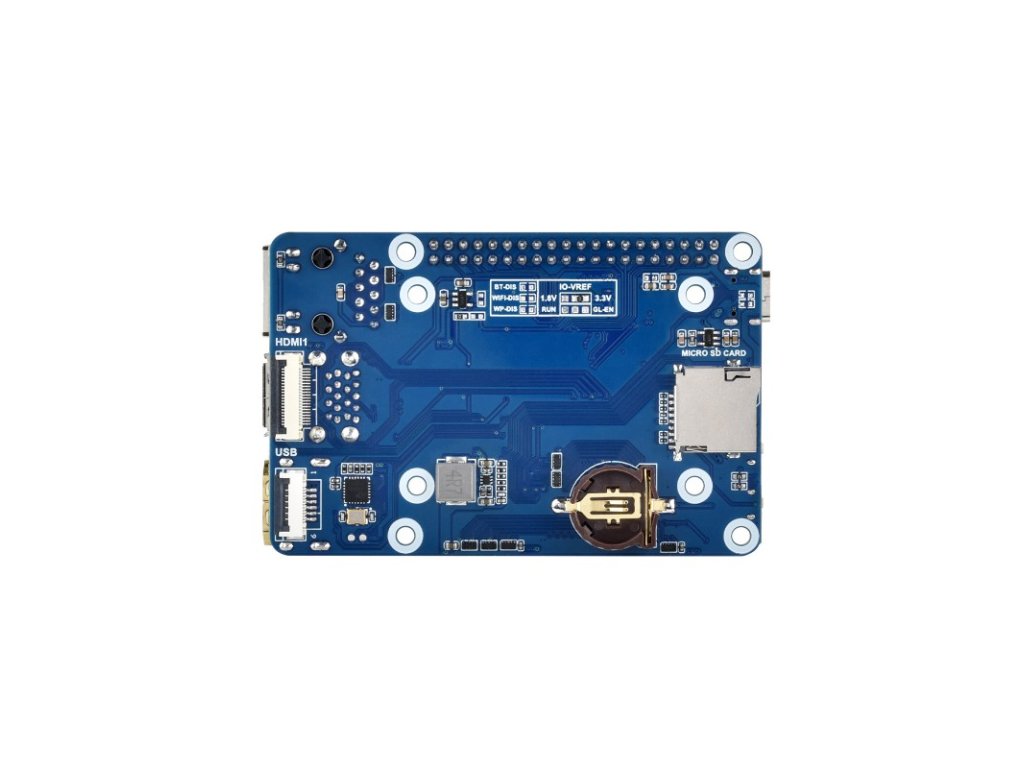

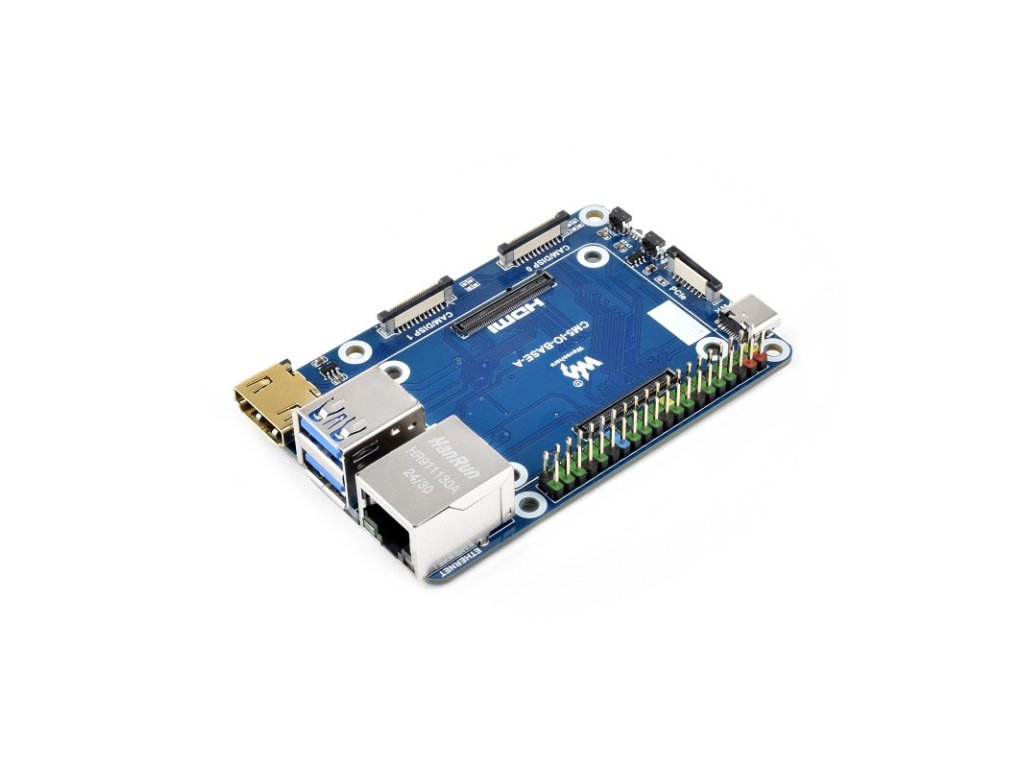

What's On Board

CM5 socket
suitable for all variants of Compute Module 5
40PIN GPIO header
for connecting various HAT / HAT+ modules
Power input/Programming
5V / 5A power supply, or used for eMMC burning
PCIe interface
for connecting various PCIe expansion boards
PSW Power button
Long press to force power off, short press to soft power off or on
STAT LED
Dual-color status LED
BOOT button
Press before powering on and release after powering on to enter the burning mode
Dual MIPI interfaces
for connecting DSI displays and CSI cameras
HDMI0 connector
HDMI0 port, supports 4K output
USB 3.2 Gen1 ports
2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation

RJ45 Gigabit Ethernet port
Supports 10M / 100M / 1000M network access
4PIN JST-SH PWM Fan header
for connecting cooling fan, 5V power supply
TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V
Other function pins
WIFI / BT hardware disable or write protection
HDMI1 FFC connector
HDMI1 port, supports 4K output, can be connected through an adapter
USB 2.0 FFC connector
can be connected through an adapter
RTC battery holder
Supports CR / ML1220 button cell
