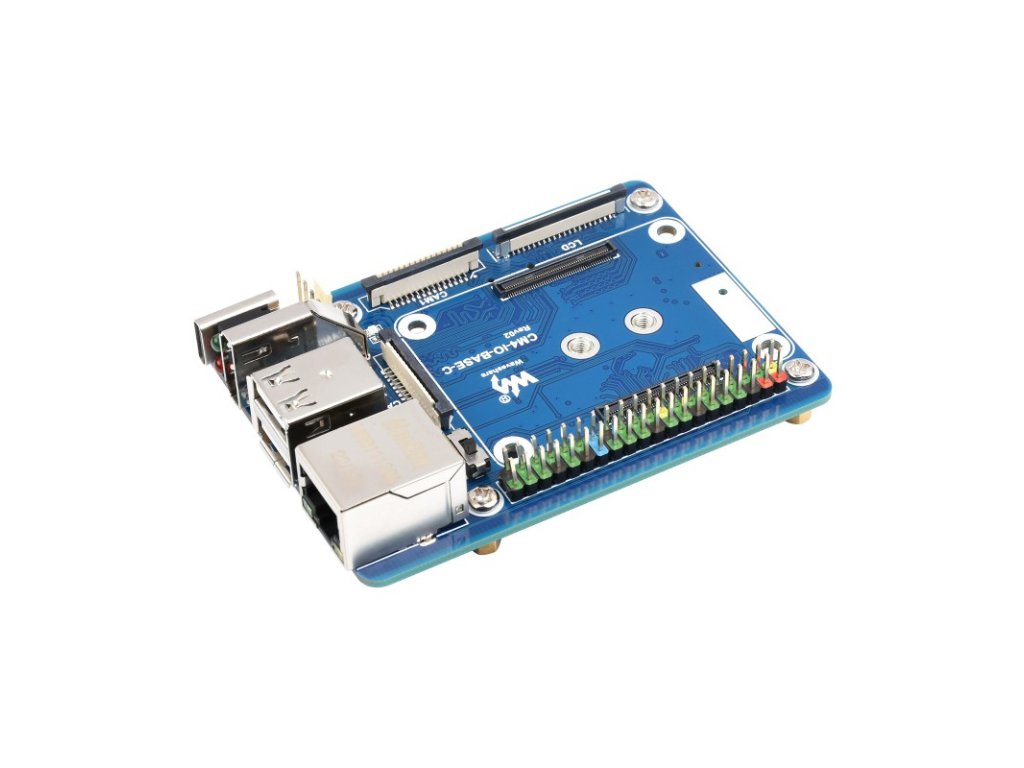

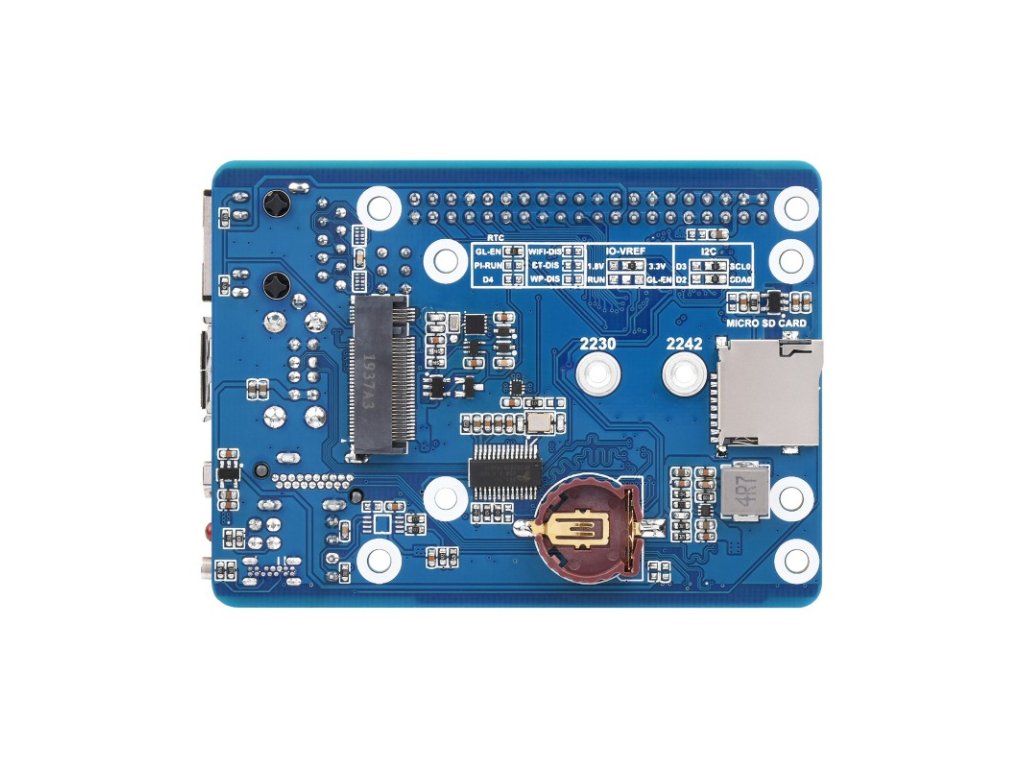

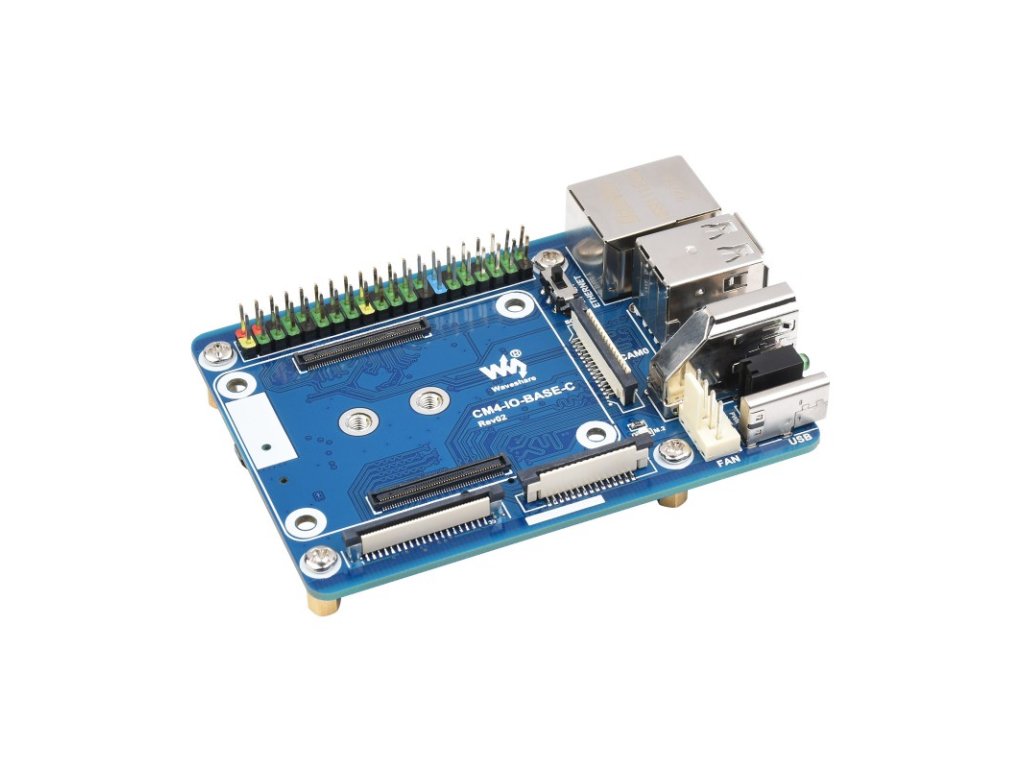

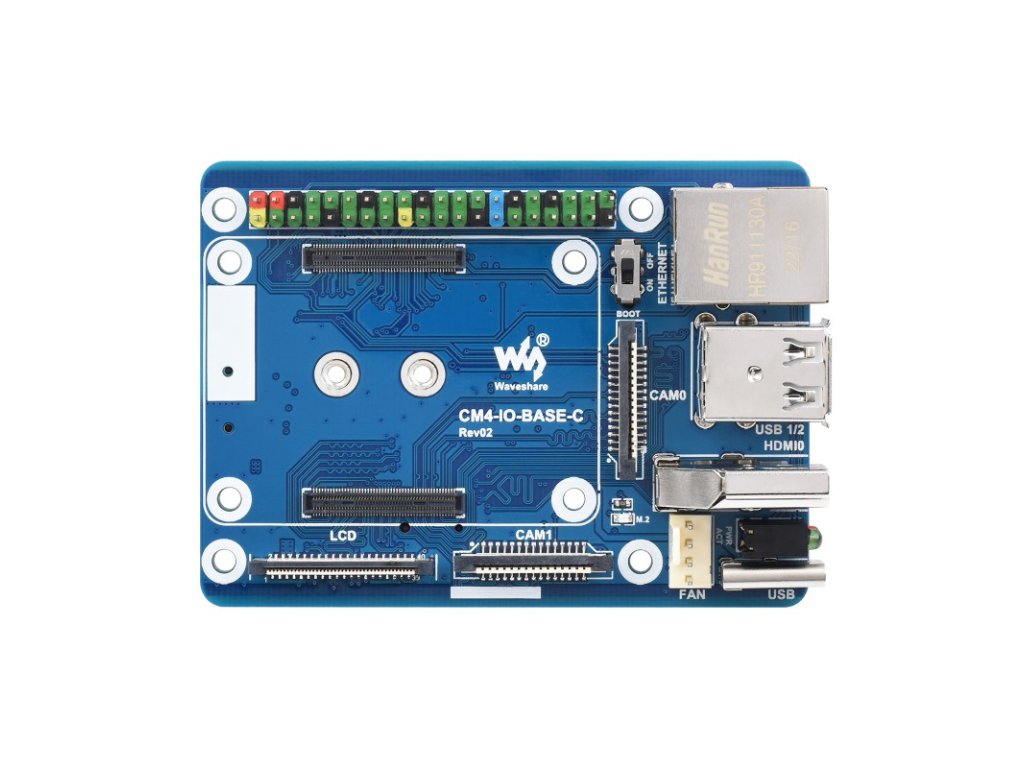

Mini Base Board (C) Designed for Raspberry Pi Compute Module 4
SKU: 23228
Mini Base Board (C) Designed for Raspberry Pi Compute Module 4
make it easy to build your own Raspberry Pi CM4 mini PC
CM4 socket | suitable for all variants of Compute Module 4 |
---|---|
Networking | Gigabit Ethernet RJ45 connector |
Connector | M.2 M KEY, supports communication modules or NVME Solid State Drives |
Raspberry Pi 40PIN GPIO header | |
USB | USB 2.0 Type A × 2 |
Display | LCD port (40pin 0.5mm FPC connector) |
Camera | MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector) |
Video | HDMI port, supports 4K 30fps output |
RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
Storage | TF card socket for Compute Module 4 Lite (without eMMC) variants |
Fan header | allows speed adjustment, 5V |
Power input | 5V |
Dimensions | 85 × 56mm |
CM4 Base Board | Interface count and specifications | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PoE | Gigabit ETH |
40PIN GPIO |
PCIe | USB① | DSI | HDMI | CSI | RTC | Fan Header |
Power Input |
Features | |
NANO A |
√ | 2.0×1 | ×1 | 5V | CM4 sized | |||||||
NANO B |
×1 | √ | 2.0×1 | ×1 | ×1 | ×1 | 5V | CM4 sized | ||||
NANO C |
√ | 2.0×1 | ×1 | ×1 | ×1 | 5V | Onboard Camera | |||||
mini Base A |
×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | 5V | 5V | mini size | ||
mini Base B |
×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5V | 5V | mini size | |
mini Base C |
×1 | √ | M.2 M | 2.0×2 | ×1 | ×2 | √ | 5V | 5V | Dedicated 40PIN LCD Connector | ||
Touch screen |
×1 | M.2 M | 2.0×4 | ×1 | ×1 | 5V | IPS screen | |||||
Mini Dual Gigabit |
×2 | √ | 2.0×1 | 5V SH1.0 | 5V | dual ETH | ||||||
Binocular camera |
×1 | √ | M.2 M | 2.0×4 | ×2 | 5V | dual 8MP cameras |
|||||
4CH RS485 |
×1 | 2.0×2 | ×1 | ×2 | ×1 | 5V | 7-36V | dual ETH | ||||
WIFI6 DUAL ETH |
×1 | √ | M.2 E | 2.0×3 | ×1 | ×2 | ×2 | ×1 | 5/12V | 7-36V | WIFI6 dual ETH | |
Dual Gigabit ETH |
×2 | √ | 3.0×3 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | |||
IoT Dual Gigabit ETH |
×2 | √ | 3.0×2 | ×1 | ×2 | ×2 | √ | 5/12V | 5V | 5G/4G support | ||
IoT Base |
√ | ×1 | Gen2×1 | 2.0×2 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | 5G/4G support RS232 RS485 ADC |
|
PoE Base (B) |
√ | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 5V | RS232 RS485 |
PoE UPS Base |
√ | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | UPS |
PoE Base |
√ | ×1 | √ | 3.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | ||
Raspberry Pi official |
② | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 12V | 12V | |
Wireless base |
×1 | M.2 B / Mini-PCIe |
2.0×3 | ×1 | ×1 | √ | 5/12V | 5V or 7-36V |
5G/4G support RS485 CAN rail-mount |
|||
UPS Wireless base |
×1 | M.2 B | 2.0×3 | ×1 | ×1 | √ | 5/12V | 5V or 7-36V |
With UPS 5G/4G support RS485 CAN rail-mount |
|||
NAS Mini Computer |
×2 | √ | M.2 M×2/ Mini-PCIe |
3.0×2 | ×2 | ×2 | √ | 5V | dual M.2 M KEY slots | |||
5″ touch screen |
② | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | √ | 5/12V | 5V | ||
7″ all-in-one |
×1 | M.2 M | 2.0×4 | used | ×1 | used | √ | 5/12V used |
7-36V | touch screen camera speaker |
||
13.3″ all-in-one |
×1 | 2.0×2 | 12V | HD touch screen | ||||||||
13.3″ Magic Mirror |
×1 |
