    Mini-Computer Advanced Version, Designed for Raspberry Pi Compute Module 4

    Mini Base Board/Mini-Computer Advanced Version, Designed for Raspberry Pi Compute Module 4
    Mini Base Board For Compute Module 4 (Advanced Version)
    Designed for Raspberry Pi Compute Module 4

    Waveshare CM4-IO-BASE-C (Advanced Ver.) inside, fast and easy to build a mini-computer



    Version Options

    * Please refer to the part list for detailed package content

    MINI BASE C Advanced Ver



    Mini-Computer Kit

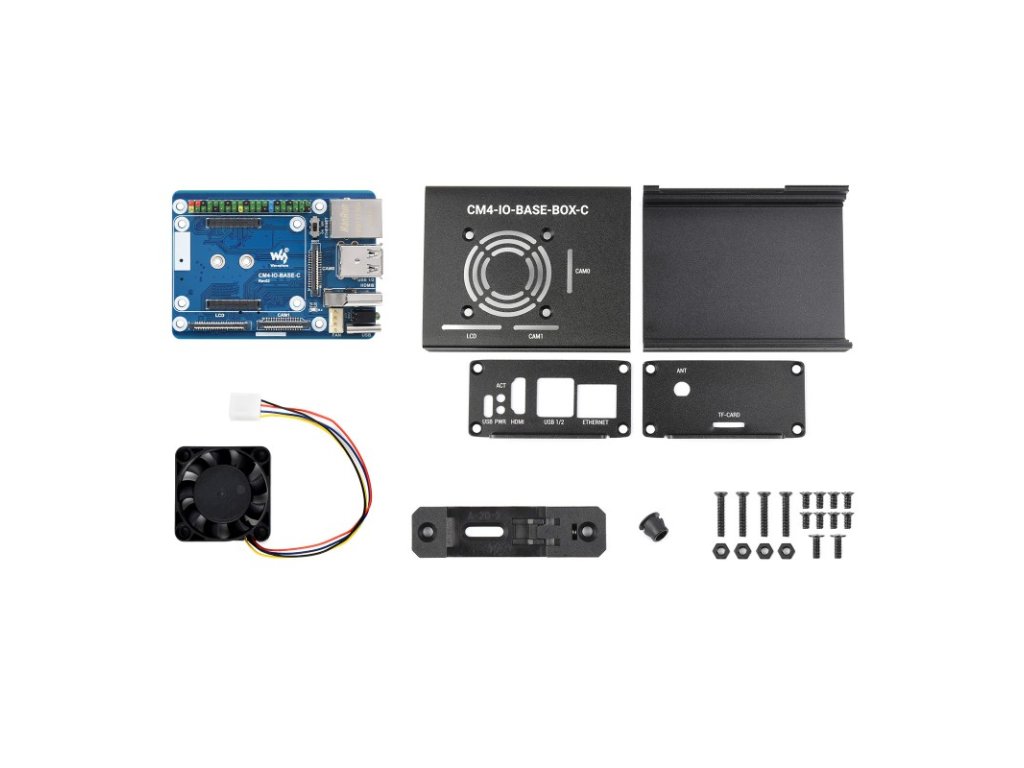

    In addition to the CM4-IO-BASE-C Base Board, it is equipped with Aluminum Alloy case, power supply and fan, etc.

    Dedicated 40PIN LCD Connector

    One connection For Display And Touch, Support 70H-1024600-IPS-A Series Display
    Easier and Faster To Be Integrated into Applications

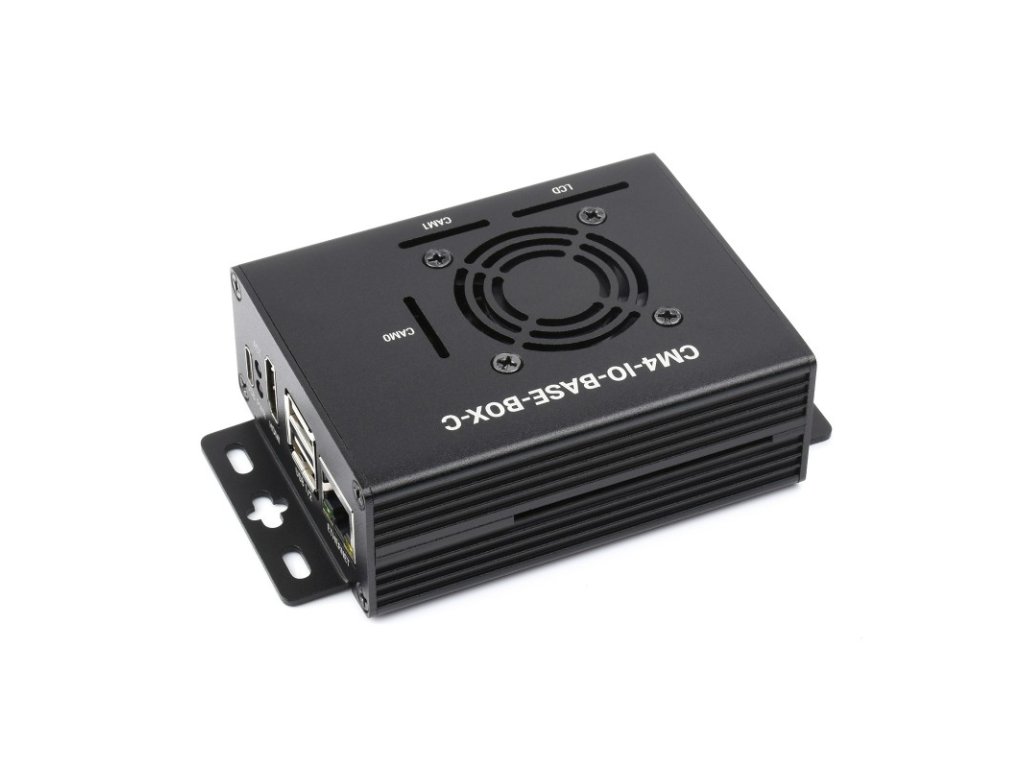

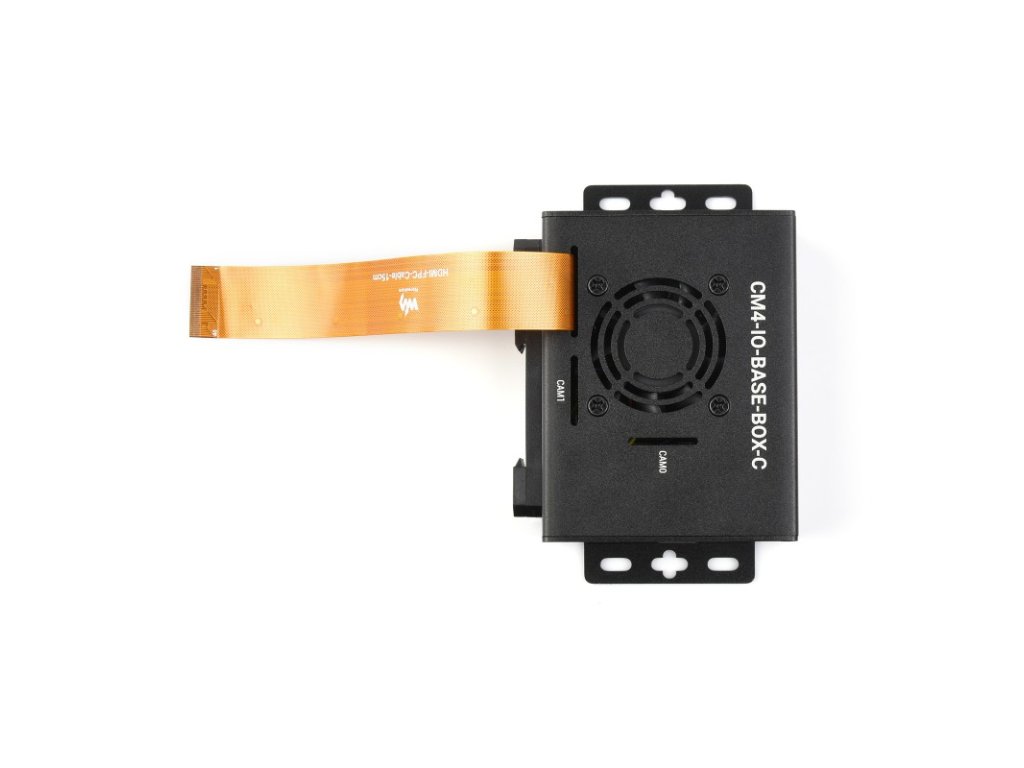

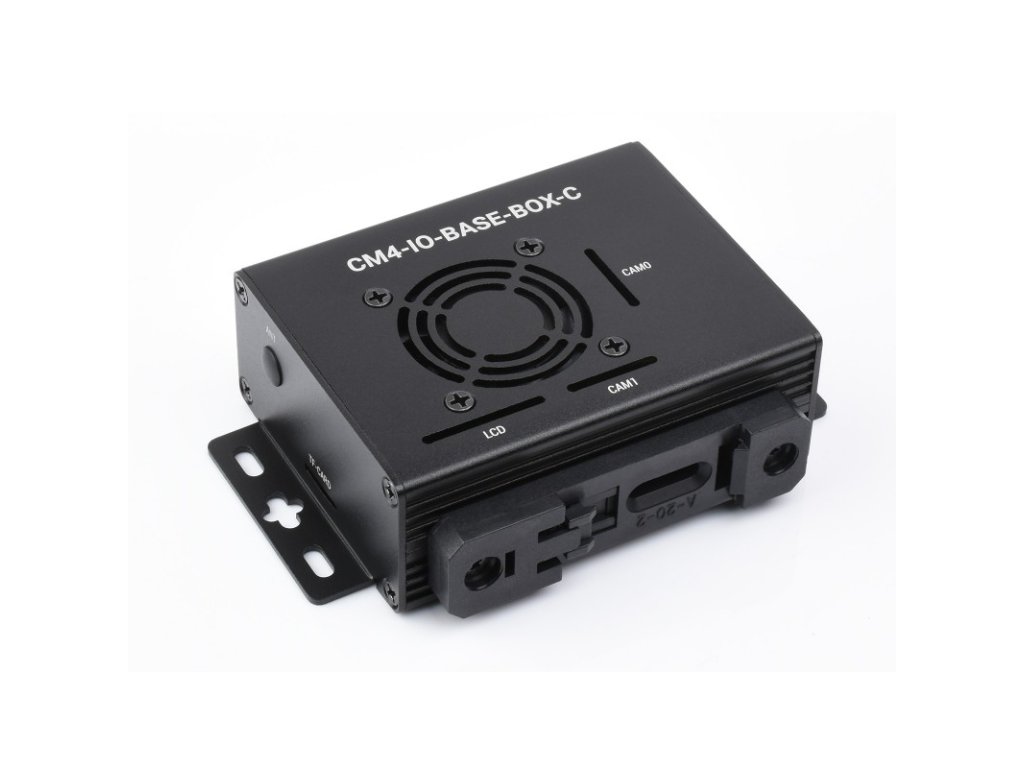

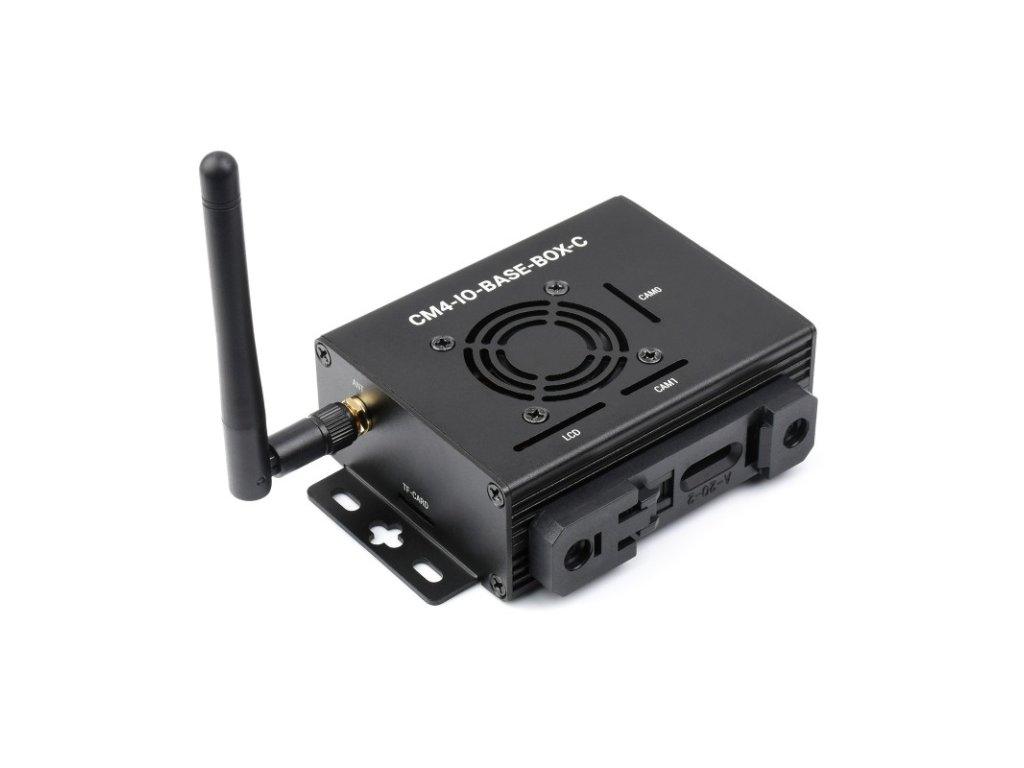

    Optional Black Metal Case

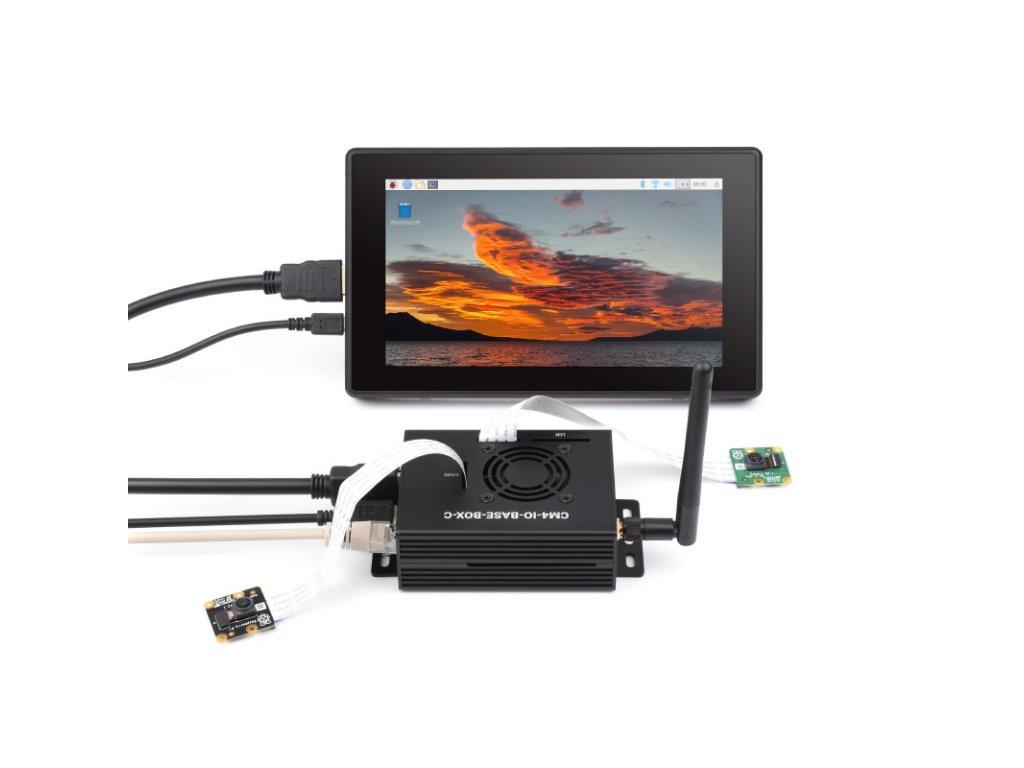

    make it easy to build your own Raspberry Pi CM4 mini PC

    for reference only, CM4 is NOT included.
    Specifications
    CM4 socket suitable for all variants of Compute Module 4
    Networking Gigabit Ethernet RJ45 connector
    Connector M.2 M KEY, supports communication modules or NVME Solid State Drives
    Raspberry Pi 40PIN GPIO header
    USB USB 2.0 Type A × 2
    Display LCD port (40pin 0.5mm FPC connector)
    Camera MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector)
    Video HDMI port, supports 4K 30fps output
    RTC Real-time clock with battery socket and ability to wake Compute Module 4
    Storage TF card socket for Compute Module 4 Lite (without eMMC) variants
    Fan header allows speed adjustment, 5V
    Power input 5V
    Dimensions 85 × 56mm
    What's the differences
    CM4 Base Board Interface count and specifications
    PoE Gigabit
    ETH    		 40PIN
    GPIO    		 PCIe USB① DSI HDMI CSI RTC Fan
    Header    		 Power
    Input    		 Features

    NANO A    		     √   2.0×1     ×1     5V CM4 sized

    NANO B    		   ×1 √   2.0×1 ×1 ×1 ×1     5V CM4 sized

    NANO C    		     √   2.0×1 ×1 ×1 ×1     5V Onboard Camera

    mini Base A    		   ×1 √ M.2 M 2.0×4 ×1 ×2 ×2   5V 5V mini size

    mini Base B    		   ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5V 5V mini size

    mini Base C    		   ×1 √ M.2 M 2.0×2   ×1 ×2 √ 5V 5V Dedicated 40PIN LCD Connector

    Touch screen    		   ×1   M.2 M 2.0×4   ×1 ×1     5V IPS screen

    Mini Dual Gigabit    		   ×2 √   2.0×1         5V SH1.0 5V dual ETH

    Binocular camera    		   ×1 √ M.2 M 2.0×4   ×2       5V dual 8MP
    cameras

    4CH RS485    		   ×1     2.0×2   ×1 ×2 ×1 5V 7-36V dual ETH

    WIFI6 DUAL ETH    		   ×1 √ M.2 E 2.0×3 ×1 ×2 ×2 ×1 5/12V 7-36V WIFI6 dual ETH

    Dual Gigabit ETH    		   ×2 √   3.0×3 ×1 ×2 ×2 √ 5/12V 7-36V

    IoT Dual Gigabit ETH    		   ×2 √   3.0×2 ×1 ×2 ×2 √ 5/12V 5V 5G/4G support

    IoT Base    		 √ ×1   Gen2×1 2.0×2 ×2 ×2 ×2 √ 5/12V 7-36V 5G/4G support
    RS232
    RS485
    ADC

    PoE Base (B)    		 √ ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 5/12V 5V RS232
    RS485

    PoE UPS Base    		 √ ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5/12V 7-36V UPS

    PoE Base    		 √ ×1 √   3.0×4 ×2 ×2 ×2 √ 5/12V 7-36V

    Raspberry Pi official    		 ② ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 12V 12V

    Wireless base    		   ×1   M.2 B /
    Mini-PCIe    		 2.0×3   ×1 ×1 √ 5/12V 5V or
    7-36V    		 5G/4G support
    RS485
    CAN
    rail-mount

    UPS Wireless base    		   ×1   M.2 B 2.0×3   ×1 ×1 √ 5/12V 5V or
    7-36V    		 With UPS
    5G/4G support
    RS485
    CAN
    rail-mount

    NAS Mini Computer    		   ×2 √ M.2 M×2/
    Mini-PCIe    		 3.0×2   ×2 ×2 √   5V dual M.2 M KEY slots

    5″ touch screen    		 ② ×1 √ M.2 M 2.0×4   ×1 ×2 √ 5/12V 5V

    7″ all-in-one    		   ×1   M.2 M 2.0×4 used ×1 used √ 5/12V
    used    		 7-36V touch screen
    camera
    speaker

    13.3″ all-in-one    		   ×1     2.0×2           12V HD touch screen

    13.3″ Magic Mirror    		   ×1
