Multi-functional All-in-one Mini-Computer Kit Designed for Raspberry Pi 5 (NOT included)

Aluminum Alloy Case , Options for Inside PCIe adapter board

Version : PCIe to M.2 interface

SKU: 27833

Dostupnosť	Skladom (3 ks)
Môžeme doručiť do:	25.11.2024
Možnosti doručenia
Kód:	23559

28,67 € / ks 23,89 € bez DPH

Multi-functional All-in-one Mini-Computer Kit Designed for Raspberry Pi 5 PCIe to M.2 interface

Neohodnotené

Značka: Waveshare

Multi-functional All-in-one Mini-Computer Kit Designed for Raspberry Pi 5 PCIe to M.2 interface

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

Multi-functional All-in-one Mini-Computer Kit Designed for Raspberry Pi 5 (NOT included), Aluminum Alloy Case, Options for Inside PCIe adapter board

Mini-Computer Kit for Raspberry Pi 5

Designed For Raspberry Pi 5

Larger internal space, onboard rich interfaces, with strong expandability
Fast And Easy To Build Your Own Raspberry Pi 5 Mini-Computer

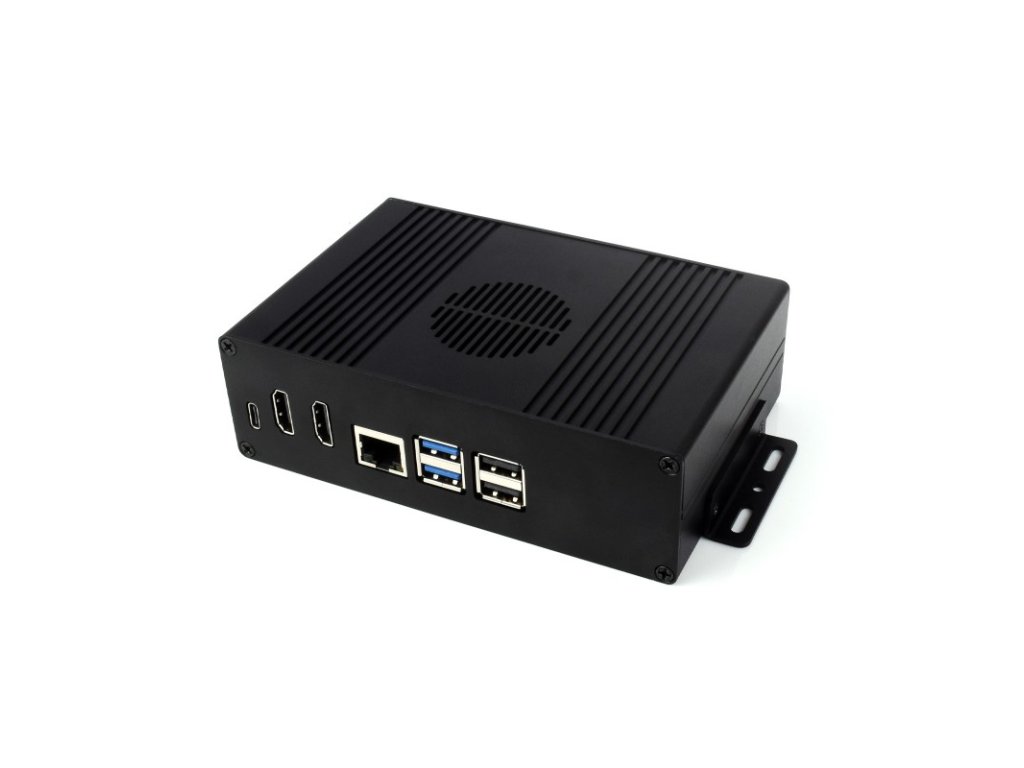

Mini-Computer Kit for Raspberry Pi 5, front view

Version Options

Mini-Computer Kit for Raspberry Pi 5, Pi5 Module BOX-A

Pi5 Module BOX-A
Supports PCIe to Gigabit Ethernet port

Mini-Computer Kit for Raspberry Pi 5, Pi5 Module BOX-B

Pi5 Module BOX-B
Supports PCIe to 4-ch USB3.2 Gen1 ports

Mini-Computer Kit for Raspberry Pi 5, Pi5 Module BOX-C

Pi5 Module BOX-C
Supports PCIe to M.2 interface

* the Raspberry Pi 5 is NOT included, please purchase separately if needed.

What’s Onboard

Pi5 Module BOX-A: supports PCIe Extending to Gigabit Ethernet port

Pi5 Module BOX-B: Supports PCIe Extending to 4-ch USB3.2 Gen1 ports

Pi5 Module BOX-C: Supports PCIe Extending to M.2 interface

Larger Space, strong Expandability

Larger internal space, supports connecting to various HATs such as PoE HAT, etc. also with space left for cable management

Mini-Computer Kit for Raspberry Pi 5, larger internal space

comes with Pi5 HDMI and Type-C adapter

adapting Type-C, dual HDMI Female Ports, and screw terminal For Easier Connection with peripherals, Supports Two Power Supply connection methods from the front side or the back side

Dual 4K Outputs

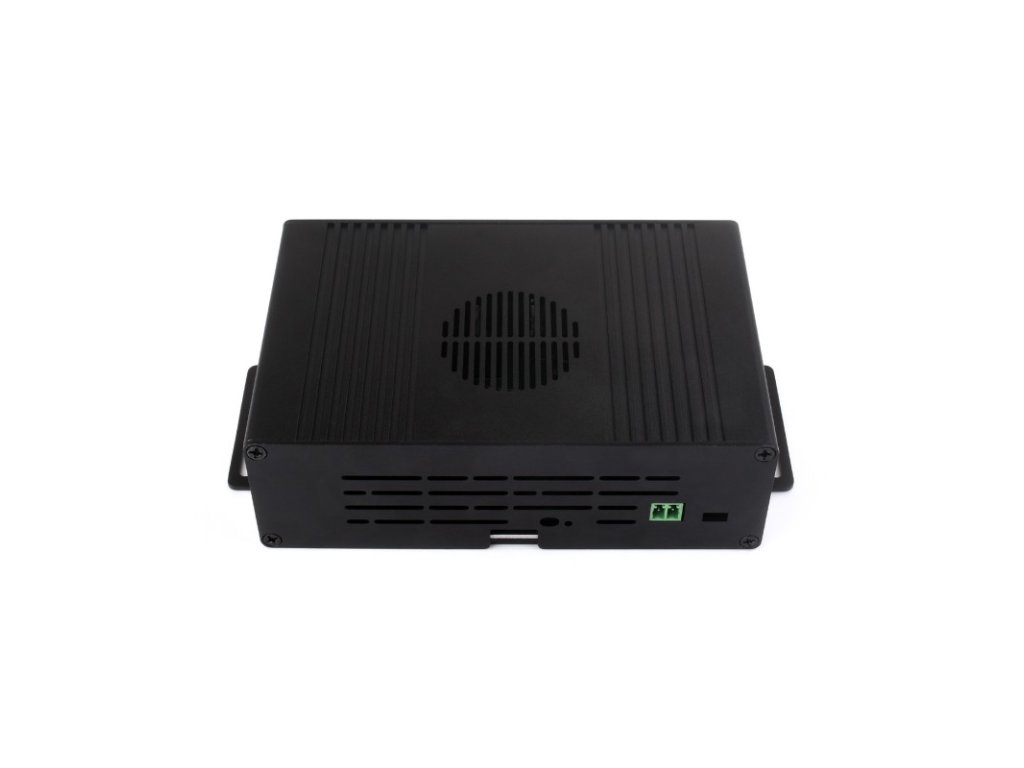

Reserved Airflow Vents for efficient heat dissipation

supports installing cooling fan for better heat dissipation

Mini-Computer Kit for Raspberry Pi 5, reserved airflow vents

* for reference only, the cooling fan is NOT included.

How to Install

Prepare the screws as shown above

Mini-Computer Kit for Raspberry Pi 5, how to install step 1

1. Connect the HDMI adapter board to the Raspberry Pi 5 first, and mounting them on the white aluminum alloy base plate with 7x ① screws.

Mini-Computer Kit for Raspberry Pi 5, how to install step 2

2. Then install the PCIe expansion board according to the version you purchased (here we take the PCIe to Gigabit Ethernet adapter as an example) on the white aluminum alloy base plate with 2x ① screws, and connect the power cable and UART debug cable as shown. Set it aside for later use.

Mini-Computer Kit for Raspberry Pi 5, how to install step 3

3. Fix the two wall-mount brackets with 2x ② screws and the back panel with 2x ③ screws to the case. And then install the silicone button to the position as shown.

Mini-Computer Kit for Raspberry Pi 5, how to install step 4

4. Slide the Raspberry Pi 5, the adapter boards and the base plate assembled in step 2 horizontally into the bottom rail of the case. Be careful not to dislodge the silicone button.
