NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4 (NOT included), Network Storage, Dual Solid State Drive slots

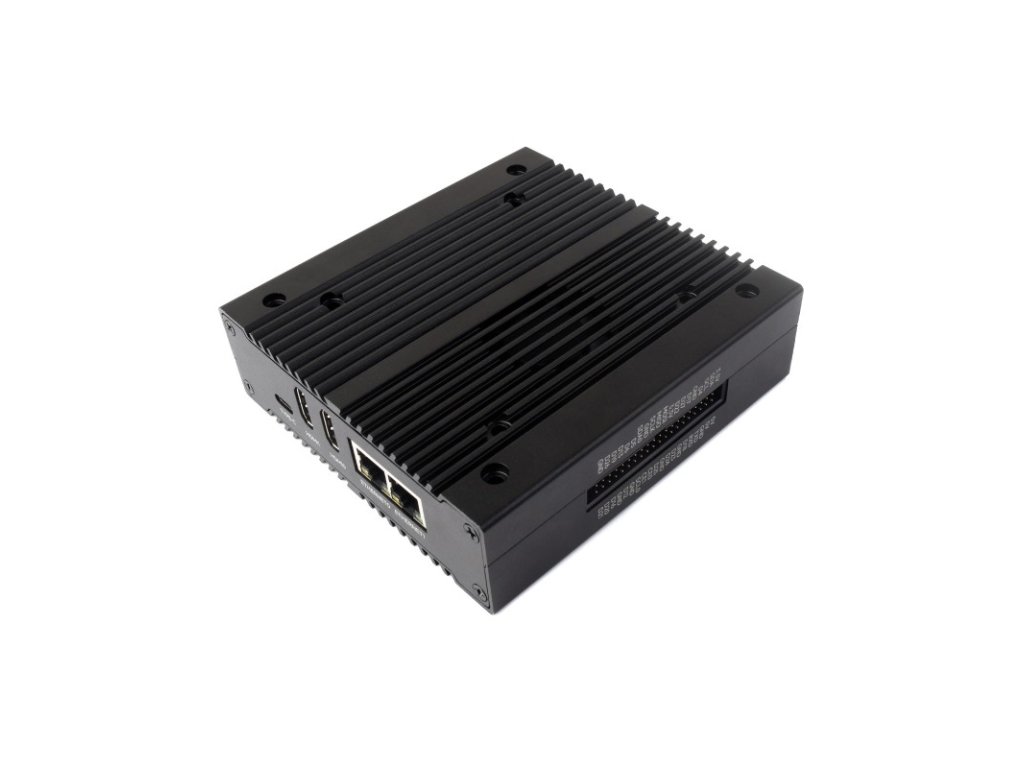

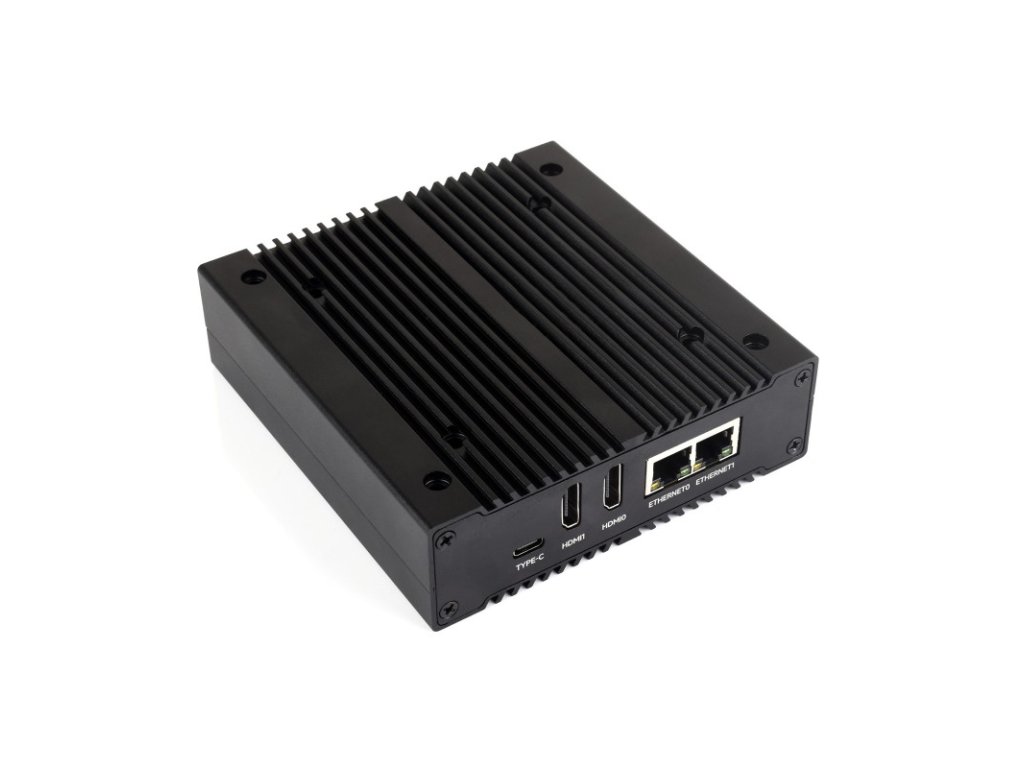

NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4 (NOT included), Network Storage, Dual Solid State Drive slots, Dual Gigabit Ethernet ports, 4G Network, Metal Case

CM4 NAS Mini-Computer Kit

Designed for Raspberry Pi Compute Module 4

Network Storage USB 3.2 Dual Gigabit Ethernet ports 4G

* the Compute Module 4 is NOT included.

Features At A Glance

All-in-one Mini-Computer, mainly designed for home, small home office, etc.
Provides a simple and easy-to-use solution, no expert knowledge of networking and storage systems required

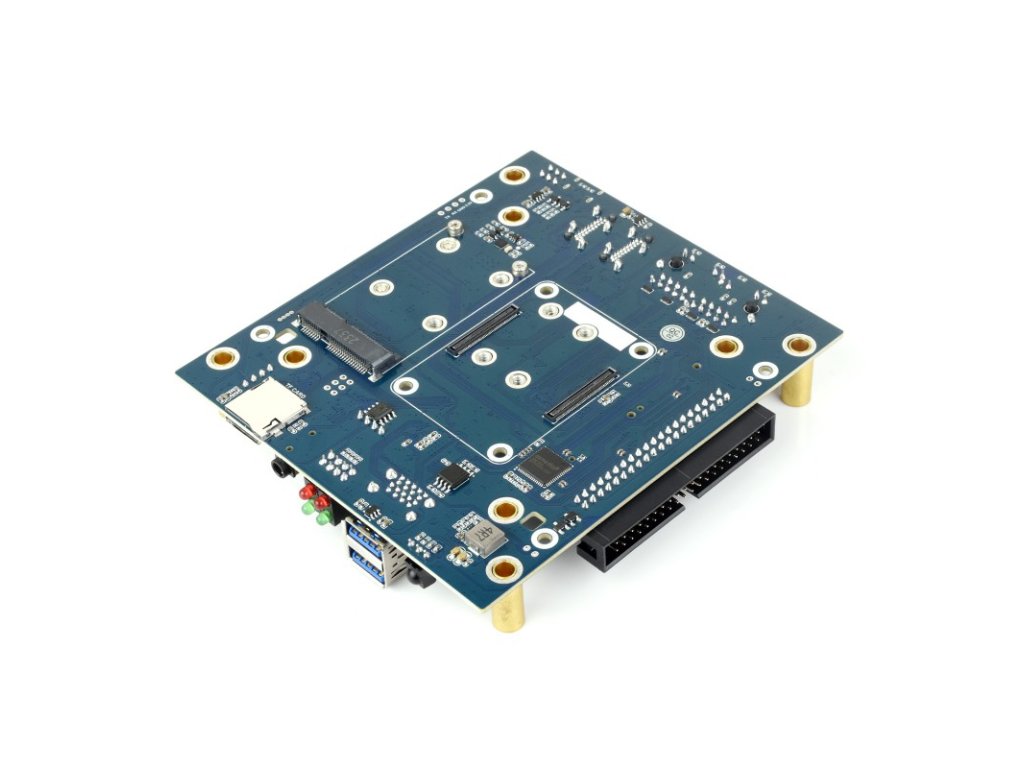

Onboard 2× M.2 M KEY slots for installing NVME Solid State Drives
Onboard MINI PCIE connector for installing 4G module
2× HDMI 4K output interfaces

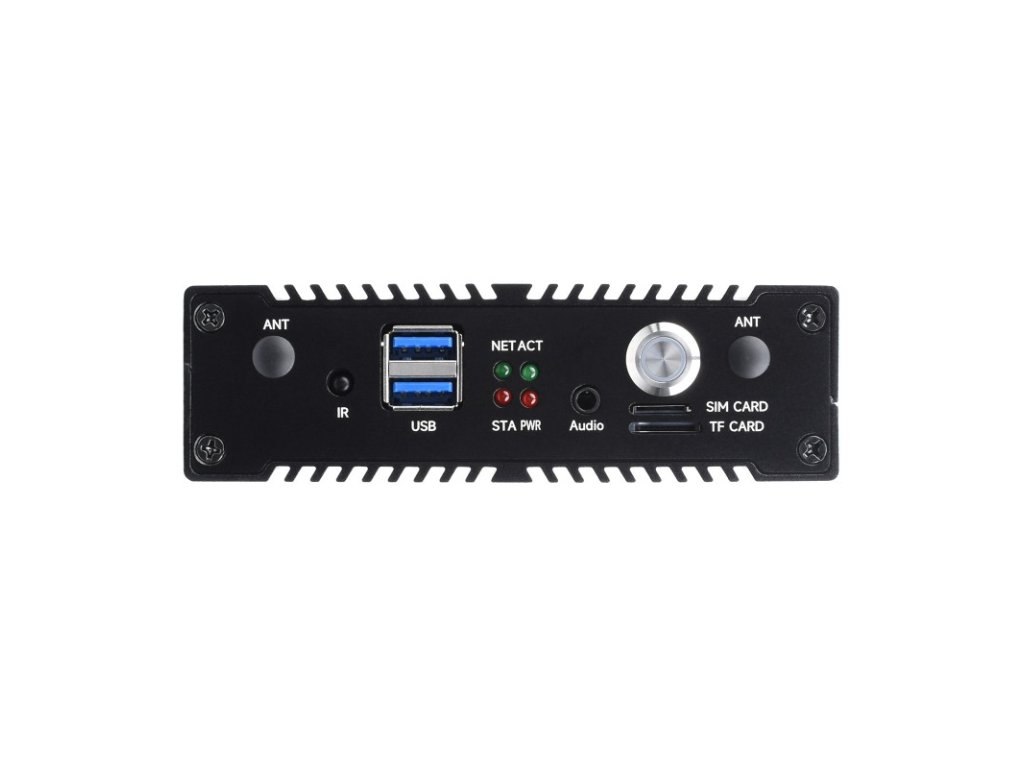

Onboard USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.

Specifications

CM4 socket	Suitable for all variants of Compute Module 4

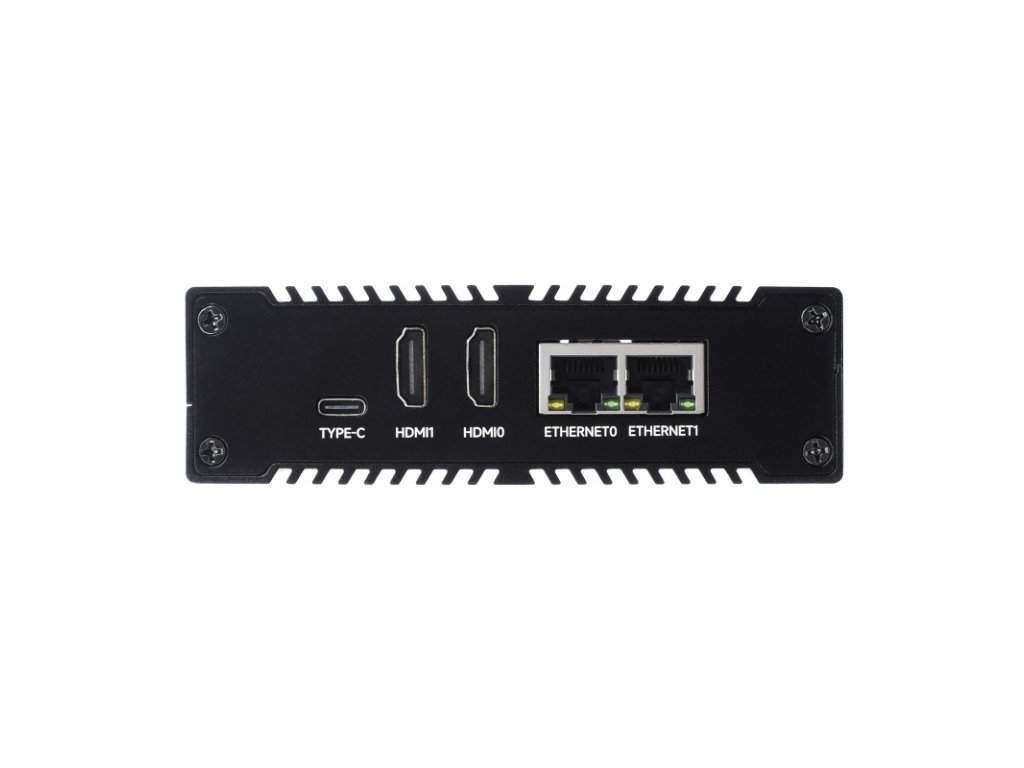

NETWORKING	Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1)
	MINI PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol)
	Nano-SIM card slot, supports standard Nano-SIM card for 4G/3G/2G Internet access

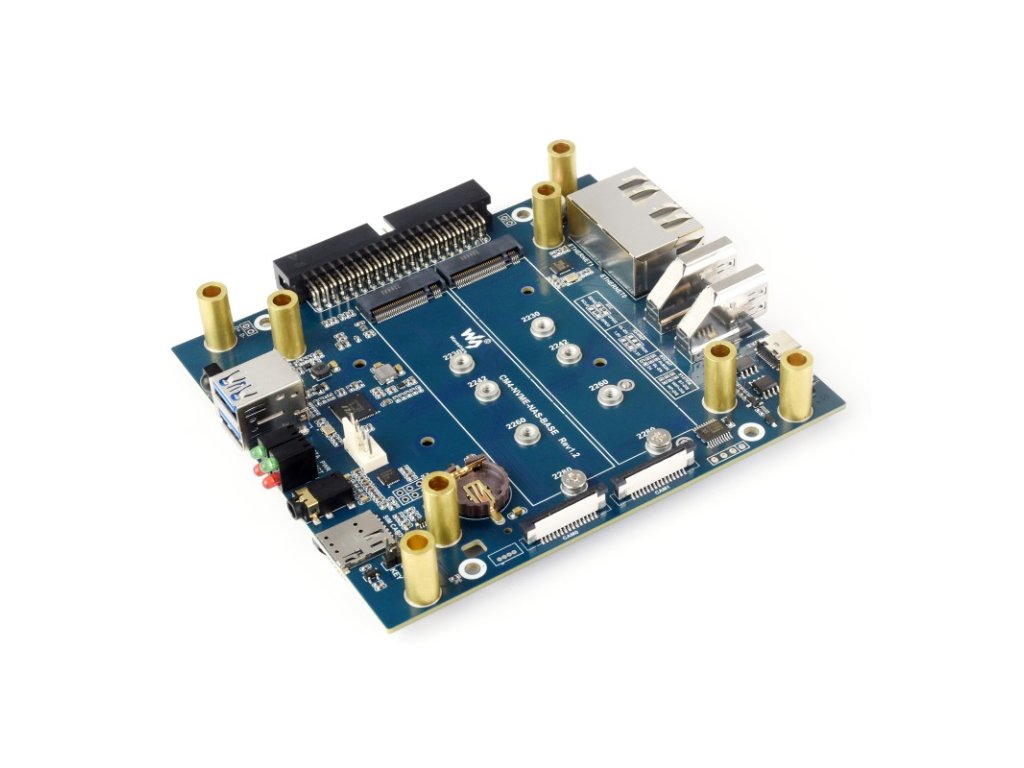

M.2	Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)
USB	USB 3.2 Gen1 (5Gbps) port× 2
CSI camera	MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI	HDMI × 2, supports 4K 30fps output
Audio	3.5mm earphone/mic jack
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
TF card slot	TF card socket for Compute Module 4 Lite (without eMMC) variants
Power input	Type-C (5V 4A)
Dimensions	128 × 122 × 36mm

Selection guide

CM4 Base Board	Interface count and specifications
CM4 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G support RS232 RS485 ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232 RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
