Orange Pi Zero LTS 512MB Computer Development board

Orange Pi Zero LTS 512MB Computer Development board

Hardware specification :
CPU H3 Quad-core Cortex-A7 H.265/HEVC 1080P.
GPU • Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0
Memory (SDRAM) 512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version)
Onboard Storage TF card (Max. 32GB)/ 2MB Spi Flash
Onboard Network 10/100M Ethernet RJ45 POE is default off.
Onboard WiFi XR819, IEEE 802.11 b/g/n
Audio Input MIC(via 13 pins external board )
Video Outputs AV OUT(via 13 pins external board)
Power Source USB OTG can supply power
Low-level peripherals • 26 Pins Header,
• 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
LED Power led & Status led
Supported OS Android, Lubuntu, Debian

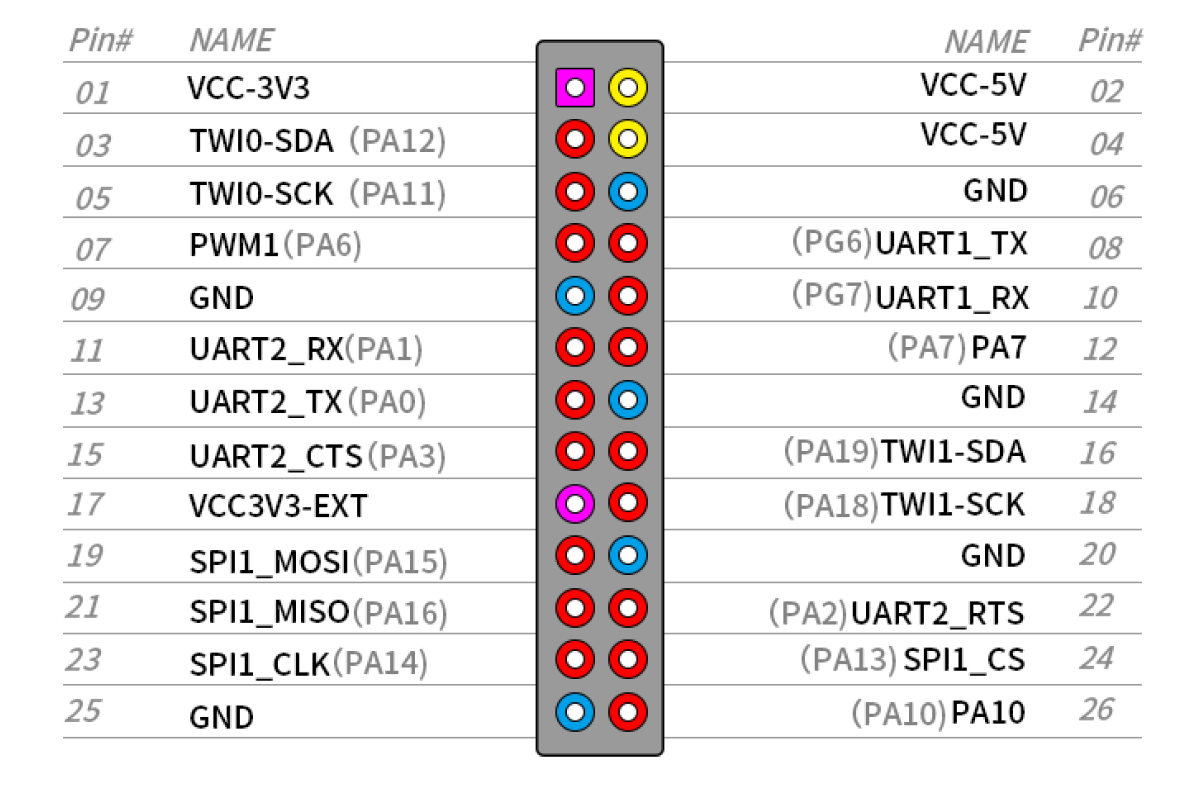

Interface definition

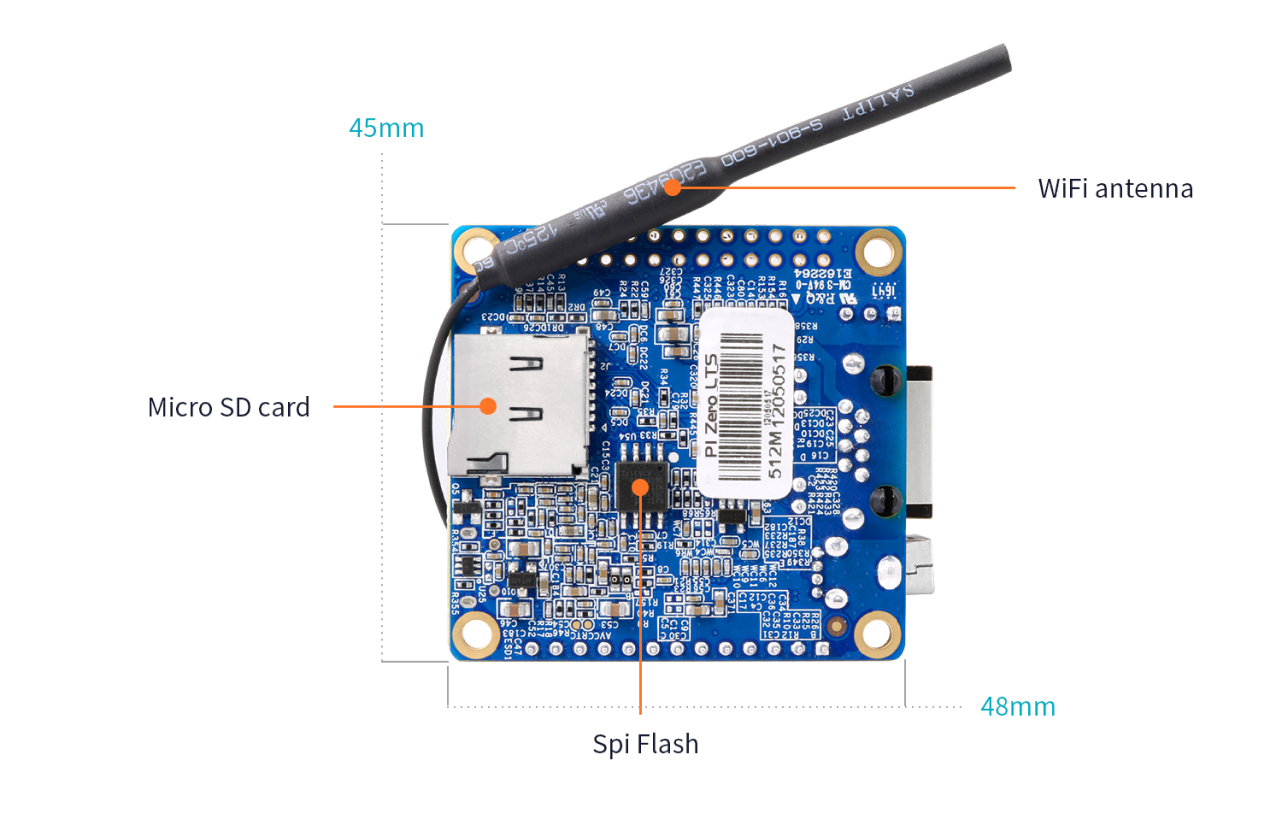

Product size 48 mm × 46mm
Weight 26g
