    Domov / Mikropočítače / Raspberry Pi / Raspberry Pi 5 / Moduly - HAT,SHIELD,PCIe-karty / PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free

    PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free

    Neohodnotené
    Značka: Waveshare

    PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter

    SKU: 27834

    Dostupnosť Skladom (2 ks)
    Môžeme doručiť do:
    27.11.2024
    Možnosti doručenia
    Kód: 23553
    17,88 € / ks 14,90 € bez DPH
    PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free
    Neohodnotené
    Značka: Waveshare
    PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter
    PCIe TO USB 3.2 Gen1 Board (C)

    Designed for Raspberry Pi 5

    Supports Raspberry Pi OS, Driver-Free, Plug And Play

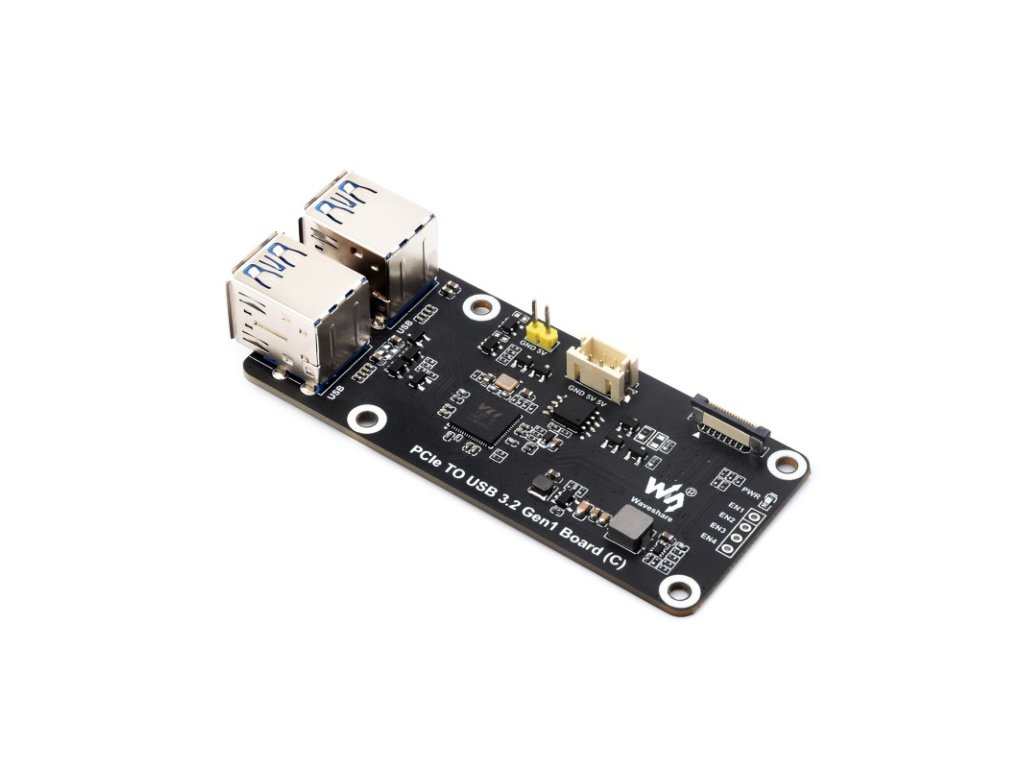

    PCIe to 4-ch USB3.2 Gen1 Board (C), front view

    Connecting To PI5 Via 16PIN Cable
    PCIe to 4-ch USB3.2 Gen1 Board (C), connecting to PI5

    Specifications
    INTERFACE STANDARD High-speed USB 3.2 Gen1
    COMMUNICATION RATE 5Gbps for single USB port
    total 5Gbps for 4-ch USB ports
    USB OUTPUT 5V@Imax: 2A; USB-A connector
    POWER SUPPLY 5V DC power supply header/connector
    OPERATING TEMPERATURE 0℃ ~ 75℃

    5Gbps Ultra-Fast Transmission

    Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

    PCIe to 4-ch USB3.2 Gen1 Board (C) up to 500MB/s transmission speed
    Enabling Up To 8-Ch USB Ports For The Raspberry Pi 5

    PCIe To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals

    PCIe to 4-ch USB3.2 Gen1 Board (C), supports connecting to various USB devices

    * the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list

    4-Ch Power Supply Independent Control

    Allows Controlling The Power ON/OFF Of Each USB Port Via Commands

    PCIe to 4-ch USB3.2 Gen1 Board (C), allows controlling the power ON/OFF of each USB port via commands

    Two Power Supply Methods

    Supports Power Supply Via 2PIN Header Or 3PIN Connector

    PCIe to 4-ch USB3.2 Gen1 Board (C), supports two power supply methods

    Comes With Transparent Acrylic
    Mounting Plate

    Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5
    Connecting To PI5 Via 16PIN Cable

    PCIe to 4-ch USB3.2 Gen1 Board (C), adopts side-mounting solution

    * for reference only, please refer to the Package Content for detailed part list


    Acrylic Mounting Bottom Plate, Stable And Not Easy To Loosen
    PCIe to 4-ch USB3.2 Gen1 Board (C), with Acrylic mounting bottom plate

    Outline Dimensions
    PCIe to 4-ch USB3.2 Gen1 Board (C), outline dimensions

    PACKAGE CONTENT

    Weight: 0.065 kg

    1. PCIe TO USB 3.2 Gen1 Board (C) x1
    2. Transparent acrylic mounting plate x1
    3. 16PIN PCIe cable x1
    4. PH2.0 3PIN cable x1
    5. Standoff pack x1
    1PCIe to 4-ch USB3.2 Gen1 Board (C)
    2
    3
    4
    5
