PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT

PCIe To M.2 E KEY With PoE HAT

Supports PoE power supply

Designed for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC

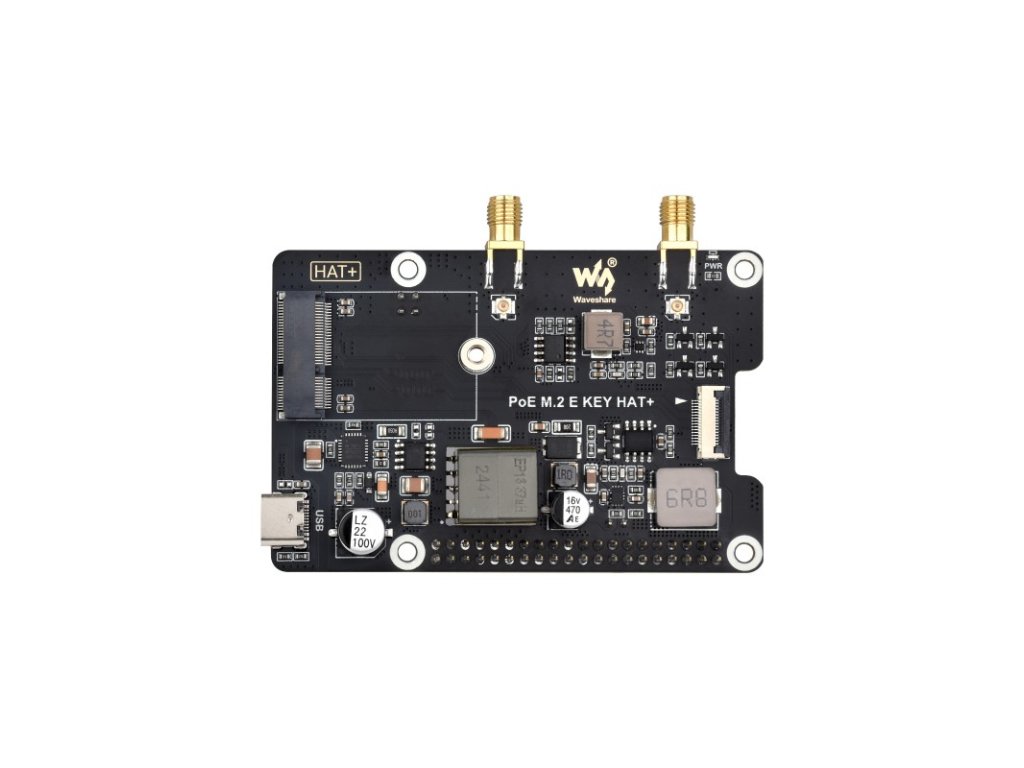

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, front view and features

Specifications

PoE power input	37V ~ 57V DC in
Power output	GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions	56.0 × 85.0 (mm)
Network standard	IEEE 802.3af/at PoE
M.2 Slot	M.2 E Key

Compatible with wireless NIC

suitable for A/E Key and E Key

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, wireless NIC support

Various wireless NIC support

Supports the following modules, with more compatible modules coming soon

Model	RTL8822CE		AX200		AX210			BE200
Wi-Fi Version	Wi-Fi 5		Wi-Fi 6		Wi-Fi 6E			Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	300Mbps	867Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)							NGFF (M.2 E Key)
Bluetooth Version	5.0		5.2		5.3			5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX 4 Connector
System Support	Linux, Windows 10 / 11
Dimensions	22.0 × 30.0 × 2.4mm

Onboard SMA female antenna connector
Supports USB Bluetooth connection

Supports inputting Bluetooth signal into the Raspberry Pi via USB adapter

(* this function is only available after connecting the Wireless NIC module)

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, onboard SMA female antenna connector

* for reference only, please refer to the Package Content for detailed part list

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

* for reference only, please refer to the Package Content for detailed part list

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

PCIe To M.2 E KEY Adapter With PoE HAT, with PoE function

* for reference only, the Raspberry Pi 5 and Network cable are NOT included.

Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi
