PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key)

Neohodnotené
Značka: Waveshare

PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC , Raspberry Pi 5 PCIe HAT

SKU: 30396

Version : with Wireless-AX210 module

Dostupnosť Skladom (2 ks)
Môžeme doručiť do:
1.4.2025
Možnosti doručenia
Kód: 25243
49,08 € / ks 39,90 € bez DPH
PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key)
Neohodnotené
Značka: Waveshare
PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key)
Loading...
14 dní na vrátenie
14 dní
na vrátenie tovaru
Objednávka do 12:30
Do 12:30 objednané
ešte dnes odoslané
Vernostné zľavy 5%
Vernostné zľavy 5%
pre registrovaných zákazníkov
PCIe To M.2 E KEY Adapter With PoE Function for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC, Raspberry Pi 5 PCIe HAT
PCIe To M.2 E KEY With PoE HAT

Supports PoE power supply

Designed for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC

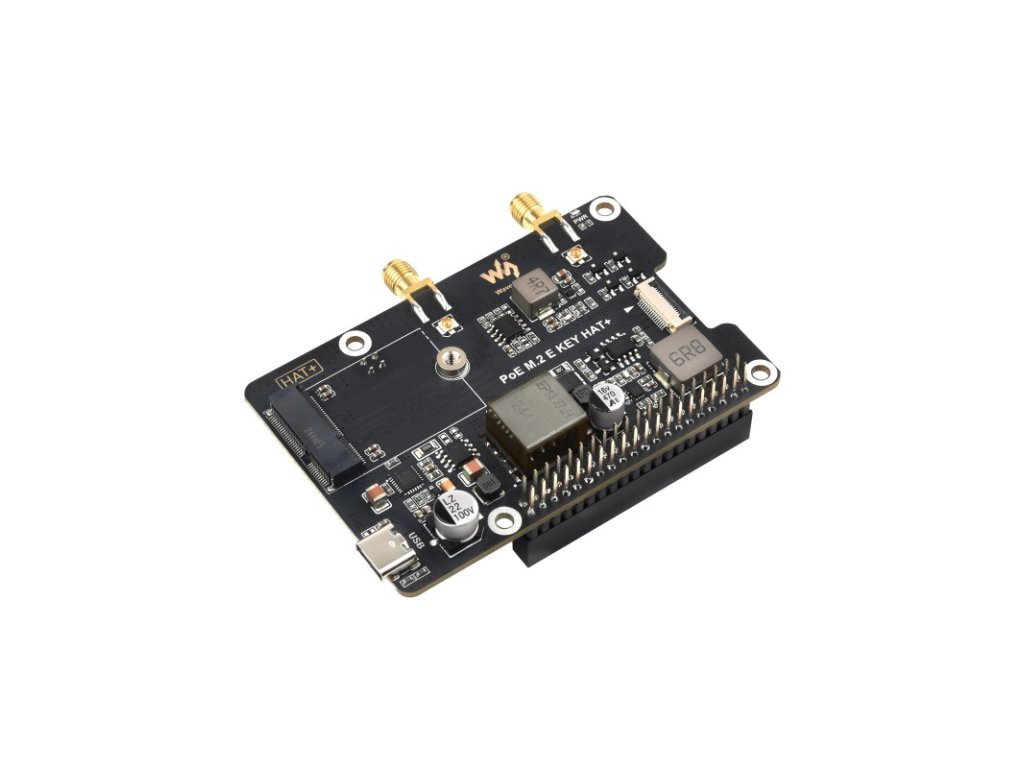

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, front view and features
Kit Selection

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, PoE M.2 E KEY HAT+ Acce A

PoE M.2 E KEY HAT+ Acce A

This kit includes PoE M.2 E KEY HAT+ kit, Wireless-AX210 module and WiFi antenna (2pcs).


Specifications
PoE power input 37V ~ 57V DC in
Power output GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)
Dimensions 56.0 × 85.0 (mm)
Network standard IEEE 802.3af/at PoE
M.2 Slot M.2 E Key

Compatible with wireless NIC

suitable for A/E Key and E Key

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, wireless NIC support


Various wireless NIC support

Supports the following modules, with more compatible modules coming soon

Model
RTL8822CE
AX200
AX210
BE200
Wi-Fi Version Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E Wi-Fi 7
Wi-Fi Band 2.4GHz 5GHz 2.4GHz 5GHz 2.4GHz 5GHz 6GHz 2.4GHz 5GHz 6GHz
Wi-Fi Rate 300Mbps 867Mbps 574Mbps 2400Mbps 574Mbps 2400Mbps 2400Mbps 574Mbps 2400Mbps 5800Mbps
Interface NGFF (M.2 A/E Key) NGFF (M.2 E Key)
Bluetooth Version 5.0 5.2 5.3 5.4
Technical Support MU-MIMO
Antenna Connector IPEX 4 Connector
System Support Linux, Windows 10 / 11
Dimensions 22.0 × 30.0 × 2.4mm

Onboard SMA female antenna connector
Supports USB Bluetooth connection

Supports inputting Bluetooth signal into the Raspberry Pi via USB adapter

(* this function is only available after connecting the Wireless NIC module)

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, onboard SMA female antenna connector

* for reference only, please refer to the Package Content for detailed part list

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, connecting to PI5 via 16PIN cable

* for reference only, please refer to the Package Content for detailed part list


Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

PCIe To M.2 E KEY Adapter With PoE HAT, with PoE function
* for reference only, the Raspberry Pi 5 and Network cable are NOT included.


Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

PCIe To M.2 E KEY Adapter With PoE HAT, onboard 5V & 12V header outputs

how to install

Attach the thermal tapes first, then install the metal heatsink and fix the HAT

PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, how to install

* for reference only, please refer to the Package Content for detailed part list



Outline dimensions
PCIe To M.2 E KEY Adapter With PoE for Raspberry Pi 5, outline dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/PoE_M.2_E_KEY_HAT+

Balenie obsahuje :

PoE M.2 E KEY HAT+ Acce A

  1. PoE M.2 E KEY HAT+ kit:
    • PoE M.2 E KEY HAT+ x1
    • 16P-Cable-40mm x1
    • Screws pack x1
    • USB Type-C Adapter (E) x1
    • IPEX 1 to IPEX 4 adapter cable ~6cm (2pcs) x1
  2. Wireless-AX210 x1
  3. WiFi antenna ~11cm x2

PoE M.2 E KEY HAT+ Acce A
