    PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC

    Neohodnotené
    Značka: Waveshare

    PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC , Supports USB Bluetooth Connection , HAT+ Standart , Raspberry Pi 5 PCIe HAT

    SKU: 30134

    Dostupnosť Skladom (3 ks)
    Môžeme doručiť do:
    26.2.2025
    Možnosti doručenia
    Kód: 25108
    12,14 € / ks 9,87 € bez DPH
    PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC
    Neohodnotené
    Značka: Waveshare
    PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With NGFF (M.2 E Key) Wireless NIC
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    PCIe To M.2 E KEY HAT for Raspberry Pi 5, Compatible With Various NGFF (M.2 E Key) Wireless NIC, Supports USB Bluetooth Connection And HAT+ Standard, Raspberry Pi 5 PCIe HAT
    PCIe To M.2 E KEY HAT

    Designed for Raspberry Pi 5

    Compatible With Various NGFF (M.2 E Key) Wireless NIC

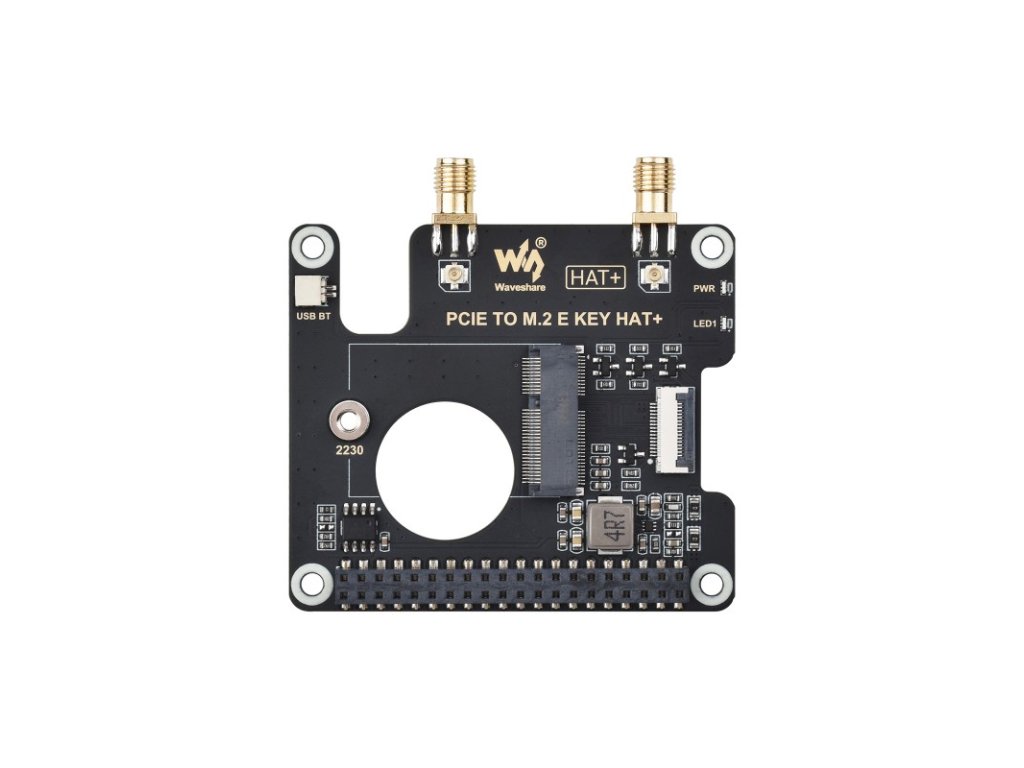

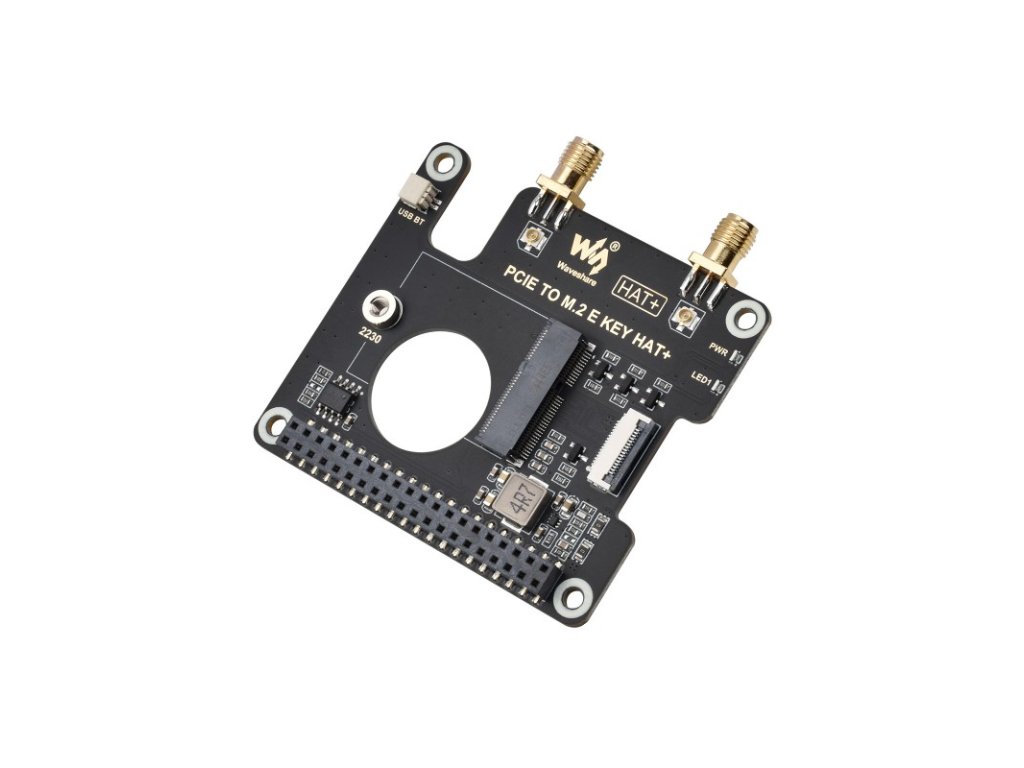

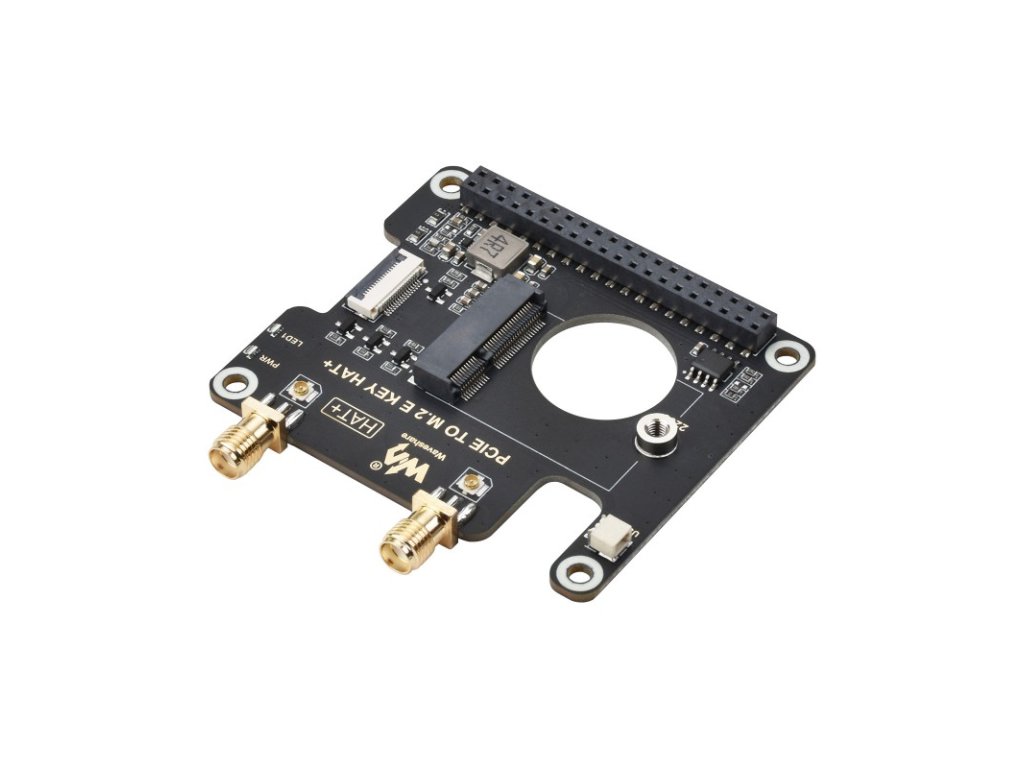

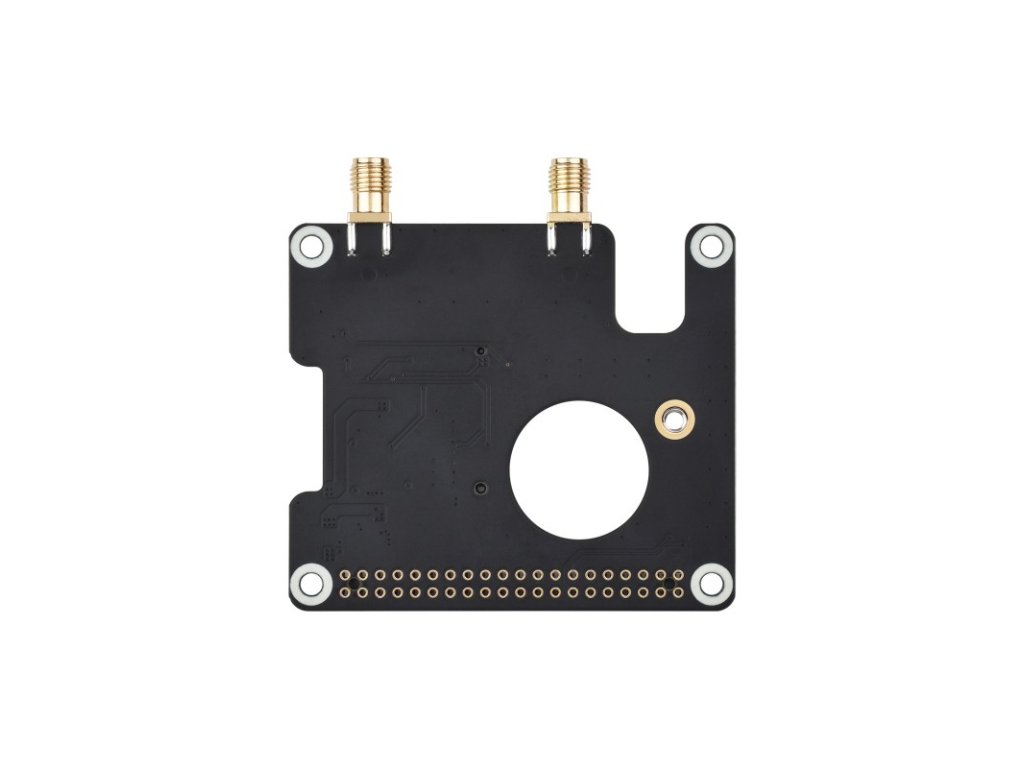

    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, front view and features

    Connecting to PI5 via 16PIN Cable

    Based on 16PIN PCIe Interface of Raspberry Pi 5

    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, connecting to PI5 via 16PIN cable

    * for reference only, please refer to the Package Content for detailed part list


    Compatible with wireless NIC

    suitable for A/E Key and E Key

    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, wireless NIC support


    Various wireless NIC support

    Supports the following modules, with more compatible modules coming soon

    Model
    RTL8822CE
    AX200
    AX210
    BE200
    Wi-Fi Version Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E Wi-Fi 7
    Wi-Fi Band 2.4GHz 5GHz 2.4GHz 5GHz 2.4GHz 5GHz 6GHz 2.4GHz 5GHz 6GHz
    Wi-Fi Rate 300Mbps 867Mbps 574Mbps 2400Mbps 574Mbps 2400Mbps 2400Mbps 574Mbps 2400Mbps 5800Mbps
    Interface NGFF (M.2 A/E Key) NGFF (M.2 E Key)
    Bluetooth Version 5.0 5.2 5.3 5.4
    Technical Support MU-MIMO
    Antenna Connector IPEX 4 Connector
    System Support Linux, Windows 10 / 11
    Dimensions 22.0 × 30.0 × 2.4mm

    Onboard SMA female antenna connector

    for easy antenna mounting

    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, onboard SMA female antenna connector

    * for reference only, please refer to the Package Content for detailed part list

    Supports USB Bluetooth connection

    Supports inputting Bluetooth signal into the Raspberry Pi via USB interface

    (* this function is only available after connecting the Wireless NIC module)

    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, supports USB Bluetooth connection
    how to install
    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, how to install

    * for reference only, please refer to the Package Content for detailed part list



    Outline dimensions
    PCIe To M.2 E KEY Adapter for Raspberry Pi 5, outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/PCIE_TO_M.2_E_KEY_HAT+

    Balenie obsahuje :

    Weight: 0.035 kg

    1. PCIE TO M.2 E KEY HAT+ x1
    2. 2*20 Pin header x1
    3. IPEX 1 to IPEX 4 adapter cable ~6cm (2pcs) x1
    4. Type-A to SH1.0 2Pin cable x1
    5. 16P-Cable-40mm x1
    6. Screws pack x1
    PCIE TO M.2 E KEY HAT+
