PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interf.

Neohodnotené

Značka: Waveshare

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interface 4G Module, High-speed Networking, Raspberry Pi 5 HAT

SKU: 28142

Dostupnosť	Skladom (2 ks)
Môžeme doručiť do:	31.12.2024
Možnosti doručenia
Kód:	23745

33,42 € / ks 27,85 € bez DPH

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interf.

Neohodnotené

Značka: Waveshare

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interf.

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe interface 4G Module, High-speed Networking, Multiple OS support, Raspberry Pi 5 HAT, optional for 4G module

PCIe TO MiniPCIe/GbE/USB3.2 HAT

PCIe to MiniPCIe slot, Gigabit Ethernet, and USB 3.2 Gen1 ports

Designed for Raspberry Pi 5, driver-free, plug and play

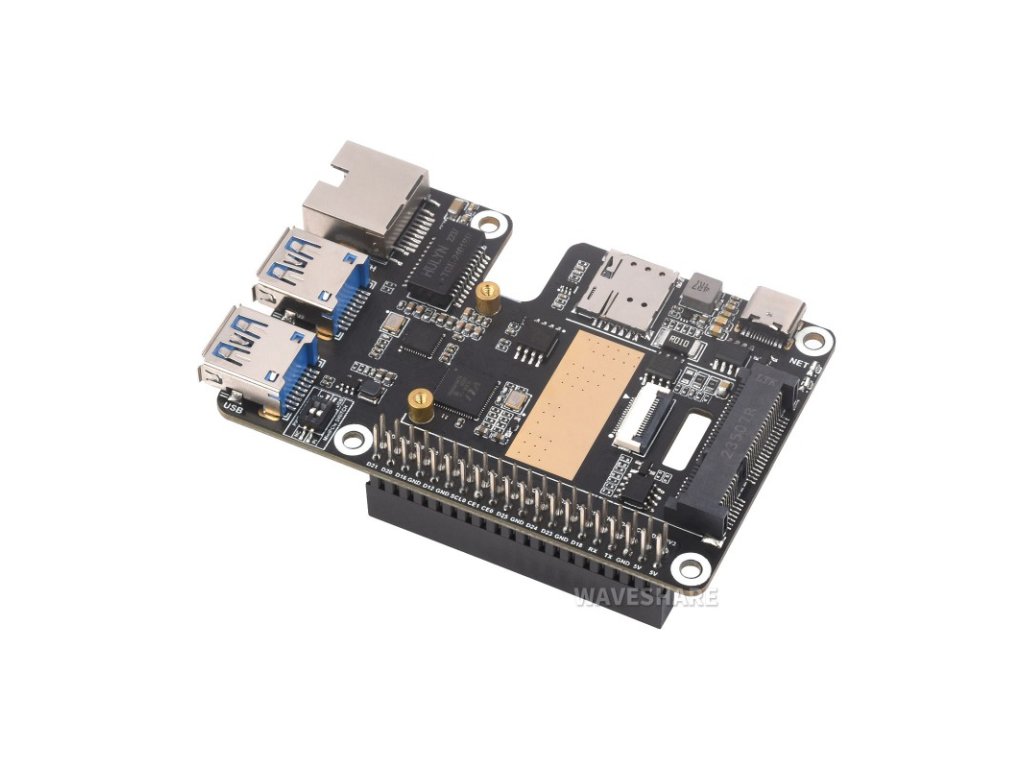

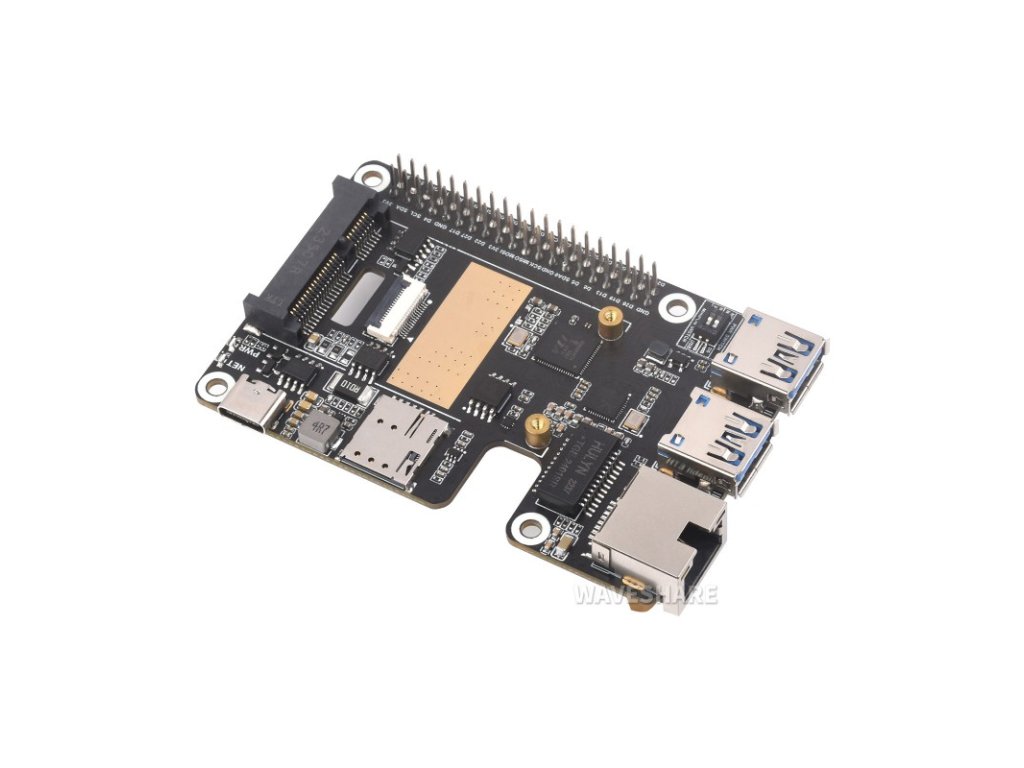

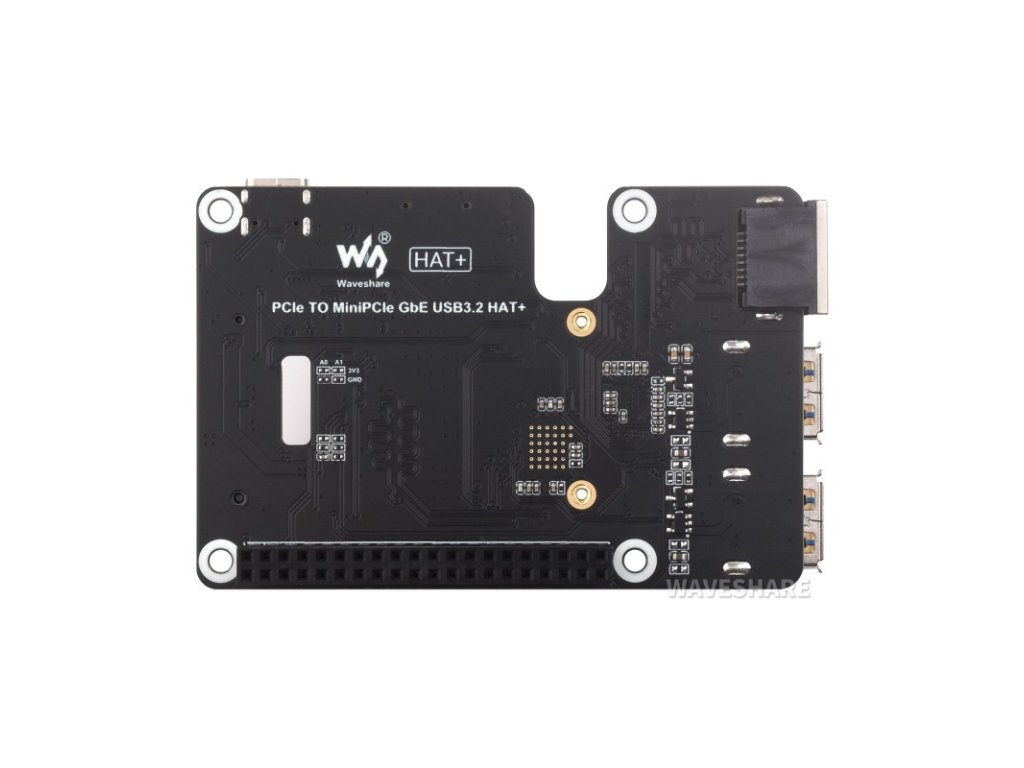

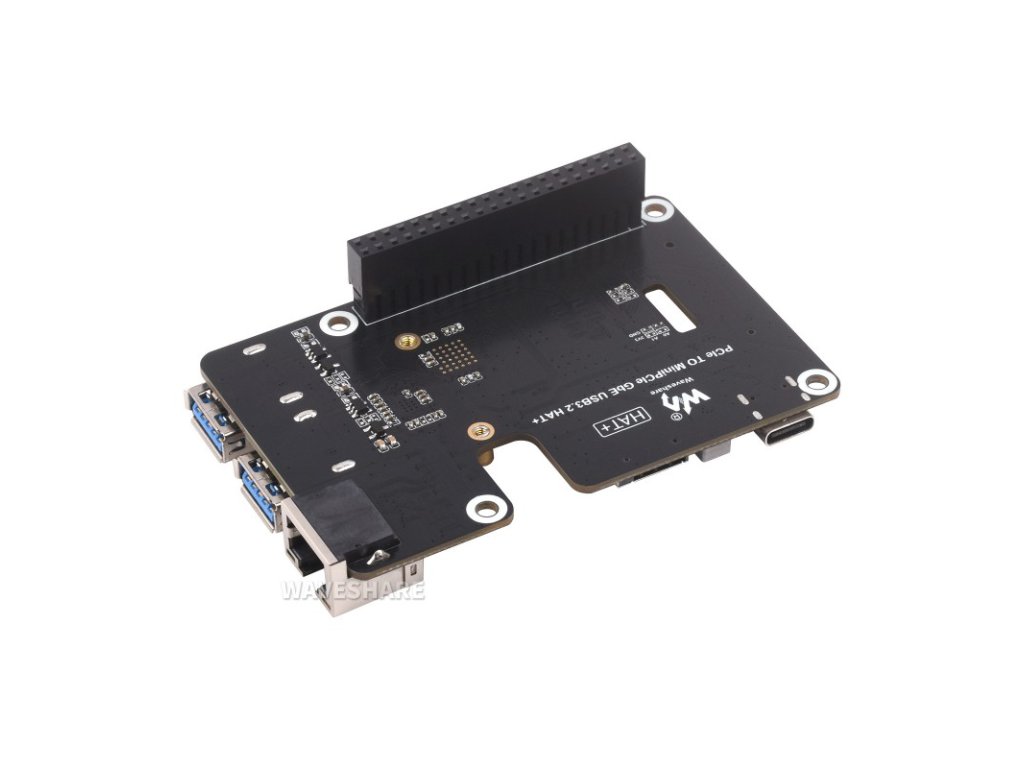

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, front view

Version Options

PCIe TO MiniPCIe GbE USB3.2 HAT+
the PCIe HAT + accessories

SIM7600G-H 4G GbE USB3.2 HAT+
PCIe HAT + SIM7600G-H-PCIE module + accessories

EG25-G 4G GbE USB3.2 HAT+
PCIe HAT + EG25-G-mPCIe module + accessories

Module parameters comparison

Onboard MiniPCIe slot, Compatible with SIM7600G-H-PCIE / EG25-G-mPCIe series 4G modules

4G module	SIM7600G-H-PCIE	EG25-G-mPCIe

Frequency band
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
LTE-TDD	B34, B38, B39, B40, B41	B38, B39, B40, B41
WCDMA	B1, B2, B4, B5, B6, B8, B19
GSM	850, 900, 1800, 1900 MHz
GNSS	GPS, Beidou, GLONASS, GALILEO, QZSS
Data Transfer
LTE-FDD	150 Mbps (DL) / 50 Mbps (UL)
LTE-TDD	130 Mbps(DL) / 35 Mbps(UL)	130 Mbps(DL) / 30 Mbps(UL)
HSPA+	42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA	384 Kbps (DL) / 384 Kbps (UL)
EDGE	236.8 Kbps (DL) / 236.8 Kbps (UL)	296 Kbps (DL) / 236.8 Kbps (UL)
GPRS	85.6 Kbps (DL) / 85.6 Kbps (UL)	107 Kbps (DL) / 85.6 Kbps (UL)
Software Features
Operating system	Windows / Linux / Android
Communication protocols	TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS	TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	USB/FOTA	USB/DFOTA
Hardware Specifications
SIM card	1.8V / 3.0V
Antenna interface	IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna)
Power supply	3V ~ 3.6V
Form factor	Mini-PCIe
Dimensions	50.8 × 31.0 × 5.5 mm	51.0 × 30.0 × 4.9 mm
Operating temperature	-40℃ ~ +80℃
Applications
Applicable regions	global coverage
Note: The 4G module is optional, please refer to the Package Content for detailed part list. The above are the supported modules after testing; If you need to use with other modules, please confirm the interface compatibility of your module.

Designed for Raspberry Pi 5, HAT+ standard

Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, connecting to Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 2x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT for Raspberry Pi 5, extends 2x high speed USB 3.2 Gen1 ports

* for reference only, please refer to the Package Content for detailed part list

Extends 1x Gigabit Ethernet port

Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful

network Speed Measurement

Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable
and reliable network speed

Multi-system Support

Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.

Global band 4G / 3G / 2G support

LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink)
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink)
2G (GPRS/EDGE): up to 236.8Kbps (uplink) / up to 236.8Kbps (downlink)

Note: the 4G module such as SIM7600G-H-PCIE or EG25-G-mPCIe is required to enable this function

GNSS positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

Note: the 4G module such as SIM7600G-H-PCIE or EG25-G-mPCIe is required to enable this function

Onboard power monitoring chip and EEPROM

Real-time monitoring of power status, supports USB port power control via software

What's On Board

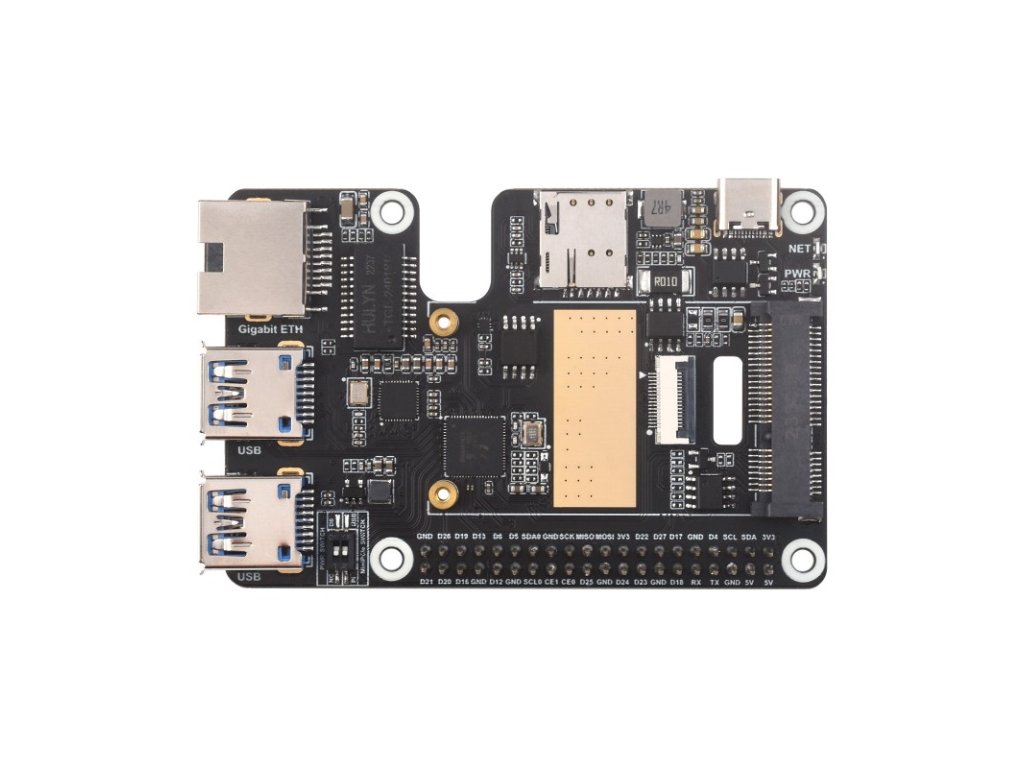

PCIe to MiniPCIe / Gigabit Ethernet / USB 3.2 Gen1 HAT, onboard components

RTL8153B
USB to Gigabit ETH
VL805
PCIe to USB 3.2 Gen1 HUB chip
INA219
Power monitoring chip
EEPROM
for saving HAT ID and product information
Raspberry Pi GPIO header
for connecting Raspberry Pi 5
MiniPCIe slot
for connecting the 4G module with MIniPCIe interface
16PIN PCIe interface
for connecting to the PCIe interface of Raspberry Pi 5

Type-C interface
for 4G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
Nano SIM card slot
for installing Nano-SIM card
Gigabit Ethernet port
up to 1000Mbps data rate, compatible with 100Mbps
USB 3.2 Gen1 expanded ports
USB1~USB2
DIP switchs
for switching to use GPIO D6 pin to control power ON/OFF of the module and switching the module USB signal output direction
NET indicator
Module Network status indicator
PWR indicator
Power indicator

Pinout definition

How to Install

* for reference only, the Raspberry Pi 5 and Active Cooler are not included.

Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...
