PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

Neohodnotené
Značka: Waveshare

PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

SKU: 20645

Dostupnosť Skladom (10 ks)
Môžeme doručiť do:
31.12.2024
Možnosti doručenia
Kód: 20233
3,99 € / ks 3,33 € bez DPH
PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector
Neohodnotené
Značka: Waveshare

PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

PL2303 USB To UART (TTL) Communication Module, Micro / Mini / Type A / Type C Connector
PL2303 USB To UART (TTL)
Communication Module

Stable Transmission | Multi-Device Applicable | Windows Compatible

Features At A Glance
  • Adopts PL2303GS new version chip
  • Supports windows XP/7/8/10/11/...
  • 3x VCCIO power mode via jumper setting:
    • VCCIO - 5V: 5V output
    • VCCIO - 3.3V: 3.3V output
    • open the jumper: powered from target board (1.8V/2.5V/3.3V/5V)
  • 3x LED indicators: TXD, RXD, PWR

Version Options

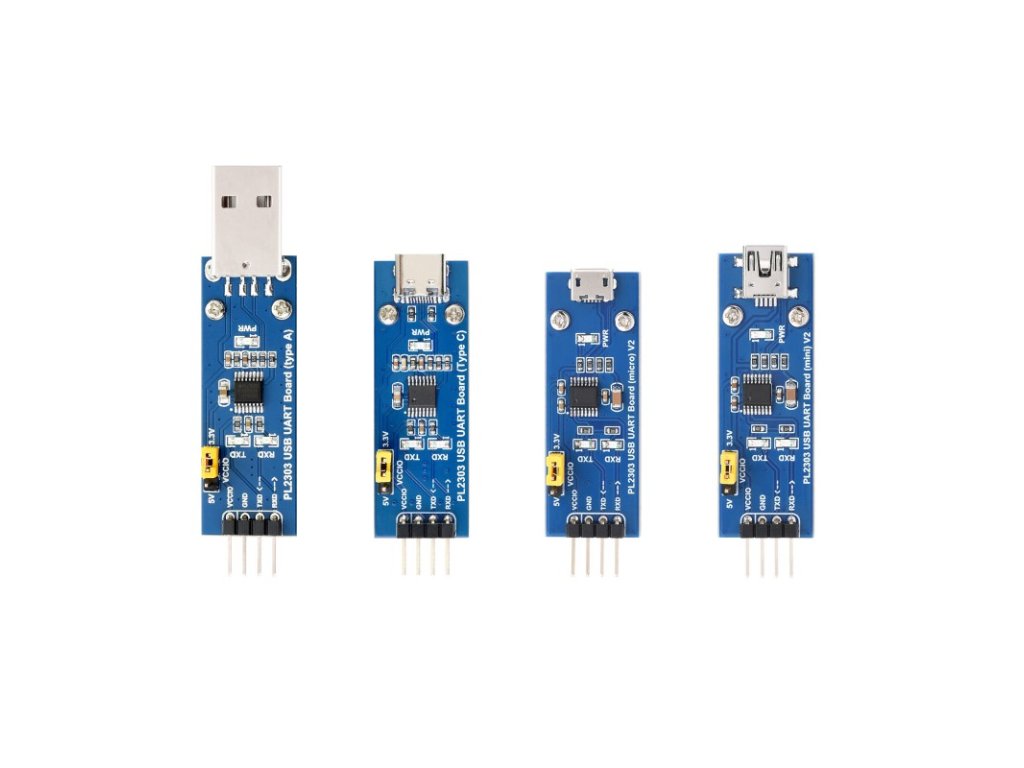

USB Type A Connector



USB Type C Connector



USB micro Connector



USB mini Connector


PL2303 Solution

Adopts PL2303GS New Version Chip

Hardware Connection

In The Case Of PL2303 USB UART Board (Type A) Working With MCU

  • VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
  • GND ↔ GND
  • TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)
CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.
Product Show
Outline Dimensions
