    PoE Expansion Board For NVIDIA Jetson Orin Nano/NX, Mini Body, More Space Saving

    Neohodnotené
    Značka: Waveshare

    PoE Expansion Board For NVIDIA Jetson Orin Nano/NX, Mini Body, More Space Saving

    SKU: 27439

    Dostupnosť Skladom (3 ks)
    Môžeme doručiť do:
    27.11.2024
    Možnosti doručenia
    Kód: 23290
    17,99 € / ks 14,99 € bez DPH
    PoE Expansion Board For NVIDIA Jetson Orin Nano/NX, Mini Body, More Space Saving
    Neohodnotené
    Značka: Waveshare
    PoE Expansion Board For NVIDIA Jetson Orin Nano/NX, Mini Body, More Space Saving
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    PoE Expansion Board For NVIDIA Jetson Orin Nano/NX, Mini Body, More Space Saving
    Jetson Orin PoE Module

    Mini Body, More Space-Saving

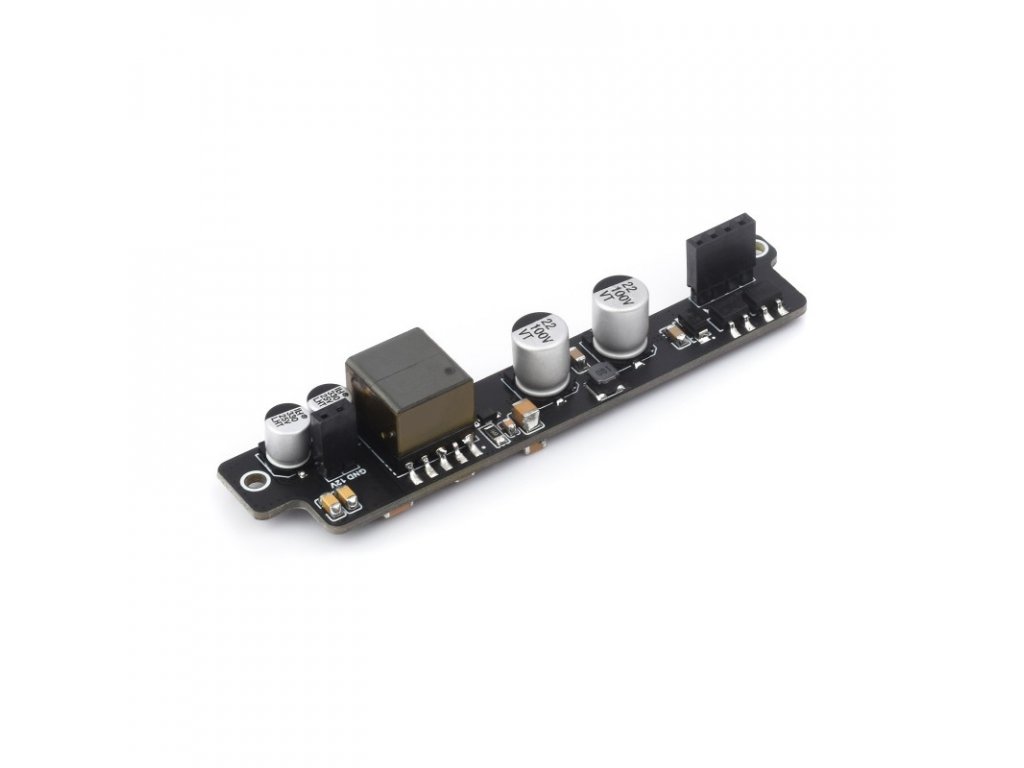

     Jetson Orin PoE Module, front view

    Features At A Glance

    The JETSON-ORIN-POE-MODULE is a mini 802.3af-compliant Power Over Ethernet accessory for the NVIDIA Jetson Orin Nano/NX. By using this small module and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Orin board in only one Ethernet cable.

    • Suitable for Jetson Orin Nano / Jetson Orin NX
    • PoE (Power Over Ethernet) capability, IEEE 802.3af/at-compliant
    • Fully isolated switched-mode power supply (SMPS)
    • Smaller and more flexible with a more compact component layout

    Specifications
    POE POWER INPUT 37V ~ 57V DC in
    POWER OUTPUT 12V 2.1A DC out
    NETWORK STANDARD supports IEEE 802.3af/at PoE
    DIMENSIONS 21 × 92mm

    Suitable For Jetson Boards

    Suitable For Jetson Orin Nano / Jetson Orin NX

    Jetson Orin PoE Module, suitable for Jetson Orin Nano / Jetson Orin NX

    Note: the PoE pin header of Orin Nano/NX baseboard needs to be pre-soldered before connecting the PoE module.



    Power Over Ethernet

    Providing Both Network Connection And Power Supply For Your Jetson Orin In One Cable

    Jetson Orin PoE Module, conection demo
    * for reference only, the Jetson Orin Nano board and Switch are NOT included.

    What's Onboard

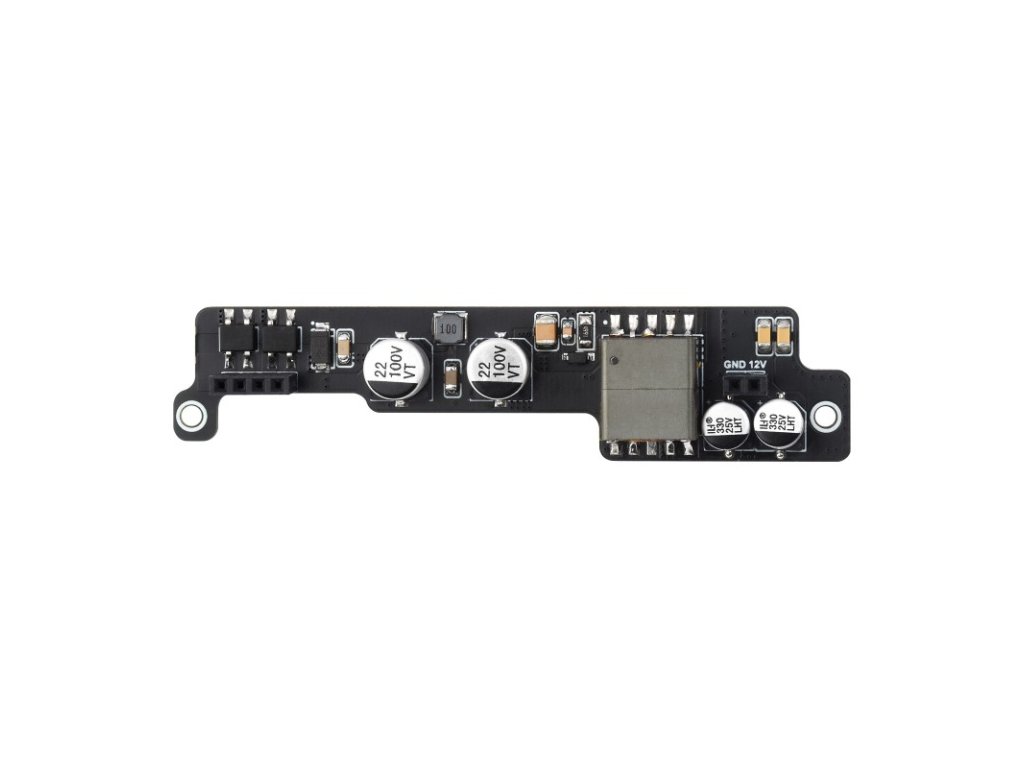

    Jetson Orin PoE Module, onboard components
    Note: since the PoE board is small and the temperature of transformer will be high when working, please do not touch the transformer and consider adding extra cooling solution when using this module.

    Outline Dimensions
    Jetson Orin PoE Module, outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/JETSON-ORIN-POE-MODULE

    Weight: 0.014 kg

    1. JETSON-ORIN-POE-MODULE x1
    2. 40PIN male pinheader x1
    3. Screws pack x1
    4. Mini cross wrench sleeve x1
    JETSON-ORIN-POE-MODULE
