    Quectel EG25-G mPCIe Module, LTE Cat 4 module with PCI Express Mini Card form factor

    Neohodnotené
    Značka: Waveshare

    Quectel EG25-G mPCIe Module, LTE Cat 4 module with PCI Express Mini Card form factor, Supports Multiple Wireless Communication Modes

    SKU:28569

    Dostupnosť Zvyčajne do 3-7 pracovných dní
    Môžeme doručiť do:
    19.12.2025
    Možnosti doručenia
    Kód: 23972
    57,48 € / ks 46,73 € bez DPH
    Quectel EG25-G mPCIe Module, LTE Cat 4 module with PCI Express Mini Card form factor
    Neohodnotené
    Značka: Waveshare
    eg25 g mpcie 1
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 12:30
    Do 12:30 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    Quectel EG25-G mPCIe Module, LTE Cat 4 module with PCI Express Mini Card form factor, Supports Multiple Wireless Communication Modes

    Quectel EG25-G mPCIe Module, LTE Cat 4 module with PCI Express Mini Card form factor, Supports Multiple Wireless Communication Modes, Integrates Multiple Industrial Standard Interfaces
    Quectel EG25-G mPCIe Module

    LTE Cat 4 Mini-PCIe Module

    PCI Express Mini Card standard interface, designed for M2M and IoT applications

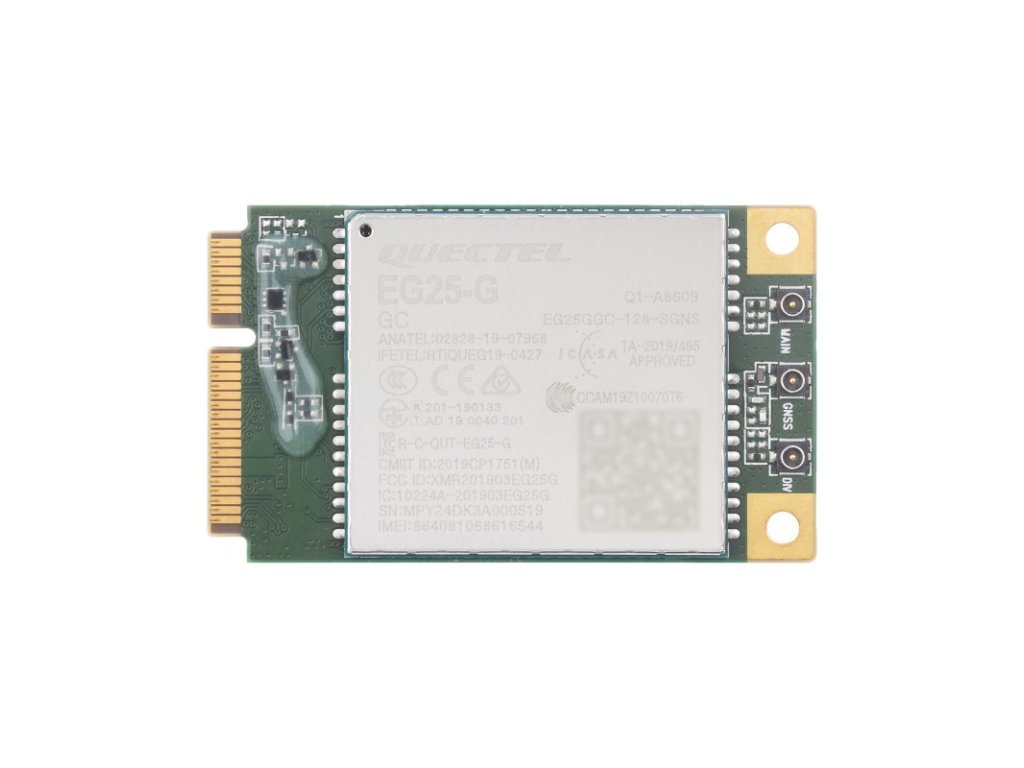

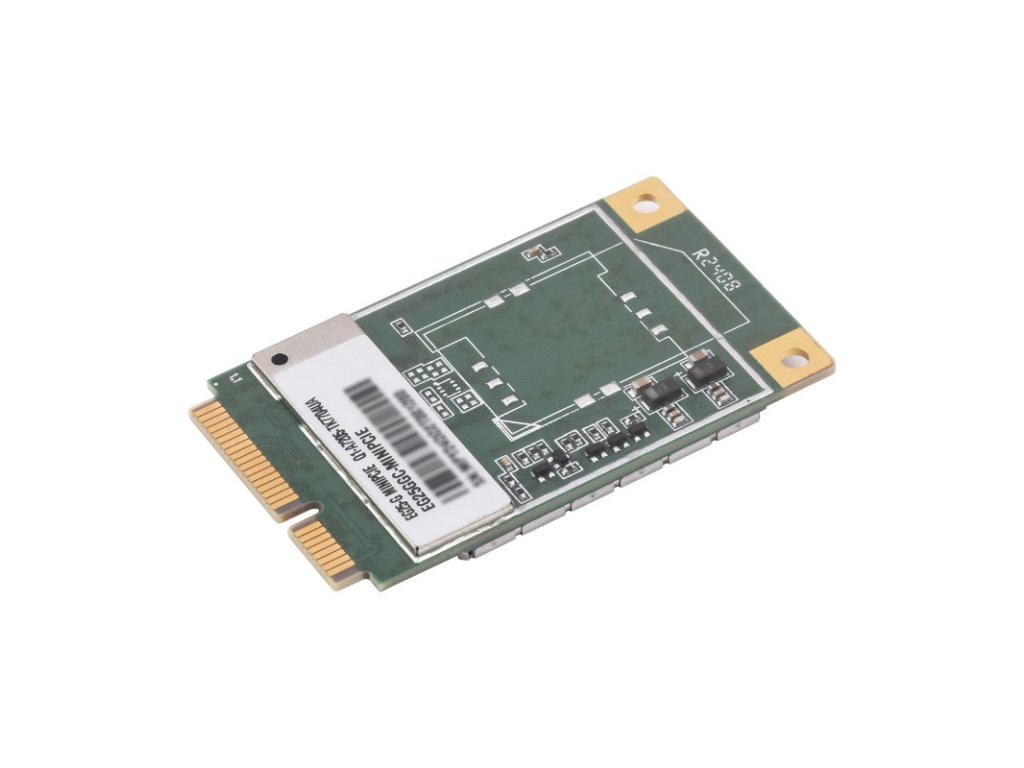

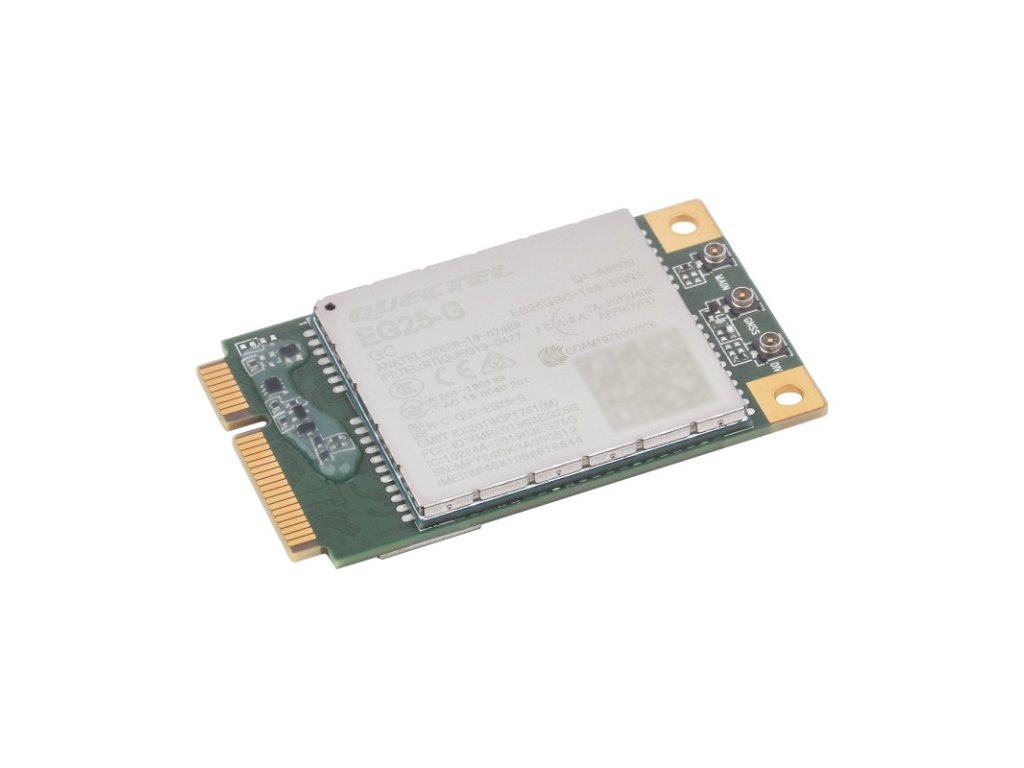

    Quectel EG25-G mPCIe Module, front and back view
    Features At A Glance

    The EG25-G mPCIe is a LTE Cat 4 module which supports multiple wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc, with maximum downlink rate of 150Mbps and uplink rate of 50Mbps.

    Adopts PCI Express Mini Card standard interface, based on Qualcomm IZat positioning technology Gen8C Lite, with multi-constellation GNSS receiver which greatly simplifies product design, supports GPS, GLONASS, BDS, Galileo and QZSS echnologies, provides quicker, more accurate and more reliable positioning.

    Built in rich network protocols, integrates multiple industry-standard interfaces and supports multiple drivers and software functions (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, and Android, etc.), suitable for various M2M and IoT applications such as industrial routers, industrial PDA, rugged tablet PCs, video transmission, digital signage, remote monitoring, telemedicine, etc.

    • Mini-PCIE interface with strong compatibility
    • Multi-constellation GNSS receiver support
    • Suitable for LTE, UMTS and GSM networks with global coverage
    • AT commands of the EG25-G mPCIe series are compatible with the EG25-G series modules
    • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

    Specifications
    Frequency Band
    LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
    LTE-TDD B38, B39, B40, B41
    WCDMA B1, B2, B4, B5, B6, B8, B19
    GSM 850, 900, 1800, 1900 MHz
    GNSS GPS, Beidou, GLONASS, GALILEO, QZSS
    Data Transfer
    LTE-FDD 150 Mbps (DL) / 50 Mbps (UL)
    LTE-TDD 130 Mbps(DL) / 30 Mbps(UL)
    HSPA+ 42 Mbps (DL) / 5.76 Mbps (UL)
    WCDMA 384 Kbps (DL) / 384 Kbps (UL)
    EDGE 296 Kbps (DL) / 236.8 Kbps (UL)
    GPRS 107 Kbps (DL) / 85.6 Kbps (UL)
    Software Features
    Operating system Windows / Linux / Android
    Protocol TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, NITZ, SMTP, MQTT, CMUX, HTTPS, FTPS, SMTPS, SSL, MMS, FILE
    SMS Supports MT, MO, CB, Text, PDU
    Firmware upgrade DFOTA / USB
    Hardware Specifications
    SIM card 1.8V / 3.0V
    Antenna interface IPEX-1 connector (LTE main antenna + LTE diversity antenna + GNSS antenna)
    Power supply 3V ~ 3.6V
    Form factor Mini PCIe
    Dimensions 51.0 × 30.0 × 4.9 mm
    Operating temperature -40℃ ~ +80℃
    Applications
    Applicable regions global coverage

    Application Scenarios

    Industrial Routers, industrial PDA, rugged tablet PCs, video transmission, digital signage, remote monitoring, telemedicine, etc.

    Quectel EG25-G mPCIe Module, application scenarios
    Dimensions
    Quectel EG25-G mPCIe Module, outline dimensions
    Resources & Services

    Package Content

    Weight: 0.01 kg

    This is a mini PCIe module without antenna and SMA to IPEX adapter cable, it is recommended to used with the 4G antenna, GPS active antenna and SMA to IPEX1 RF cable.


    EG25-G mPCIe x1

    EG25-G mPCIe
