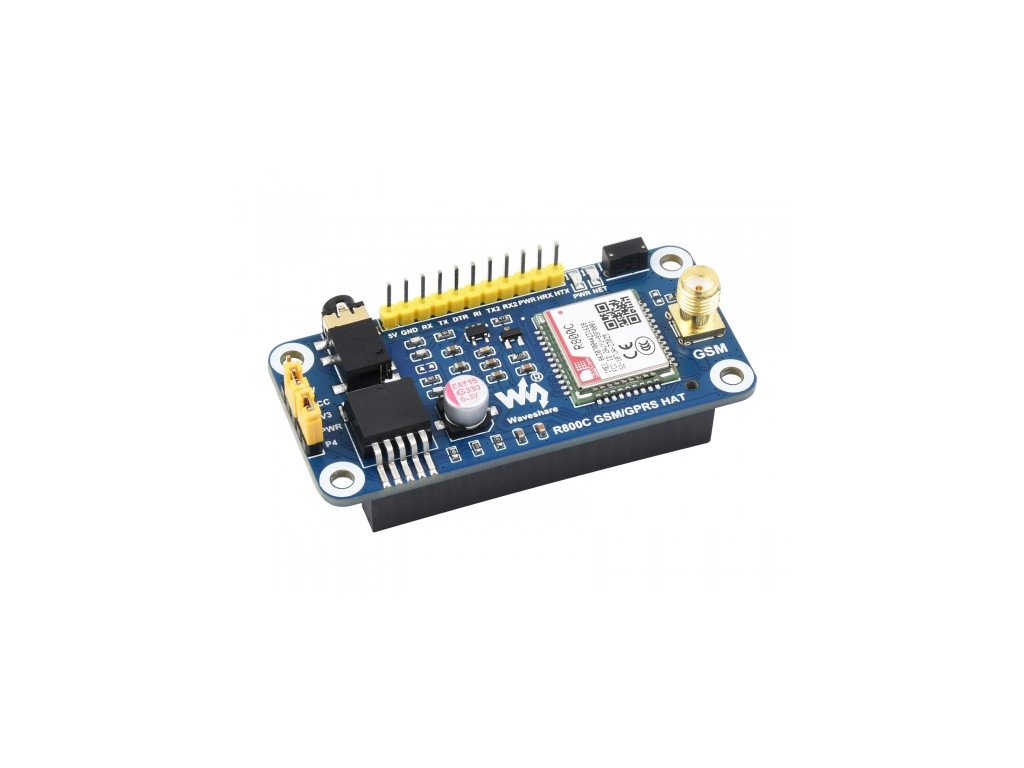

    R800C GSM/GPRS HAT For Raspberry Pi

    Neohodnotené
    Značka: Waveshare

    R800C GSM/GPRS HAT For Raspberry Pi

    SKU: 23459

    Dostupnosť Skladom (5 ks)
    Môžeme doručiť do:
    20.11.2024
    Možnosti doručenia
    Kód: 20132
    21,99 € / ks 18,33 € bez DPH
    R800C GSM/GPRS HAT For Raspberry Pi
    Neohodnotené
    Značka: Waveshare
    R800C GSM/GPRS HAT For Raspberry Pi
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    R800C GSM/GPRS HAT For Raspberry Pi

    Description :

    R800C GSM/GPRS HAT For Raspberry Pi
    R800C GSM/GPRS HAT For Raspberry Pi

    Support 2G Communication, Phone Call & SMS

    Features At A Glance

    The R800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi-communication functionalities: GSM, GPRS, and phone call, applicable to countries or regions with 2G network coverage, up to 85.6kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on.

    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
    • Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
    • UART interface, for connecting controller boards like Arduino/STM32
    • Onboard voltage translator, 3.3V by default, switch to 5V via jumper
    • 2x LED indicators, easy to monitor the working status
    • SIM card slot, supports 1.8V/3V SIM card
    • Baudrate: 2400bps ~ 115200bps (115200bps by default)
    • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
    • Supports SIM application toolkit: GSM 11.14 Release 99
    • Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    Specifications
    GSM / GPRS / AUDIO
    Frequency bandGSM: 850/900/1800/1900 MHz
    Quad-band auto search
    Compliant to GSM phase 2/2+
    Emitting powerClass 4 (2W @ 900 MHz)
    Class 1 (1W @ 1800 MHz)
    GPRS connectivityGPRS multi-slot class 12/10 (default)
    GPRS multi-slot class 1~12 (configurable)
    GPRS data featureUL/DL speed: ≤85.6kbps
    Supports Packet Broadcast Control Channel (PBCCH)
    Coding schemes: CS-1, CS-2, CS-3, CS-4
    Supports PAP (Password Authentication Protocol) for PPP connection
    Supports Unstructured Supplementary Service Data (USSD)
    SMSSupports: MT, MO, CB, Text, PDU
    SMS storage: SIM card
    AudioVoice encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi Rate
    Support echo cancellation
    Support noise reduction
    OTHERS
    Power supply5V
    Logic level5V / 3.3V (default)
    Operating temperature-40°C ~ 85°C
    Storage temperature-45°C ~ 90°C
    Dimensions30.2 x 65mm

    Standard Raspberry Pi 40PIN GPIO Header

    Compatible With Raspberry Pi Series Boards, Jetson Nano

    Connecting with Raspberry Pi Zero



    Connecting with Raspberry Pi 4B



    Connecting with Jetson Nano



    Connecting with Jetson Nano LITE

    * For reference only, the above controller boards are not included.

    Phone Call & SMS Support

    Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

    What's On Board
    1. R800C module
    2. RT9193-33 power chip
    3. MIC29302 power chip
    4. TXS0108EPWR voltage translator
      translates 3.3V/5V into 1.8V
    5. Raspberry Pi GPIO Header
      for connecting with Raspberry Pi
    6. Operating voltage selection jumper
      VCC-3.3V: set operating voltage as 3.3V
      VCC-5V: set operating voltage as 5V
    7. PWR selection jumper
      PWR-P4: startup/shutdown by the Raspberry Pi P4 pin

    1. 3.5mm earphone/mic jack
    2. R800C control header
      for easily connecting with host boards like STM32
    3. GSM Antenna Connector
    4. SIM Card slot
    5. R800C power on/off
      Press for 1s to start up the R800C.
      Press for 1s to shutdown the R800C after booting
    6. NET Indicator
      Fast flashing when module starts, flashing slowly after GSM register succeed
    7. Power Indicator
    Pinout Definition
    Product Show

    Outline Dimensions
    Product Selection
    PRODUCTSIM868SIM800CR800C
    FREQUENCY BAND
    GSMGSM: 850/900/1800/1900 MHz
    Quad-band auto search
    Compliant to GSM phase 2/2+
    GNSSGPS, GLONASS, BeiDou-
    BluetoothIntegrates AT commands
    Compliant to Bluetooth specification3.0 + EDR
    Support functions such as SPP, OPP, HFP/HSP    		-
    DATA TRANSMISSION
    GPRS (Kbps)85.6(DL)/85.6(UL)
    OTHERS
    Network protocolTCP/UDP/HTTP/HTTPS/SSL/TLS/FTP, etc.
    Internet accessPPP
    SIM card slot1.8V/3V
    UARTSupport UART to send and receive AT commands
    USB portfor testing AT commands, getting GPS positioning data, firmware upgrade, etc.for powering and catching log-
    AudioOnboard audio jack for phone calls-Onboard audio jack for phone calls
    Antenna connectorGSM antenna + Bluetooth antenna + GNSS antennaGSM antenna + Bluetooth antennaGSM antenna
    Power supply5V (USB port or pinheader)
    Logic level5V/3.3V (default)
    Operating temperature-40 ~ 85°C
    Storage temperature-45°C ~ 90°C
    Dimensions30.4 × 65.0mm30.5 × 65.0mm
    APPLICATIONS
    Applicable regionsApplicable to countries or regions with 2G network coverage
    ExamplesEnvironmental monitoring, Smart payment, Smart home, Smart city, Intelligent agriculture and animal husbandry, etc.
