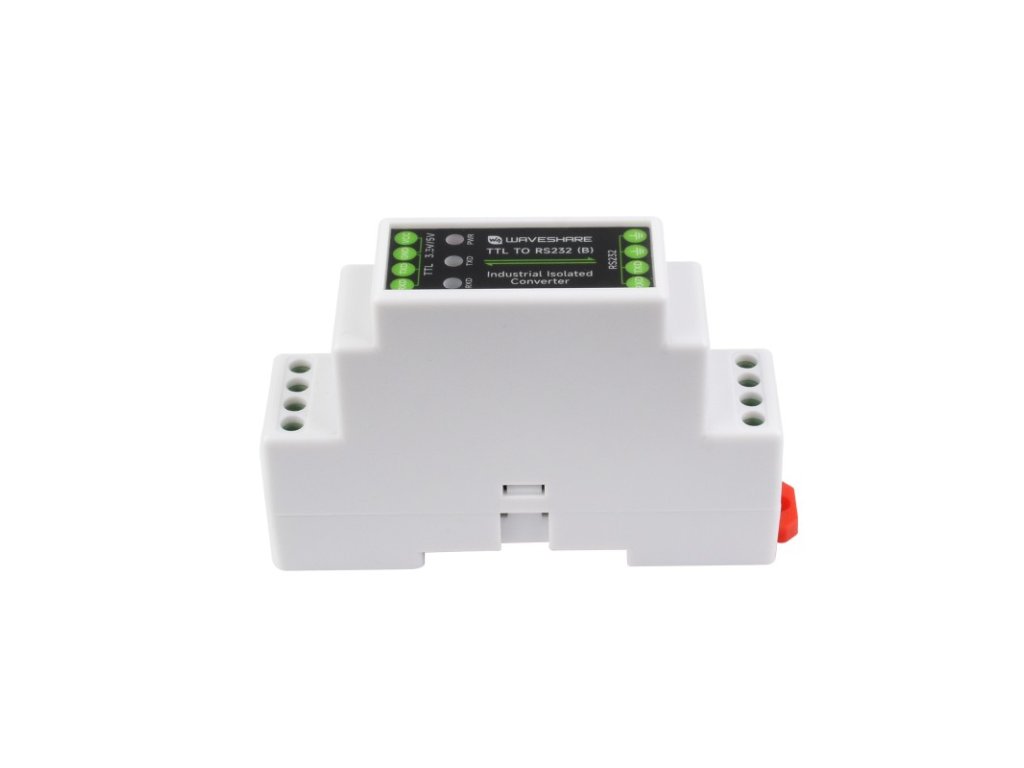

Rail-mount TTL To RS232 Galvanic isolated Converter, Full-Duplex Communication

Neohodnotené

Značka: Waveshare

Rail-mount TTL To RS232 Galvanic isolated Converter, Full-Duplex Communication, Lightningproof & Anti-Surge, TTL Serial Converter

SKU: 27386

Dostupnosť	Skladom (4 ks)
Môžeme doručiť do:	24.10.2024
Možnosti doručenia
Kód:	23511

13,20 € / ks 11 € bez DPH

Rail-mount TTL To RS232 Galvanic isolated Converter, Full-Duplex Communication

Neohodnotené

Značka: Waveshare

Rail-mount TTL To RS232 Galvanic isolated Converter, Full-Duplex Communication

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

Rail-Mount TTL To RS232 Galvanic Isolated Converter, Full-Duplex Communication, Lightningproof & Anti-Surge, Multi-Isolation Protection, TTL Serial Converter

Rail-Mount TTL To RS232 (B)

Galvanic isolated Serial Port Converter

Features At A Glance

Compatible with TTL/RS232 standard, converting the TTL signal into RS232 signal, supports full-duplex communication
Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance
Onboard power supply screw terminal, allows 3.3V~5V DC input
Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Specifications

PRODUCT TYPE	Galvanic isolated TTL To RS232 converter
POWER SUPPLY INTERFACE	Power supply	3.3V ~ 5V
POWER SUPPLY INTERFACE	Protection	over-voltage, reverse-proof
DEVICE PORT	TTL/RS232 standard compatible
TTL	Connector	screw terminal
	Transmission distance	about 10m
	Transmission mode	point-to-point
RS232	Connector	screw terminal
	Protection	TVS diode, surge protection & ESD protection, power isolation and signal isolation
	Transmission distance	About 15m
	Transmission mode	Point-to-point
INDICATORS	PWR	Red power indicator, lights up when there is power supply connection and voltage is detected
	TXD	TX indicator, lights up when the TTL port sends data
	RXD	RX indicator, lights up when the TTL port receives data
APPEARANCE	Case	Rail-mount ABS case, suitable for 35mm DIN rail
APPEARANCE	Dimensions	91.6 × 58.7 × 23.3mm

Primary Function

For Converting The TTL Signal Into RS232 Signal And
Expanding Communication Distance

Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

Multiple Protection, Safe And Stable

Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard ESD protection and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance

TTL To RS232 converter, onboard multiple protections

Interface Introduction

TOP SIDE SCREW TERMINAL		BOTTOM SIDE SCREW TERMINAL
VCC	Power Input DC 3.3V~5V power supply	SGND	RS232 signal ground
GND	Ground / TTL signal ground	SGND	RS232 signal ground
TXD	TTL transmit data pin	TXD	RS232 transmit data pin
RXD	TTL receive data pin	RXD	RS232 receive data pin

Communication Connection Diagram

TTL convert to RS232, point-to-point, full-duplex communication, suitable for interface conversion

TTL To RS232 converter, communication connection demo one

Two groups TTL To RS232 conversion, point-to-point, full-duplex communication, suitable for extending the communication distance of TTL

TTL To RS232 converter, communication connection demo two

Application Examples

The TTL To RS232 (B) can be widely used for point-to-point communication network between two hosts, or between host and MCU/Peripheral. It also can be used in application scenarios that require TTL To RS232 conversion such as Industrial Automation and IoT.
