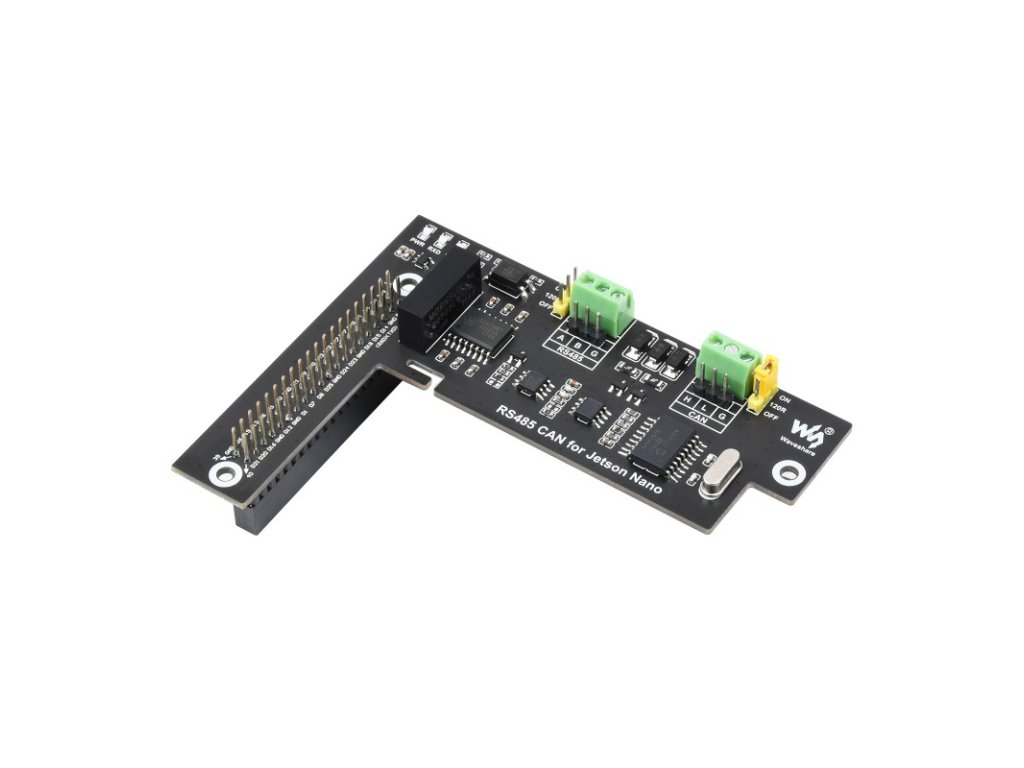

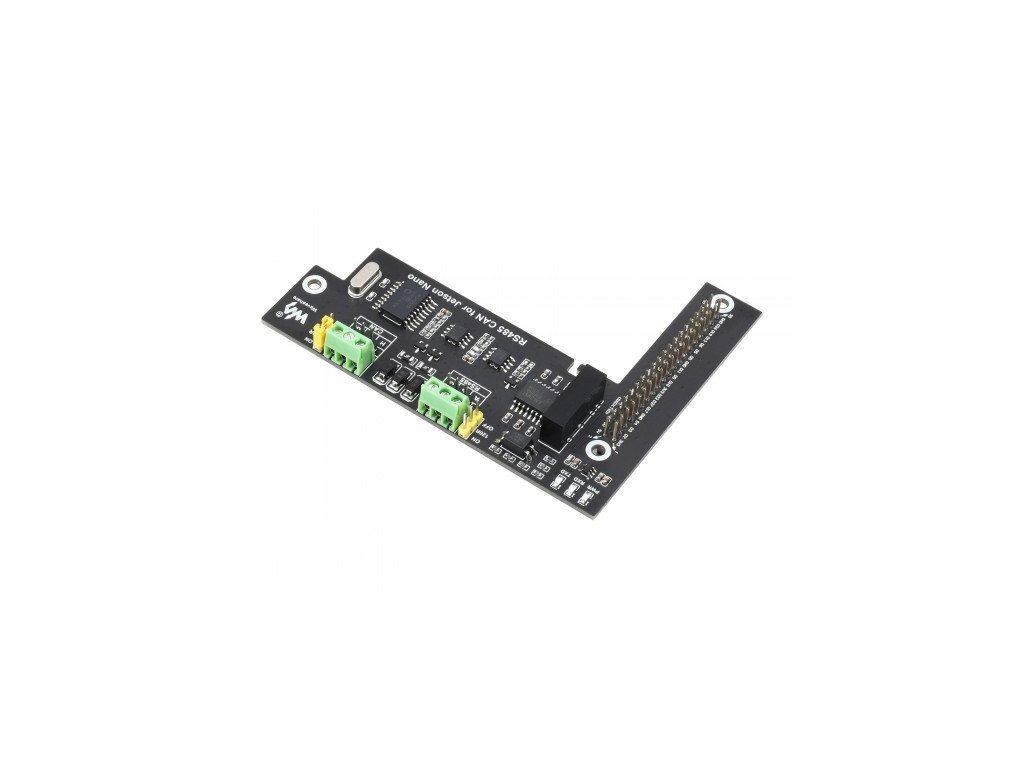

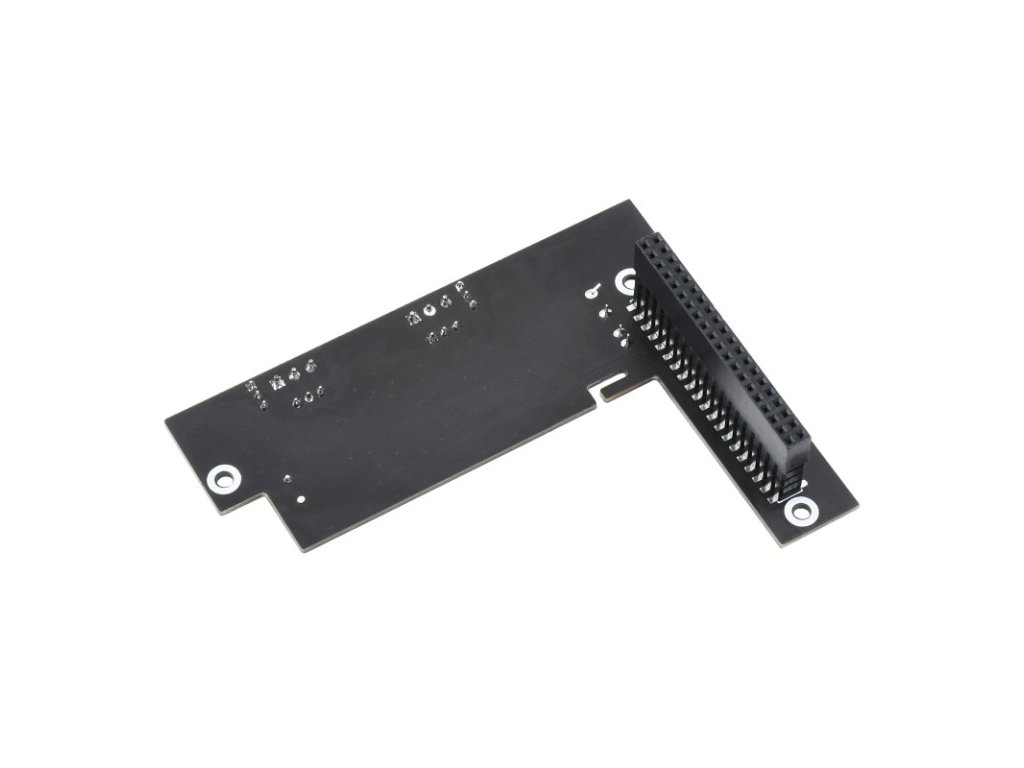

    RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit

    RS485 CAN Expansion Board Designed For Jetson Nano, Digital Isolation, Built-In Protection Circuit
    RS485 CAN Expansion Board

    Designed for Jetson Nano


    Features At A Glance
    • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
    • Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
    • Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
    • Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
    • Reserved control pins, allows to work with other control boards
    • Comes with development resources and manual (examples in python)
    Specifications
    CAN CONTROLLERMCP2515
    CAN TRANSCEIVERSIT65HVD230DR
    RS485 TRANSCEIVERSP3485
    OPERATING VOLTAGE3.3V
    MOUNTING HOLE SIZE3.0mm
    DIMENSION100 × 79mm


    Connect To Jetson Nano

    B01 4GB Version



    2GB Version

    Features RS485 And CAN Function
    Isolation Circuit Design, Safer Communication

    Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static Electricity, Surge Voltage And Transient Peak Voltage, Making RS485 Communication More Stable And Safer

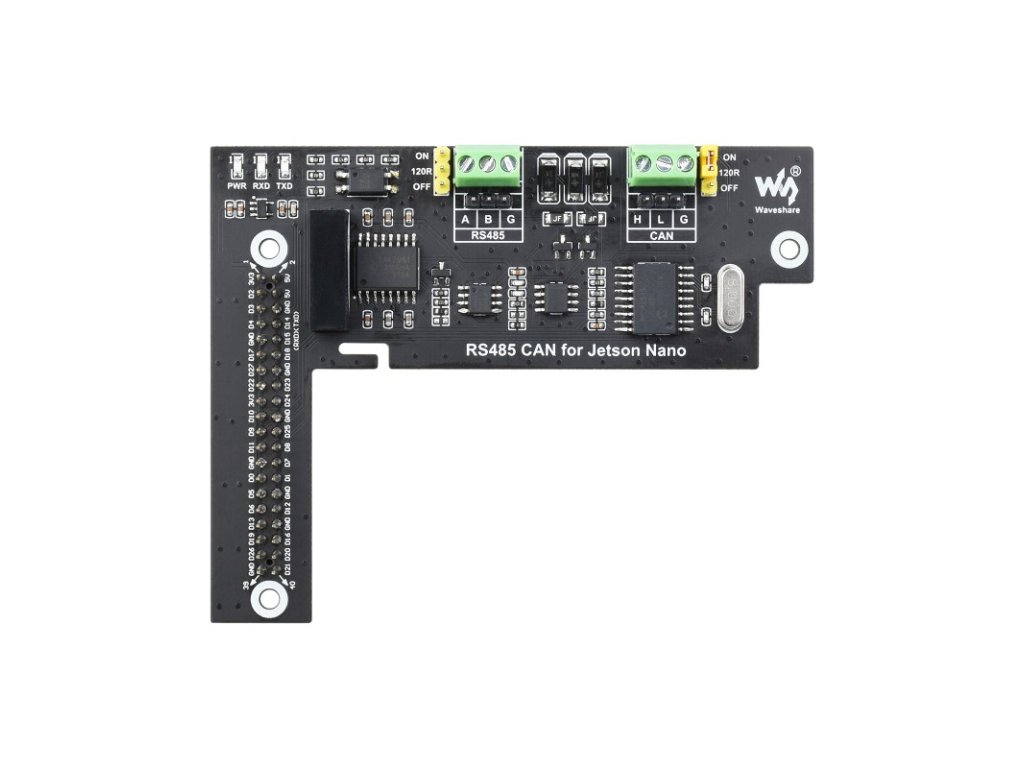

    What's On Board
    1. CAN Controller
      MCP2515
    2. CAN Transceiver
      SIT65HVD230DR
    3. RS485 Transceiver
      SP3485
    4. Power Isolator
      B0505LS

    1. Digital Isolator Chip
      ADUM1412
    2. Optocoupler Isolation Chip
      PC817X3CSP9F
    3. TVS (Transient Voltage Suppressor)
    4. RXD & TXD Indicator
    5. Power Indicator
    6. Power Chip
      RT9193-33
    Pin Definition
    Outline Dimensions
    Resources & Services
    PACKAGE CONTENT

    Weight: 0.046 kg

    1. RS485 CAN for Jetson Nano x1
    2. Screws pack x1
