    Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck

    Neohodnotené
    Značka: Waveshare

    Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator

    SKU: 27380

    Dostupnosť Skladom (10 ks)
    Môžeme doručiť do:
    30.12.2024
    Možnosti doručenia
    Kód: 23583
    4,20 € / ks 3,50 € bez DPH
    Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck
    Neohodnotené
    Značka: Waveshare
    Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator
    Serial Bus Servo DC Buck Adapter

    7.2V Buck Regulator Designed for Serial Bus Servos

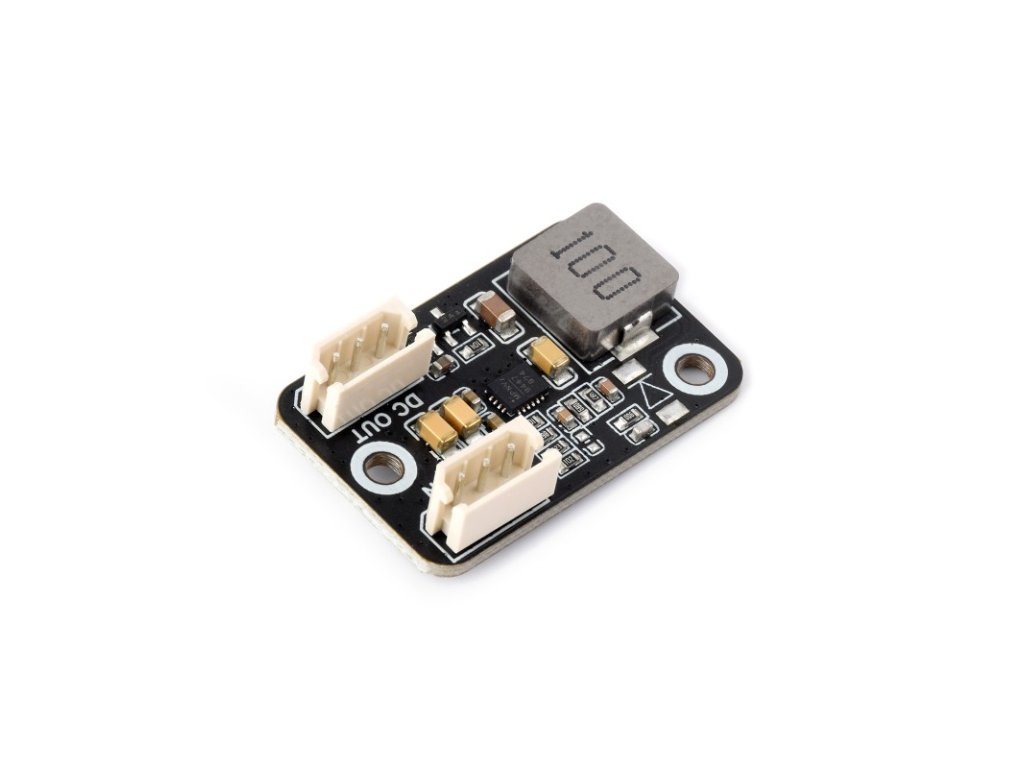

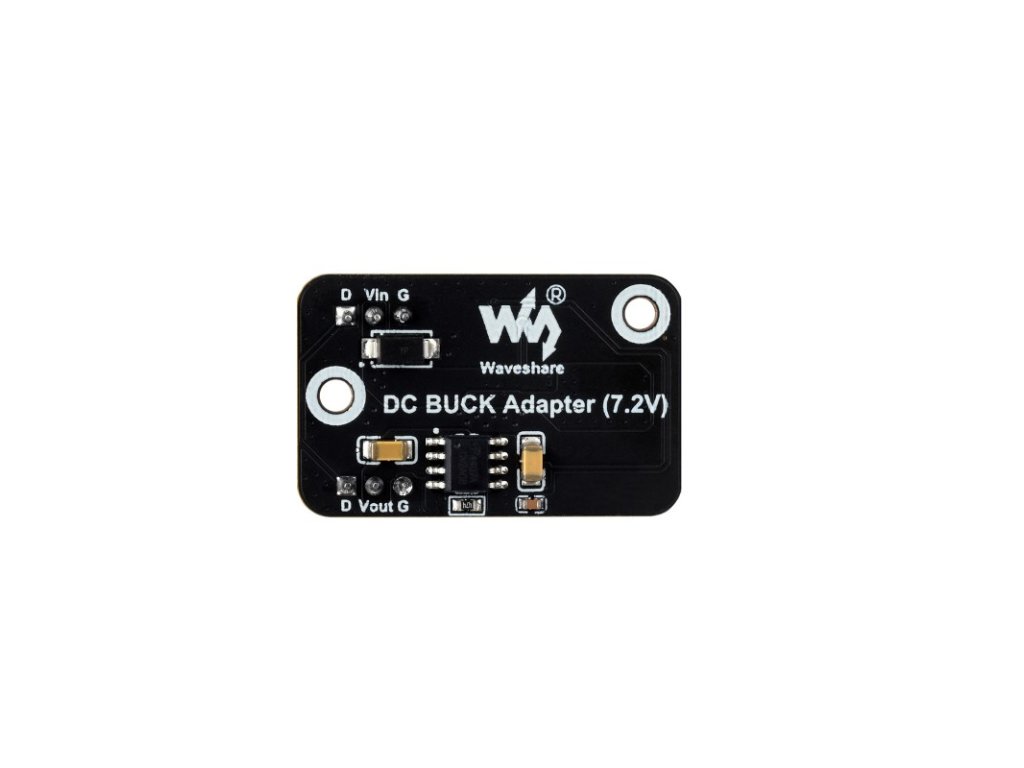

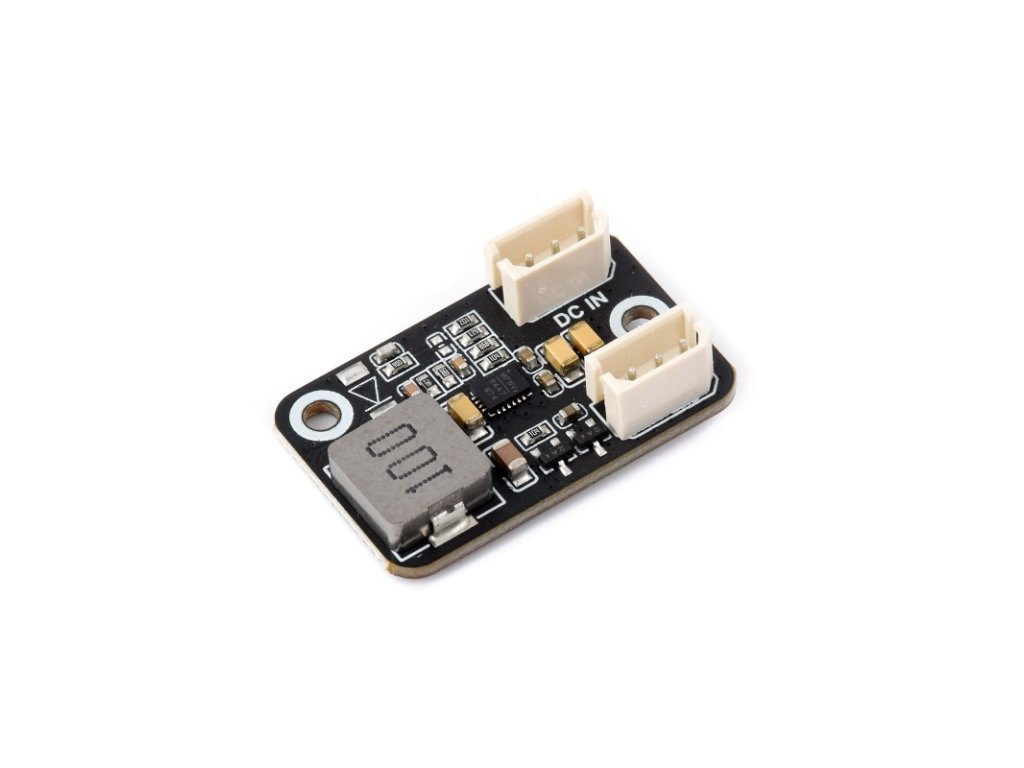

     Serial Bus Servo DC 7.2V Buck Adapter, front view
    Features At A Glance
    • 7.2V buck regulator, suitable for the servos such as SC15 Servo and SC09 Servo
    • Mini size, more space-saving, easy to integrate into the projects
    • 9~36V wide voltage input for more flexible project power selection
    • Simply connect it in series in the servo circuit to use


    Specifications
    INPUT VOLTAGE DC 9~36V
    OUTPUT VOLTAGE DC 7.2V
    INTERFACE SC/ST series servo 5264-3P header
    DIMENSIONS 21.50 × 34.00mm
    MOUNTING HOLE SIZE 2.70mm
    PEAK CURRENT 3A
    Application Examples

    Working With General Driver for Robots driver board, More Flexible for Project Power Selection, Suitable for Serial Bus Servos Such As SC15 Servo and SC09 Servo

    Serial Bus Servo DC 7.2V Buck Adapter, connecting with UPS module, driver board and servo

    for reference only, the UPS module, driver board and servo are NOT included.


    What's Onboard

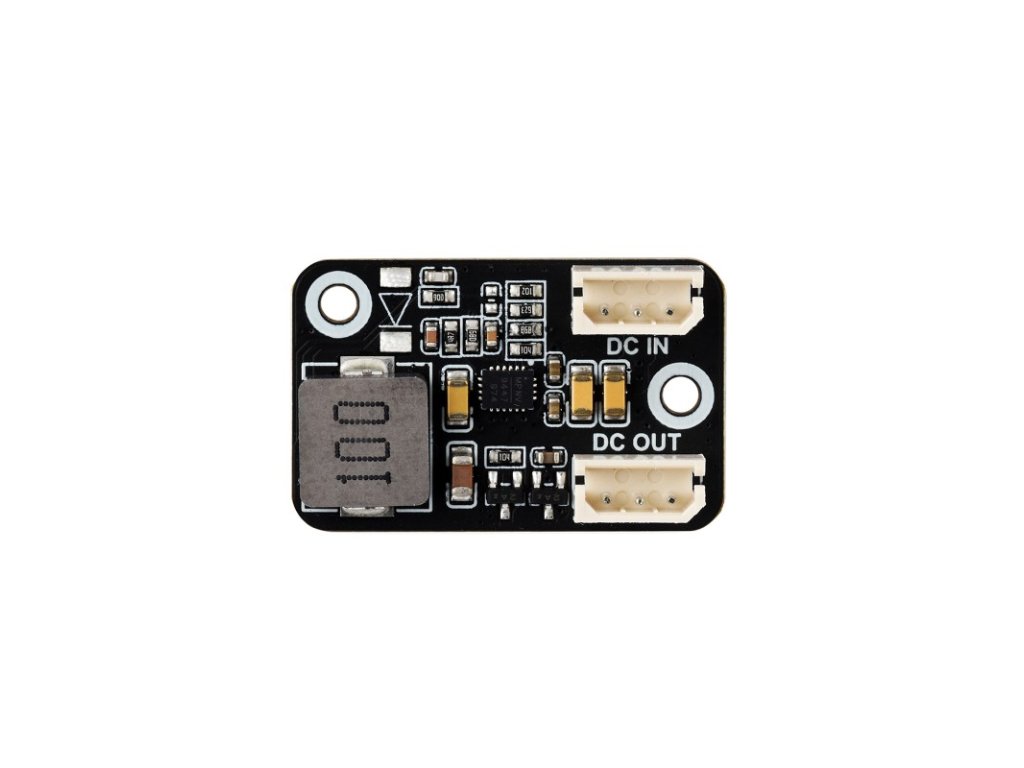

    Serial Bus Servo DC 7.2V Buck Adapter, onboard resources

    Outline dimensions
    Serial Bus Servo DC 7.2V Buck Adapter, outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/DC_BUCK_Adapter_(7.2V)

    Balenie obsahuje :

    Weight: 0.01 kg

    1. DC BUCK Adapter (7.2V) x1
    2. 30cm servo cable x1
    1DC BUCK Adapter (7.2V)
