Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit
Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos
SKU: 25514
Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos
Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos, Small In Size, Easy to Integrate
Features at a glance
- Supports connecting to a host or MCU to control the serial bus servos
- Allows controlling up to 253 ST/SC series serial bus servos at the same time (sufficient power supply required)
- 9~12.6V voltage input (the input voltage and the servo voltage must be matched)
- Provides convenient serial bus servo control solutions
- Integrates control circuit to ensure the stable operation of serial bus servo
- Compact size and space saving, suitable for integration into sorts of space-limited projects
Specifications
| Power Supply | DC 9~12.6V (ST series servo) |
|---|---|
| Power supply connector | 5.5 × 2.1mm DC |
| communication interface | UART |
| Dimensions | 42.00 × 33.00mm |
| Mounting hole size | 2.50mm |
| Mounting hole spacing | 37.00 × 28.00mm |
Application examples
- Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
- Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos
- Compact size, suitable for integration into sorts of space-limited projects
* images here are for reference ONLY
Note: It is NOT recommended to use ST series and SC series servos together. When using different models of the same series, pay attention to whether the power input can meet the requirements of all the servos at the same time.
UART serial bus control
Allows controlling up to 253 SC/ST series serial bus servos at the same time, supports receiving the operating status and various information feedback of each servo
Note: though one channel UART can control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.
Two Power supply methods
Onboard DC5521 power jack and screw terminal for easy integration into existing projects
Supports UART and USB control
Switching the control mode by selecting A or B via the jumper
Comes with development resources and manual

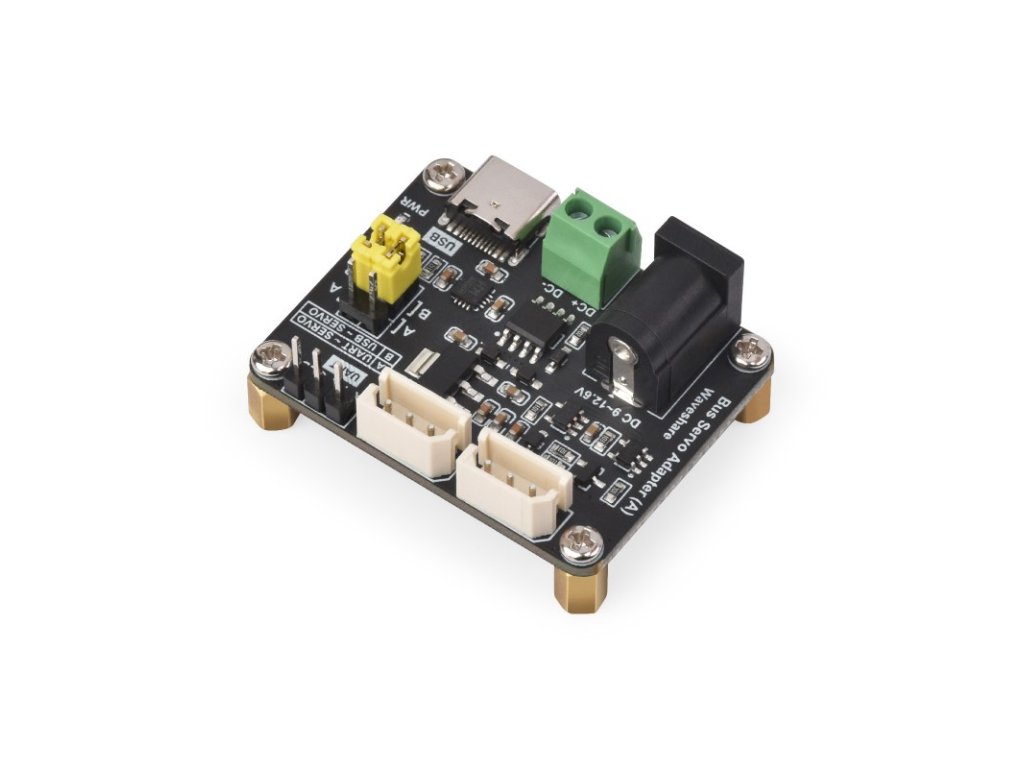

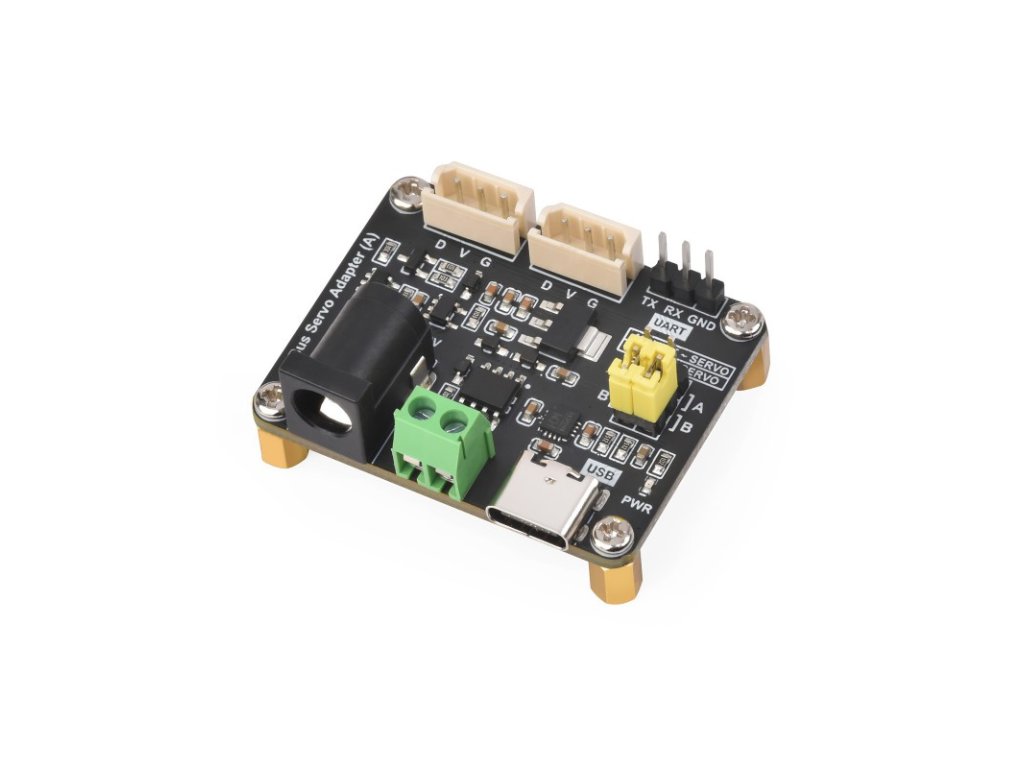

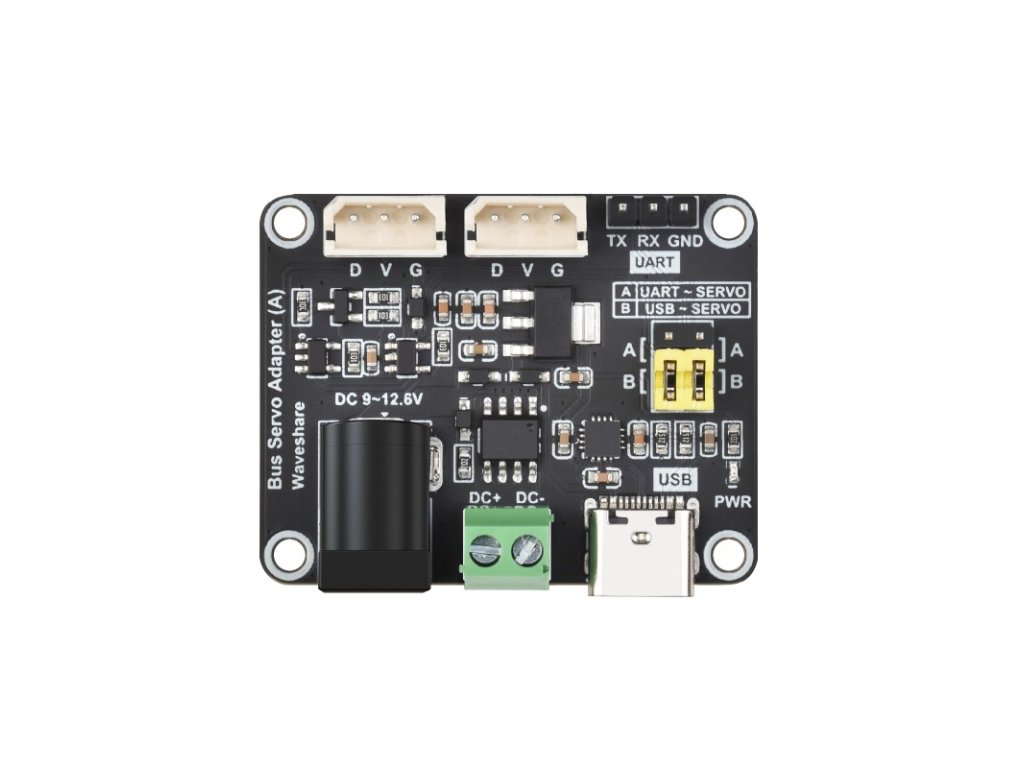

What's On Board
- 5.5*2.1 DC power jack
- Power supply screw terminal
- USB Type-C connector
- Control mode switch jumper
- Serial bus servo control interface
- UART communication interface
Product show
Outline dimensions
Package Content
Weight: 0.016 kg
Bus Servo Adapter (A) x1
