Serial Bus Servo Driver HAT, Integrates ESP32 and Servo Control Circuit, Suitable for ST / RSBL Seri

Neohodnotené

Značka: Waveshare

Serial Bus Servo Driver HAT, Integrates ESP32 and Servo Control Circuit, Suitable for ST / RSBL Series Serial BUS Servos

SKU: 27577

Dostupnosť	Skladom (3 ks)
Môžeme doručiť do:	30.12.2024
Možnosti doručenia
Kód:	23580

22,50 € / ks 18,75 € bez DPH

Serial Bus Servo Driver HAT, Integrates ESP32 and Servo Control Circuit, Suitable for ST / RSBL Seri

Neohodnotené

Značka: Waveshare

Serial Bus Servo Driver HAT, Integrates ESP32 and Servo Control Circuit, Suitable for ST / RSBL Seri

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

Serial Bus Servo Driver HAT, Integrates ESP32 and Servo Control Circuit, Suitable for ST / RSBL Series Serial Bus Servos

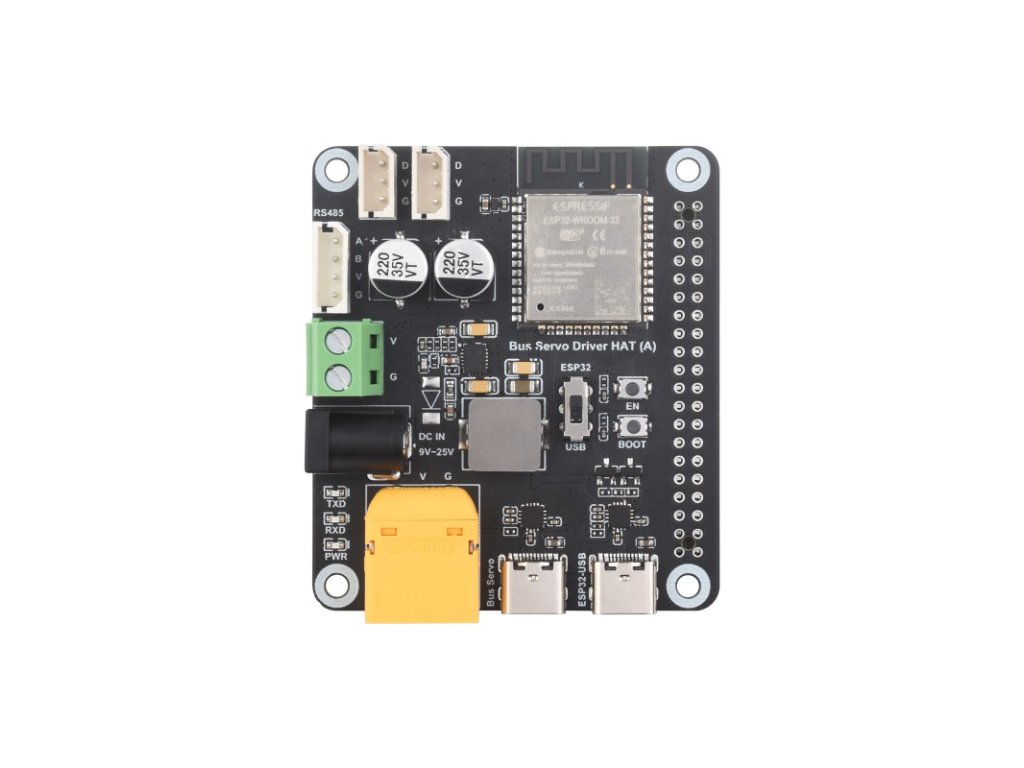

Serial bus servo driver HAT

Designed for Serial Bus Servos, Integrates ESP32 and Servo Control Circuit

Allows controlling up to 253 serial bus servos at the same time via ESP32 UART or USB port, can be used as the main controller of the robotics projects

Features at a glance

Allows controlling up to 253 ST / RSBL series serial bus servos at the same time
9~25V wide voltage input (the input voltage and the servo voltage must be matched)
Based on the ESP32-WROOM-32 module, supports wired and wireless communication
Provides multiple control demos for different host controllers
Supports controlling the serial bus servos directly via onboard USB Type-C port

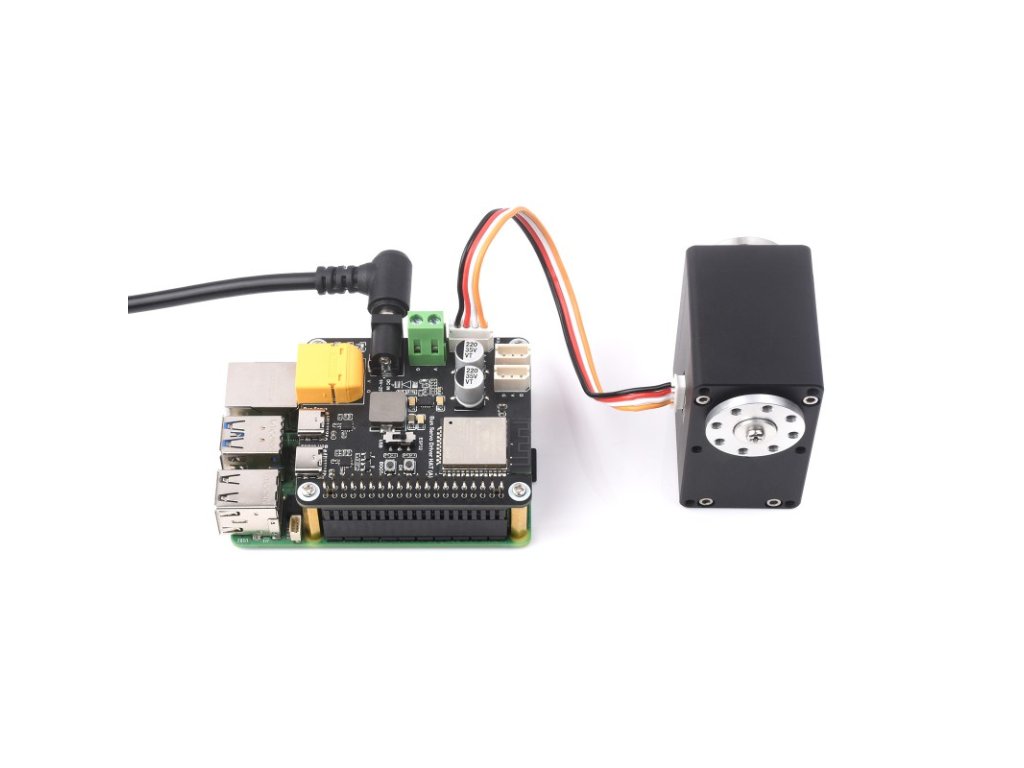

Supports connecting to Raspberry Pi, powering the Pi via integrated 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management

Specifications

Controller	ESP32-WROOM-32
Power supply Port	XT60 connector, 5.5×2.5 mm DC jack
Power Supply	9~25V (the input voltage and the servo voltage must be matched)
Communication interface	UART, USB Type-C port × 2
Wireless communication	2.4G WiFi
Mounting hole diameter	3 mm
mounting hole spacing	58×49 mm
PCB size	65×57 mm

Application examples

Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
The host controller can control the serial bus servos by sending JSON commands and obtain feedback information in JSON format, more convenient for secondary development.
Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos

Serial Bus Servo Driver HAT for building quadruped robots

Serial Bus Servo Driver HAT for building hexapod walkers

* images here are for reference ONLY

Compatible Servos

Supports ST / RSBL series bus servos and selecting power supply input according to the servo used

ST3215 Servo

ST3215-HS
Servo Motor

ST3025 Servo

ST3020 Servo

RSBL45-24

RSBL85-12

RSBL85-24

RSBL120-24

Note: When using the different servo models at the same time, please pay attention to whether the power input can meet the requirements of all the servos.

UART serial bus control

Allows controlling up to 253 serial bus servos at the same time

* for reference only, the servos in the picture are NOT included.

Note: though one channel UART can control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.

Wired Control Mode

Supports sending JSON commands to ESP32 for controlling the serial bus servos, or directly sending control commands to the servos via USB Type-C port. Comes with Python demo.

Wireless Control Mode

The Bus Servo Driver HAT (A) Will Automatically Establish A Hotspot after Powering on, Allows Users To Connect And Control The Driver board Via Mobile Phones, Tablets And PCs with the Cross-Platform Web Application we provided
