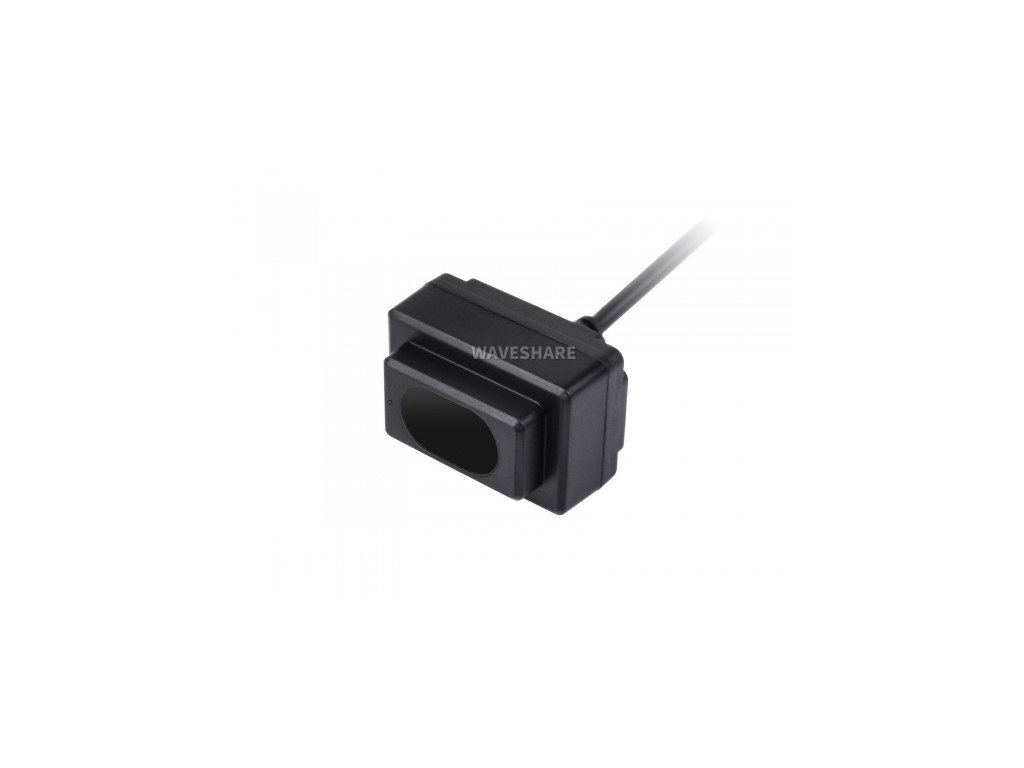

TFmini-i Industrial Lidar Ranging Sensor, 12m Ranging Distance, IP65 Protection, RS485

Neohodnotené

Značka: Waveshare

TFmini-i Industrial Lidar Ranging Sensor, 12m Ranging Distance, IP65 Protection, RS485 Industrial Interface, 7~30V Wide Range Voltage

SKU: 24896

Dostupnosť	Zvyčajne do 3-7 dní
Môžeme doručiť do:	2.1.2025
Možnosti doručenia
Kód:	20798

86,30 € / ks 71,92 € bez DPH

TFmini-i Industrial Lidar Ranging Sensor, 12m Ranging Distance, IP65 Protection, RS485

Neohodnotené

Značka: Waveshare

TFmini-i Industrial Lidar Ranging Sensor, 12m Ranging Distance, IP65 Protection, RS485

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

TFmini-i Industrial Lidar Ranging Sensor, 12m Ranging Distance, IP65 Protection, RS485 Industrial Interface, 7~30V Wide Range Voltage

TFmini-I Industrial Lidar Ranging Sensor, 12m Ranging Distance, IP65 Protection, RS485 Industrial Interface, 7~30V Wide Range Voltage, Laser Ranging Module

TFmini-I Industrial Lidar Ranging Sensor

12m Ranging Distance IP65 Protection RS485 Interface

7~30V Wide Range Voltage

Specifications

PERFORMANCE
Ranging distance	0.1~12.0m @90% reflectivity (Indoor 0klux) 0.1~7.0m @10% reflectivity (Indoor 0klux) 0.1~12.0m @90% reflectivity (Outdoor 70klux) 0.1~7.0m @10% reflectivity (Outdoor 70klux)	Accuracy	±6cm@(0.1~6m) ±1%@(6~12m)
Frame rate	1~40Hz	Distance resolution	1cm
Ambient light resistance	70klux	Protection level	IP65
OPTICAL PARAMETERS
Light source	VCSEL	Central wavelength	850nm
Eye safety	Class1 (IEC60825)	Field of view	2°
ELECTRICAL PARAMETERS
Power supply	DC 7V~30V	Average current	≤65mA@12V
Power	≤0.8W@12V	Peak current	100mA@12V
OTHERS
Dimension	50 × 34 × 41mm	Case material	ABS/PC/PMMA
Operating temperature	-20~60℃	Storage temperature	-30~75℃
Weight	52g	Cable length	70cm

TOF Ranging Principle

The TFmini-i is based on the Time-of-Flight (TOF) principle. To be specific, it periodically emits modulation wave of near-infrared outward, which will be reflected after contacting the object. The sensor obtains the time of flight by measuring round-trip phase difference and then calculates the relative range between the sensor and the detection object.

Safer And More Stable

Adopts IP65 Protection Level, It Is Safer And More Stable To Use, Suitable For Industrial Application Scenarios

Wide Range Power Supply

Supports Wide Range Power Input (7V~30V), With Reverse Protection In The Internal Circuit

Supports RS485 Interface

For Connecting To Various Industrial Control Boards With RS485 Industrial Interface

NUMBER	COLOR	FUNCTION	DESCRIPTION
1	Red	VCC	Power supply
2	White/Yellow	RS485-B	RS485-B
3	Green	RS485-A	RS485-A
4	N/A	-	-
5	Blue/Orange	UART_RXD	UART receive (debug)
6	Brown	UART_TXD	UART transmit (debug)
7	Black	GND	Ground
