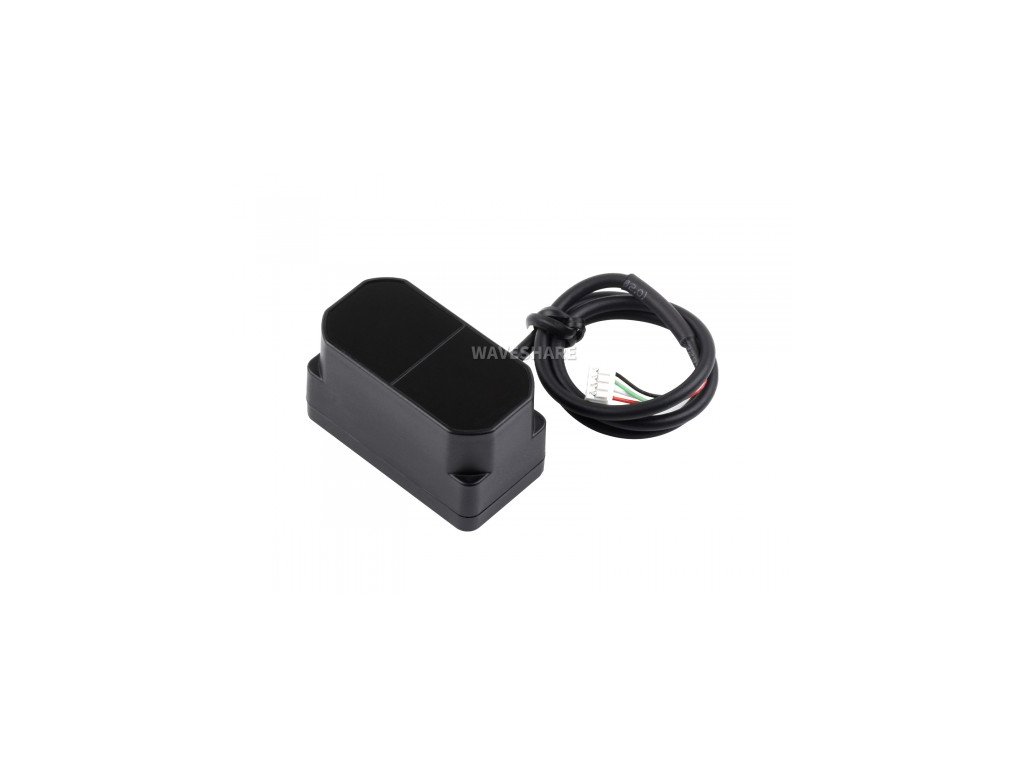

TFmini Plus Laser Ranging Sensor, 12m Ranging Distance, High Frame Rate, Small Blind Zone

Neohodnotené
Značka: Waveshare

TFmini Plus Laser Ranging Sensor, 12m Ranging Distance, High Frame Rate, Small Blind Zone, High Accuracy

SKU: 24895

Dostupnosť Skladom (1 ks)
Môžeme doručiť do:
2.4.2025
Možnosti doručenia
Kód: 20801
58,50 € / ks 47,56 € bez DPH
TFmini Plus Laser Ranging Sensor, 12m Ranging Distance, High Frame Rate, Small Blind Zone
Neohodnotené
Značka: Waveshare
TFmini Plus Laser Ranging Sensor, 12m Ranging Distance, High Frame Rate, Small Blind Zone
Loading...
14 dní na vrátenie
14 dní
na vrátenie tovaru
Objednávka do 12:30
Do 12:30 objednané
ešte dnes odoslané
Vernostné zľavy 5%
Vernostné zľavy 5%
pre registrovaných zákazníkov

TFmini Plus Laser Ranging Sensor, 12m Ranging Distance, High Frame Rate, Small Blind Zone, High Accuracy

TFmini Plus Laser Ranging Sensor, 12m Ranging Distance, High Frame Rate, Small Blind Zone, High Accuracy, Laser Ranging Module
TFmini-Plus Lidar Ranging Sensor

12m Ranging Distance IP65 Protection High Frame Rate

Small Blind Zone High Accuracy



Specifications
PERFORMANCE
Ranging distance0.1~12.0m @90% reflectivity (Indoor 0klux)
0.1~4.0m @10% reflectivity (Indoor 0klux)
0.1~12.0m @90% reflectivity (Outdoor 70klux)
0.1~4.0m @10% reflectivity (Outdoor 70klux)		Accuracy±5cm@(0.1~5m)
±1%@(5~12m)
Frame rateUART: 1~1000Hz (adjustable, default 100Hz)
I2C: 1~100Hz (adjustable)		Repeatability1σ： <3cm (@100Hz UART)
1σ： <4cm (@100Hz I2C)
Distance resolution1cmAmbient light resistance70klux
Operating temperature-20~60℃Protection levelIP65
OPTICAL PARAMETERS
Light sourceLEDCentral wavelength850nm
Eye safetyExemption level (EN62471)Field of view3.6°
ELECTRICAL PARAMETERS
Power supply5V±0.5VAverage current≤110mA
Power550mW（low power consumption mode: <100mW）Peak current140mA
Communication levelLVTTL (3.3V)Communication interfaceUART, I2C, I/O
OTHERS
Dimension35.0 × 18.5 × 21.0mmCase materialABS/PC
Storage temperature-20~75℃Weight12g±1g
Cable length30cm

High Protection And High Frame Rate

Apart from the three major advantages of TFmini: low cost, small size, and low power consumption, the TFmini Plus further improves its overall performance, enhances the output frame rate, data stability and accuracy, also reduces the ranging blind zone, and adds IP65 protection.

Powerful Adaptability

Built-In Multiple Adaptive Algorithms, Multiple Adjustable Configurations And Parameters, Features Excellent Ranging Performance In Complex Environments And Can Meet More Application Requirements

High Performance, Small Size

Adopts A Simple And Compact Structural Design, With Excellent Performance, Suitable For Various Intelligent Applications.

Safer And More Stable

Adopts IP65 Protection Level And Has Passed UAV-Grade Vibration Test,
Suitable For Industrial Application Environments


Supports UART And I2C Interfaces

For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

NUMBERCOLORFUNCTIONDESCRIPTION
1Red+5Vpower input
2WhiteRXD/SDAUART RX / I2C data
3GreenTXD/SCLUART TX / I2C clock
4BlackGNDground

Application Scenarios

Product Show


Outline Dimensions
PACKAGE CONTENT

Weight: 0.024 kg

TFmini Plus LiDAR Range Sensor x1
