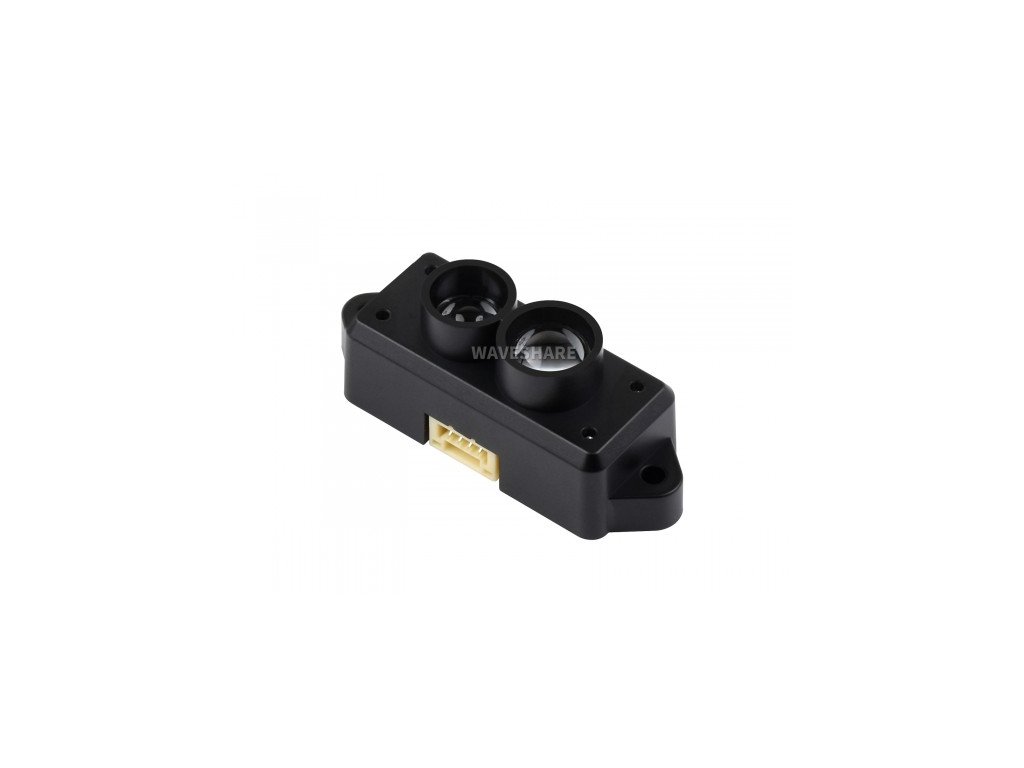

TFmini-S Lidar Ranging Sensor, 12m Ranging Distance, Low Power, High Frame Rate, Compact Size

Neohodnotené
Značka: Waveshare

TFmini-S Lidar Ranging Sensor, 12m Ranging Distance, Low Power, High Frame Rate, Compact Size and Easy to integrate

SKU: 24894

Dostupnosť Skladom (1 ks)
Môžeme doručiť do:
2.4.2025
Možnosti doručenia
Kód: 20802
52,50 € / ks 42,68 € bez DPH
TFmini-S Lidar Ranging Sensor, 12m Ranging Distance, Low Power, High Frame Rate, Compact Size
Neohodnotené
Značka: Waveshare
TFmini-S Lidar Ranging Sensor, 12m Ranging Distance, Low Power, High Frame Rate, Compact Size
Loading...
14 dní na vrátenie
14 dní
na vrátenie tovaru
Objednávka do 12:30
Do 12:30 objednané
ešte dnes odoslané
Vernostné zľavy 5%
Vernostné zľavy 5%
pre registrovaných zákazníkov

TFmini-S Lidar Ranging Sensor, 12m Ranging Distance, Low Power, High Frame Rate, Compact Size and Easy to integrate

TFmini-S Lidar Ranging Sensor, 12m Ranging Distance, Low Power, High Frame Rate, Compact Size And Easy To Integrate, Mini Laser Ranging Module
TFmini-S Lidar Ranging Sensor

12m Ranging Distance High Frame Rate Low Power

Compact Size Easy Integration




Specifications
PERFORMANCE
Ranging distance0.1~12.0m @90% reflectivity (Indoor 0klux)
0.1~7.0m @10% reflectivity (Indoor 0klux)
0.1~12.0m @90% reflectivity (Outdoor 70klux)
0.1~7.0m @10% reflectivity (Outdoor 70klux)		Accuracy±6cm@(0.1~6m)
±1%@(6~12m)
Frame rateUART: 1~1000Hz (adjustable, default 100Hz)
I2C: 1~100Hz (adjustable)		Distance resolution1cm
Ambient light resistance70kluxOperating temperature0~60℃
OPTICAL PARAMETERS
Light sourceVCSELCentral wavelength850nm
Eye safetyClass1 (EN60825)Field of view2°
ELECTRICAL PARAMETERS
Power supply5V±0.1VAverage current≤140mA
Power≤0.7WPeak current200mA
Communication levelLVTTL (3.3V)Communication interfaceUART, I2C, I/O
OTHERS
Dimension42 × 15 × 16mmCase materialABS/PC
Storage temperature-20~75℃Weight5g±0.3g
Cable length10cm

High Performance And High Sensitivity

Adopts Unique Optical And Electrical Design, For More Stable, Accurate, And Sensitive Performance

Powerful Adaptability

Built-In Multiple Adaptive Algorithms, Multiple Adjustable Configurations And Parameters, Features Excellent Ranging Performance In Complex Environments And Can Meet More Application Requirements

High Frame Rate And More Stable

Up To 1000Hz Output Frequency, With Stable Performance, Suitable For More Intelligent Applications

Compact Size, More Flexible Integration

It Is Compact And With A Detection Blind Area Of Less Than 10cm, Provides Excellent Ambient Light Resistance, And Is UART/I2C Communication Interface Switchable

Low Power Consumption, More Power Saving

Power Consumption ≤ 0.7W, Which Can Reduce System Power Consumption And Extend Service Lifespan


Supports UART And I2C Interfaces

For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

NUMBERCOLORFUNCTIONDESCRIPTION
1BlackGNDground
2Red+5Vpower input
3WhiteRXD/SDAUART RX / I2C data
4GreenTXD/SCLUART TX / I2C clock

Application Scenarios

Product Show


Outline Dimensions
PACKAGE CONTENT

Weight: 0.017 kg

TFmini-S LiDAR Range Sensor x1
