UGV Rover ROS 2 Open-source 6 Wheels 4WD AI Robot, Rover PI4B ROS2 Kit Raspberry Pi 4 NOT Included

Neohodnotené
Značka: Waveshare

UGV Rover ROS 2 Open-source 6 Wheels 4WD AI Robot, Dual controllers, All-metal Body, Flexible and Expandable, Suitable for Raspberry Pi 4B / Raspberry Pi 5 UGV Rover PI4B ROS2 Kit Raspberry Pi 4 NOT Included

SKU: 28845

Dostupnosť Na dotaz
Možnosti doručenia
Kód: 24109
642 € / ks 535 € bez DPH
UGV Rover ROS 2 Open-source 6 Wheels 4WD AI Robot, Rover PI4B ROS2 Kit Raspberry Pi 4 NOT Included
Neohodnotené
Značka: Waveshare

UGV Rover ROS 2 Open-source 6 Wheels 4WD AI Robot, Dual controllers, All-metal Body, Flexible and Expandable, Suitable for Raspberry Pi 4B / Raspberry Pi 5 UGV Rover PI4B ROS2 Kit Raspberry Pi 4 NOT Included

UGV Rover ROS 2 Open-source 6 Wheels 4WD AI Robot, Dual controllers, Computer Vision, Comes With Interactive Tutorials, All-metal Body, Flexible and Expandable, Suitable for Raspberry Pi 4B / Raspberry Pi 5
UGV Rover AI Robot, optional for Pan-Tilt Module, usage scenario UGV Rover AI Robot features
Features at a glance

The UGV Rover ROS2 Kit is an AI robot designed for exploration and creation with excellent expansion potential, based on ROS 2 and equipped with Lidar and depth camera, seamlessly connecting your imagination with reality. Suitable for tech enthusiasts, makers, or beginners in programming, it is your ideal choice for exploring the world of intelligent technology.

Equipped with the high-performance Raspberry Pi computer to meet the challenges of complex strategies and functions, and inspire your creativity. Adopts dual-controller design, combines the high-level AI functions of the host controller with the high-frequency basic operations of the sub controller, making every operation accurate and smooth.

Easy to be controlled remotely via UGV Rover Web Application without downloading any software, just open your browser and start your journey. You can use the basic ROS 2 functions of the robot without installing a virtual machine on the PC. Supports high-frame rate real-time video transmission and multiple AI Computer Vision functions, the UGV Rover is an ideal platform to realize your ideas and creativity!


Kit Selection

Optional Pan-Tilt Module (PT Version only) for better expansion potential. Options for host controller (Raspberry Pi 4B / Raspberry Pi 5), or you can choose the Acce Version if you've got a Pi. All kits are equipped with a camera, mounting accessories, TF card, cooling fan, etc.

Model UGV Rover PT PI4B/PI5 ROS2 Kit UGV Rover PT PI4B/PI5 ROS2 Kit Acce UGV Rover PI4B/PI5 ROS2 Kit UGV Rover PI4B/PI5 ROS2 Kit Acce
UGV Rover PT PI4B/PI5 ROS2 Kit UGV Rover PT PI4B/PI5 ROS2 Kit Acce UGV Rover PI4B/PI5 ROS2 Kit UGV Rover PI4B/PI5 ROS2 Kit Acce
Dimension 230.42×252.40×254.53mm 230.42×252.40×153.55mm
Weight 2251±5g 1935±5g
Chassis height 25mm
Pan-Tilt DOF 2 -
Pan-Tilt SERVO TORQUE 30KG.CM -
Pan-Tilt SERVO ST3215 Servo -
Host controller RPi 4B 4GB / RPi 5 4GB NOT included RPi 4B 4GB / RPi 5 4GB NOT included
Host System support Debian Bookwrom
ROS2 Version ROS2-HUMBLE-LTS
Camera FOV 160°
Power supply 3S UPS Module
Battery support 18650 lithium battery x 3 (NOT included)
Demo control methods Web application / Jupyter Lab interactive programming
Default Max speed 1.3m/s
Number of Driving wheels 4
Number of wheels 6
Tire diameter 80mm
Tire width 42.5mm
Minimum turning radius 0M (In-situ rotation)

Based on Raspberry Pi

Supports Raspberry Pi 5 / Raspberry Pi 4B, with powerful computing performance to handle more complex tasks, offering more possibilities

UGV Rover AI Robot connecting with Raspberry Pi 4B

Connecting with Raspberry Pi 4B


UGV Rover AI Robot connecting with Raspberry Pi 5

Connecting with Raspberry Pi 5


Dual-Controller design, provides efficient collaboration and upgraded performance

The host controller adopts Raspberry Pi for AI vision and strategy planning, and the sub controller uses ESP32 for motion control and sensor data processing

UGV Rover AI Robot with dual-controller design
Raspberry Pi OS + ROS2 Docker

Ensures advanced decision-making performance of robot and system compatibility at the same time. Supports all AI functions of the previous AI Kit series products

UGV Rover AI Robot with Raspberry Pi OS + ROS2 Docker
360° Flexible Omnidirectional Pan-Tilt

equipped with 5MP 160° wide-angle camera for capturing every detail

UGV Rover AI Robot with omnidirectional Pan-Tilt


UGV Rover AI Robot Pan-Tilt control demo

The Pan-Tilt adopts high-torque bus servos with excellent expansion potential, providing a better control experience as FPS games

open source for all ROS 2 Development Resources

open source for all demos of host controller and sub controller, including robot description file (URDF model), sensor data processing node of sub controller, kinematic control algorithms, and various remote control nodes

UGV Rover AI Robot with open source ROS2 resources

Integrates various ROS 2 mapping methods

Meet the needs of mapping in different scenarios

UGV Rover AI Robot Gmapping 2D mapping

Gmapping 2D mapping


UGV Rover AI Robot Cartographer 2D mapping

Cartographer 2D mapping


UGV Rover AI Robot RTAB-Map 2D mapping

RTAB-Map 3D mapping

multiple cost-effective sensors

Adopts multiple sensors with high cost-effectiveness and practicality

UGV Rover AI Robot, adopts multiple sensors
UGV Rover AI Robot with mutiple navigation modes
Auto exploration and mapping

Using SLAM Toolbox to implement mapping and navigation functions simultaneously in unknown environments, simplifying the task execution process. The UGV robot can autonomously explore unknown areas and complete the mapping, suitable for unmanned applications

UGV Rover AI Robot, supports auto exploration and mapping

Supports natural language interaction

Adopts Large language model (LLM) technology, users can give commands to the robot by natural language, enabling it to perform tasks such as moving, mapping, and navigation

UGV Rover AI Robot, supports natural language interaction

Provides Web console tool

You can use the basic ROS 2 functions on the Web without installing a virtual machine on the PC, supports cross-platform operation on Android or iOS tablets. Users can simply open a browser and control the robot for moving, mapping, navigation, and other operations

UGV Rover AI Robot with Web console tool
ROS2 node command interaction

Users can send control commands to the robot by a script for performing operations such as moving, obtaining the current location, and navigating to a specific point, etc. which is more convenient for secondary development

UGV Rover AI Robot ROS2 node command interaction demo

UGV Rover AI Robot ROS2 node moving demo

Gazebo simulation debugging

Provides Gazebo robot mode and complete functionality library for simulation debugging, helping you verify and test the system during the early stages of development

UGV Rover AI Robot, provides Gazebo robot mode

Continuing the adventure as night falls

High-brightness LED light for Ensuring Clear Images In Low-Light Conditions

UGV Rover AI Robot, low-light conditions working demo
Suitable for tactical extension

Comes with 21mm wide rail and 30KG.CM high precision & high-torque bus servo for tactical extension

UGV Rover AI Robot, suitable for tactical extension

for reference only, the accessories in the picture above are NOT included


Standard Aluminum rail

Comes with 2 × 1020 European standard profile rails, and supports installing additional peripherals via the boat nuts to meet different needs, easily expanding the special operation scenarios

UGV Rover AI Robot with standard Aluminum rail for installing additional peripherals

Note: Only the rail, boat nuts, and M4 screws are included, other accessories should be purchased separately.

Supports driving in complex terrain

6 wheels × 4WD design, using 6 wheels can provide a more stable platform and larger contact area, while 4WD can provide stronger power and traction to deal with various terrains and obstacles

UGV Rover AI Robot, supports driving in complex terrain


Easy To Control Via
Cross-Platform Web Application

No App installation required, allows users to connect and control the robot via mobile phones, tablets and computers via browser Web App. Supports shortcut key control such as WASD and the mouse via a PC with keyboard

UGV Rover AI Robot, can be controlled via Web Application
WebRTC real-time video transmission

Adopts Flask lightweight web application, based on WebRTC ultra-low latency real-time transmission, using Python language and easy to extend, working seamlessly with OpenCV

UGV Rover AI Robot with real-time wireless transmission support

Recognition, Tracking, and targeting

based on OpenCV to achieve color recognition and automatic Targeting. supports One-key Pan-Tilt control and automatic LED lighting, allows expansion for more functions

UGV Rover AI Robot color recognition and automatic targeting demo

Face Detection:
Automatic picture or video capturing

based on OpenCV to achieve Face recognition, supports automatic photo taking or video recording once a face is recognized

UGV Rover AI Robot face recognition demo

Intelligent Object Recognition

supports recognizing for many common objects with the default model

UGV Rover AI Robot object recognition demo

Gesture Recognition:
AI Interaction with body language

Combines OpenCV and MediaPipe to realize gesture control of Pan-Tilt and LED

UGV Rover AI Robot photo taking gesture control demo

Gesture control for photo taking


UGV Rover AI Robot blacklight control gesture control demo

LED ON/OFF and blacklight control

More MediaPipe Demos for Easily Creating
Complex Video Processing Tasks

MediaPipe is an open-source framework developed by Google for building cross-platform multimedia processing pipelines, provides a set of pre-built components and tools, its high-performance processing capability enables the robot to respond to and process complex multimedia inputs such as real-time video analytics.

UGV Rover AI Robot face recognition demo

Face Recognition


UGV Rover AI Robot attitude detection demo

Attitude Detection

40PIN GPIO Extended Header

The robot only occupies the URAT interface of the Raspberry Pi GPIO for communication, adapting outer side 40PIN header of the driver board for expanding more peripherals and functions

UGV Rover AI Robot onboard 40PIN GPIO extended header
Obtains real-time information feedback

Real-time monitoring the operating status of the robot

UGV Rover AI Robot to obtain real-time information feedback
Web page command line tool
Multiple Functions for Easier Expansion

Quick to set up, easy to expand
Easily customize and add new functions without Modifying front-end code

UGV Rover AI Robot with Web page command line tool


ESP-NOW Wireless communication
between robots

Based on ESP-NOW communication protocol, multiple robots can communicate with each other without IP or MAC address, achieving multi-device collaboration with 100-microsecond low-latency communication

UGV Rover AI Robot with ESP-NOW wireless communication support
Gamepad Control for better operation Experience

Comes with a wireless gamepad, making robot control more flexible. You can connect the USB receiver to your PC and control the robot remotely via the Internet. Provides open source demo for customizing your own interaction method

UGV Rover AI Robot, supports wireless gamepad control
Supports 4G/5G Expansion

Supports installing 4G/5G module* for the application scenarios without WiFi

UGV Rover AI Robot, supports installing 4G/5G module

* You may need to use Tunneling Service such as Ngrok, Cpolar, or LocalTunnel to expose the local network service of the robot (Flask application) to the Internet so that you can control the robot from anywhere.

realizes remote control across the internet
  • Our web application demos are based on WebRTC for real-time video transmission.
  • WebRTC (Web Real-Time Communications) is a technology that enables web applications and sites to establish peer-to-peer connection and capture optionally stream audio and/or video media, as well as to exchange arbitrary data between browsers without requiring an intermediary.
  • We provide comprehensive Ngrok tutorials* to help you get started quickly and realize robot control across the internet.
UGV Rover AI Robot, web application demos are based on WebRTC for real-time video transmission and robot remote control

* Provides the usage tutorials of Ngrok only, we do not provide any Ngrok accounts or Servers. You can follow our tutorial to open your own Ngrok service, or choose other tunneling services according to your needs.

Supports installing smartphone holder

If you have a spare phone, you can install it on the robot via holder as below, using the phone to create a hotspot for the robot and achieving remote control across the internet at a lower cost

UGV Rover AI Robot, supports installing smartphone holder

* Comes with a smartphone holder with 1/4″ screw in the package

Cross-platform interactive tutorial
Develop while you learn

supports accessing Jupyter Lab via devices such as mobile phones and tablets to read the tutorials and edit the code on the web page, making development easier

UGV Rover AI Robot, supports accessing via Jupyter Lab

UGV Rover AI Robot, controlled by Jupyter Lab via PC

Rich Tutorial Resources

We Provide Complete Tutorials And demos To Help Users Get Started Quickly For Learning and Secondary Development

UGV Rover AI Robot host controller tutorials introduction UGV Rover AI Robot host controller learning tutorials introduction UGV Rover AI Robot ROS2 learning tutorials introduction UGV Rover AI Robot sub controller learning tutorials introduction
Open-source all demos
Full dual-controller technology stack
UGV Rover AI Robot open-source all demos

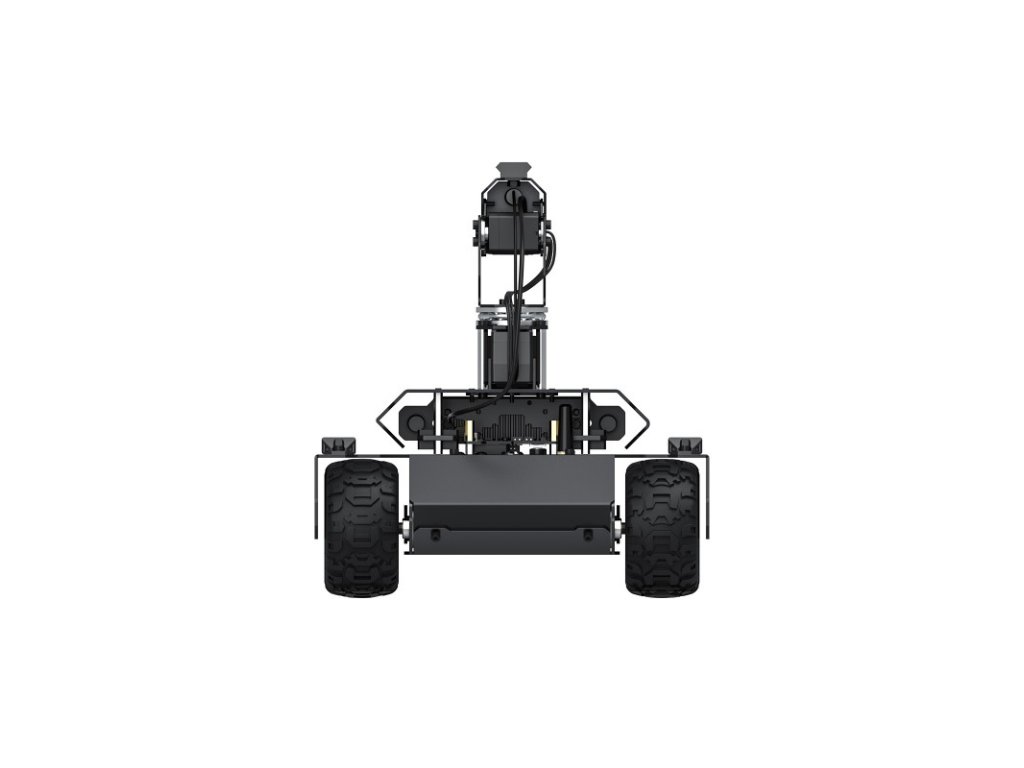

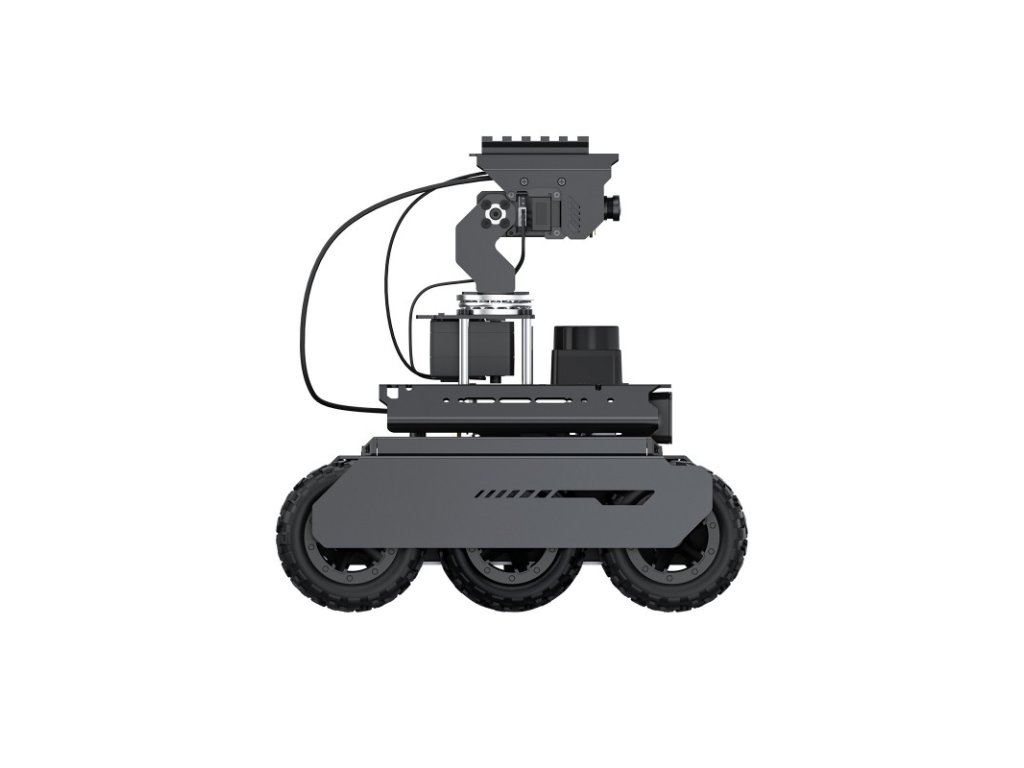

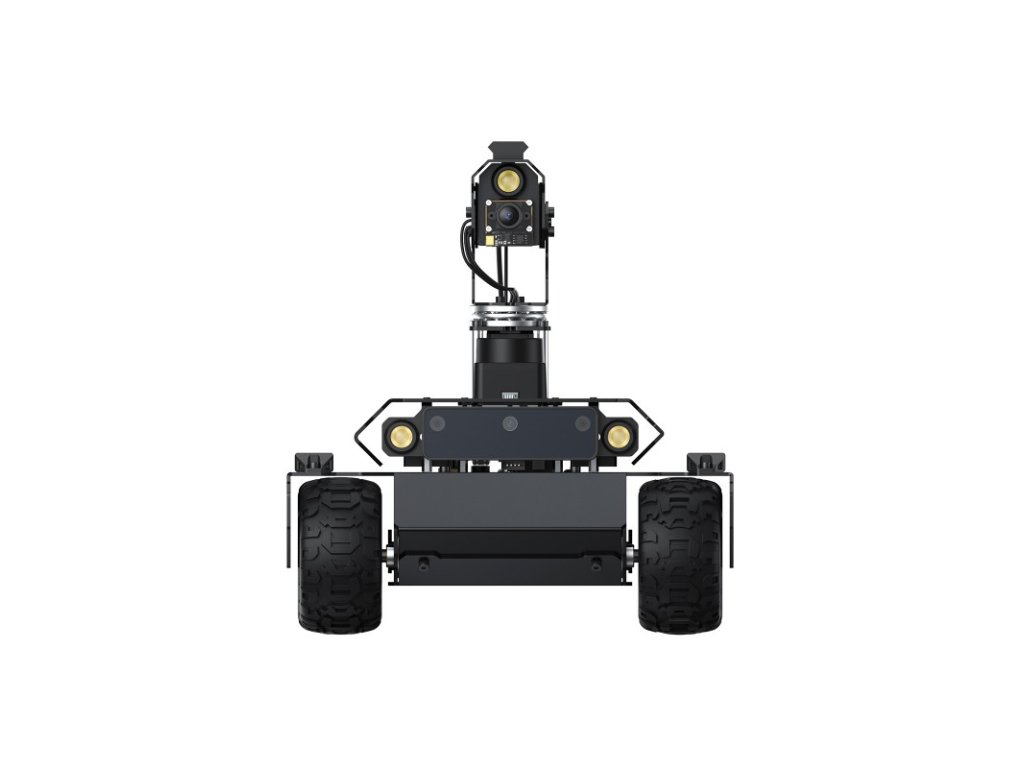

Product Show
UGV Rover AI Robot product show

Outline dimensions
UGV Rover PT AI Kit, outline dimensions UGV Rover AI Kit without PT module, outline dimensions
Resources & Services

Package Content

Weight: 1.287 kg

UGV Rover PI4B ROS2 Kit

UGV Rover PI4B ROS2 Kit
