Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO
SKU: 15082

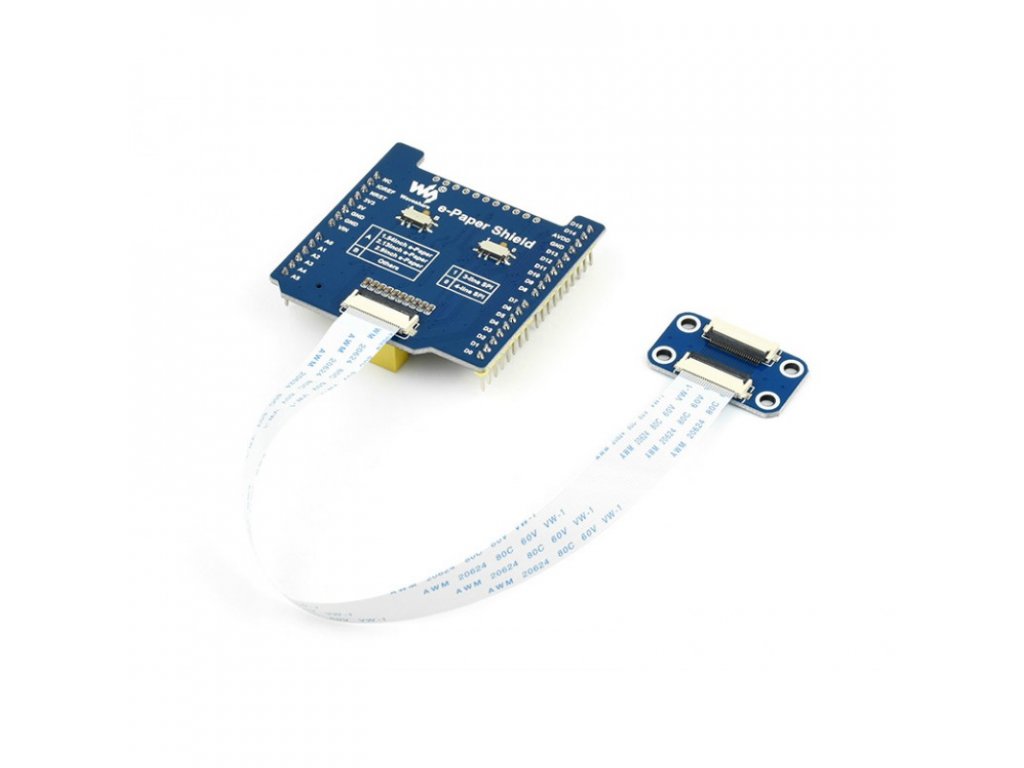

Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO
This is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.
PIN | ARDUINO/NUCLEO PIN | DESCRIPTION |
---|---|---|
VCC | 5V | Power |
GND | GND | Ground |
SCK | SCK | SPI clock input |
MOSI | MOSI | SPI data input |
MISO | MISO | SPI data output |
EPD_CS | D10 | e-Paper chip selection |
EPD_DC | D9 | e-Paper data/command |
EPD_RST | D8 | e-Paper reset |
EPD_BUSY | D7 | e-Paper busy |
SD_CS | D6 | SD card chip selection |
SPIRAM_CS | D5 | SPI RAM chip selection |
Wiki : www.waveshare.com/wiki/e-Paper_Shield
PART NUMBER | COLORS | GRAY SCALE | RESOLUTION | DISPLAY SIZE (MM) | OUTLINE DIMENSION (MM) | FULL REFRESH TIME* (S) | PARTIAL REFRESH | INTERFACE |
---|---|---|---|---|---|---|---|---|
1.54inch e-Paper | black, white | 2 | 200x200 | 27.60 × 27.60 | 31.8 × 37.3 | 2 | √ | SPI |
1.54inch e-Paper (B) | red, black, white | 2 | 200x200 | 27.60 × 27.60 | 31.8 × 37.3 | 8 | × | SPI |
1.54inch e-Paper (C) | yellow, black, white | 2 | 152x152 | 27.51 × 27.51 | 31.8 × 37.3 | 27 | × | SPI |
2.13inch e-Paper | black, white | 2 | 250x122 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | √ | SPI |
2.13inch e-Paper (B) | red, black, white | 2 | 212x104 | 48.55 × 23.71 | 59.2 × 29.2 | 15 | × | SPI |
2.13inch e-Paper (C) | yellow, black, white | 2 | 212x104 | 48.55 × 23.71 | 59.2 × 29.2 | 15 | × | SPI |
2.13inch e-Paper (D) | black, white | 2 | 212x104 | 48.55 × 23.71 | 59.2 × 29.2 | 2 | √ | SPI |
2.7inch e-Paper | black, white | 4 | 264x176 | 57.29 × 38.19 | 70.4 × 45.8 | 6 | × | SPI |
2.7inch e-Paper (B) | red, black, white | 2 | 264x176 | 57.29 × 38.19 | 70.4 × 45.8 | 15 | × | SPI |
2.9inch e-Paper | black, white | 2 | 296x128 | 66.89 × 29.05 | 79.0 × 36.7 | 2 | √ | SPI |
2.9inch e-Paper (B) | red, black, white | 2 | 296x128 | 66.89 × 29.05 | 79.0 × 36.7 | 15 | × | SPI |
2.9inch e-Paper (C) | yellow, black, white | 2 | 296x128 | 66.89 × 29.05 | 79.0 × 36.7 | 15 | × | SPI |
2.9inch e-Paper (D) | black, white | 2 | 296x128 | 66.90 × 29.06 | 79.0 × 36.7 | 3 | √ | SPI |
4.2inch e-Paper | black, white | 4 | 400x300 | 84.80 × 63.60 | 90.1 × 77.0 | 4 | × | SPI |
4.2inch e-Paper (B) | red, black, white | 2 | 400x300 | 84.80 × 63.60 | 90.1 × 77.0 | 15 | × | SPI |
4.2inch e-Paper (C) | yellow, black, white | 2 | 400x300 | 84.80 × 63.60 | 90.1 × 77.0 | 15 | × | SPI |
5.83inch e-Paper | black, white | 2 | 600x448 | 118.80 × 88.26 | 125.4 × 99.5 | 3.5 | × | SPI |
5.83inch e-Paper (B) | red, black, white | 2 | 600x448 | 118.80 × 88.26 | 125.4 × 99.5 | 14 | × | SPI |
5.83inch e-Paper (C) | yellow, black, white | 2 | 600x448 | 118.80 × 88.26 | 125.4 × 99.5 | 26 | × | SPI |
7.5inch e-Paper | black, white |
