UPS Module for Raspberry Pi Pico, Uninterruptible Power Supply, Li-po battery, stackable design
Uninterruptible Power Supply for Pico

Keeps your Pico running while recharging, monitoring battery via I2C, stackable design

SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
  • Do not mix use old batteries with new ones, avoid using batteries of different brands.
  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Features at a glance

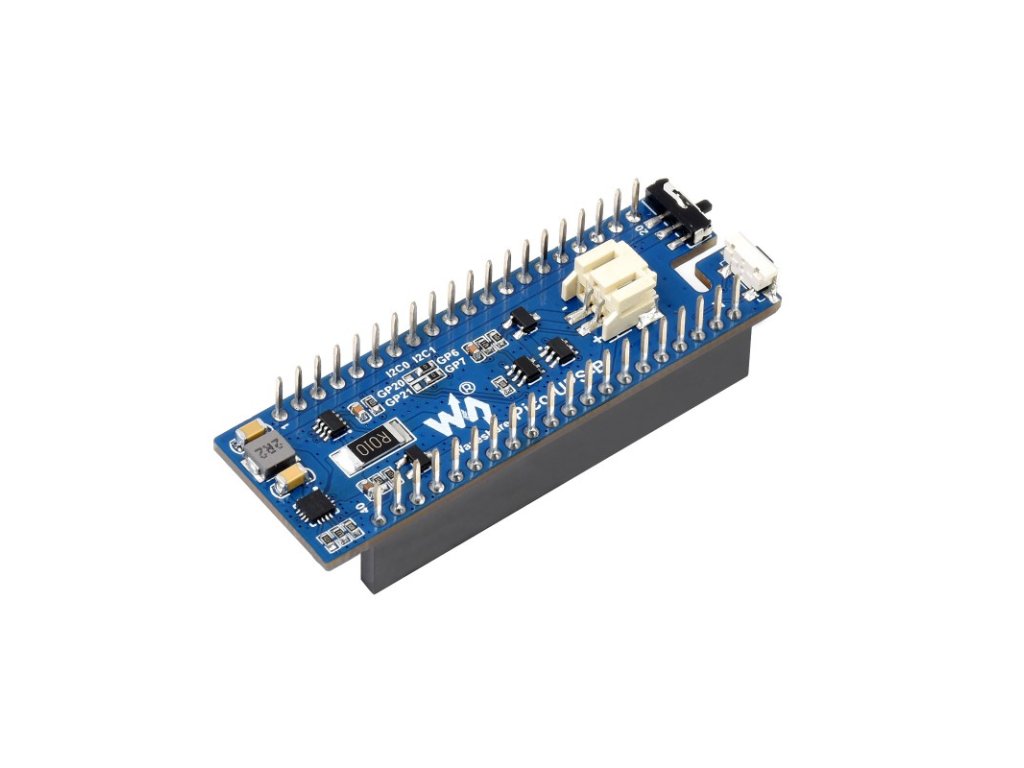

The Pico-UPS-B is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-po battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus. What's more, the male pin header make it possible to "stack" other modules on top.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Incorporates Li-po battery switching charger with dynamic power path management, more stable power supply
  • I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, more safe and stable
  • Onboard recharging indicator, power indicator, easy to check the battery status
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
Recharge voltage 5V
Control bus I2C

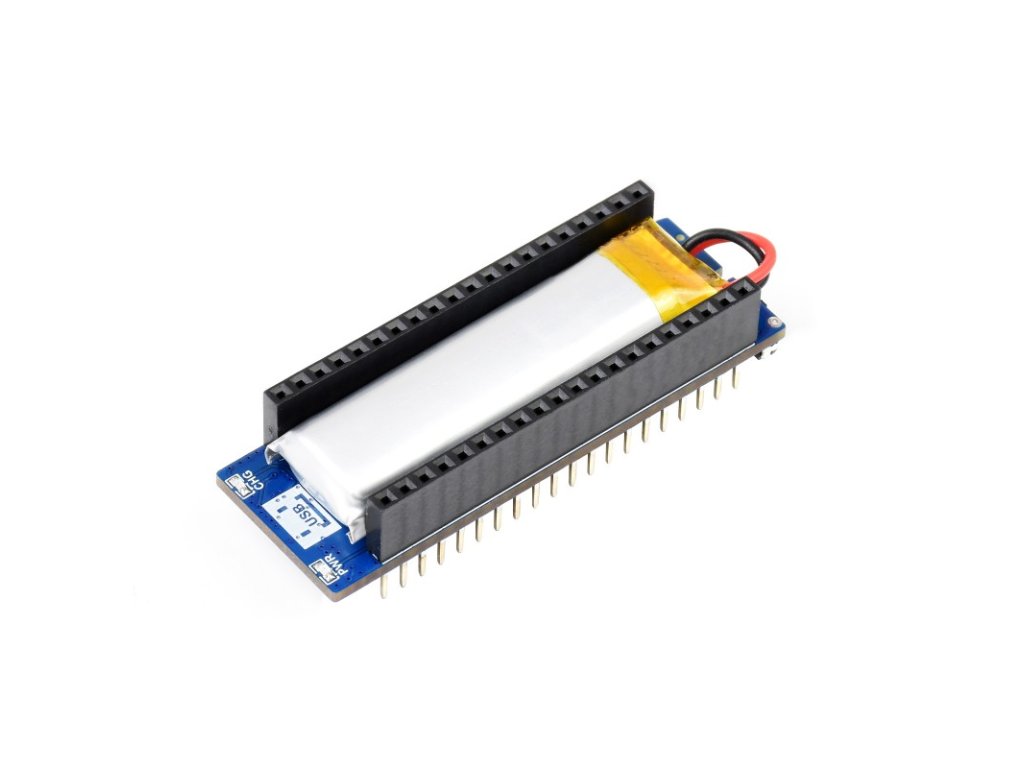

Battery support 600mAh 3.7V Li-po battery
Dimensions 60 × 21mm
Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico,
male pin header for stacking other modules

Raspberry Pi Pico and Pico-LCD-0.96 are NOT included.

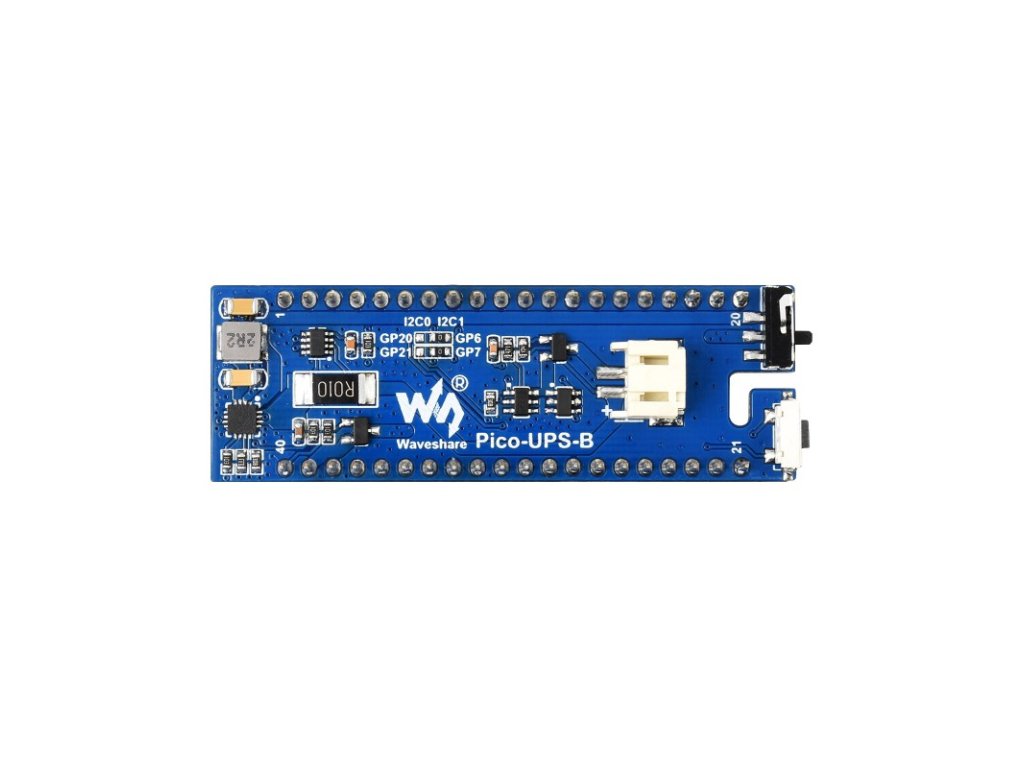

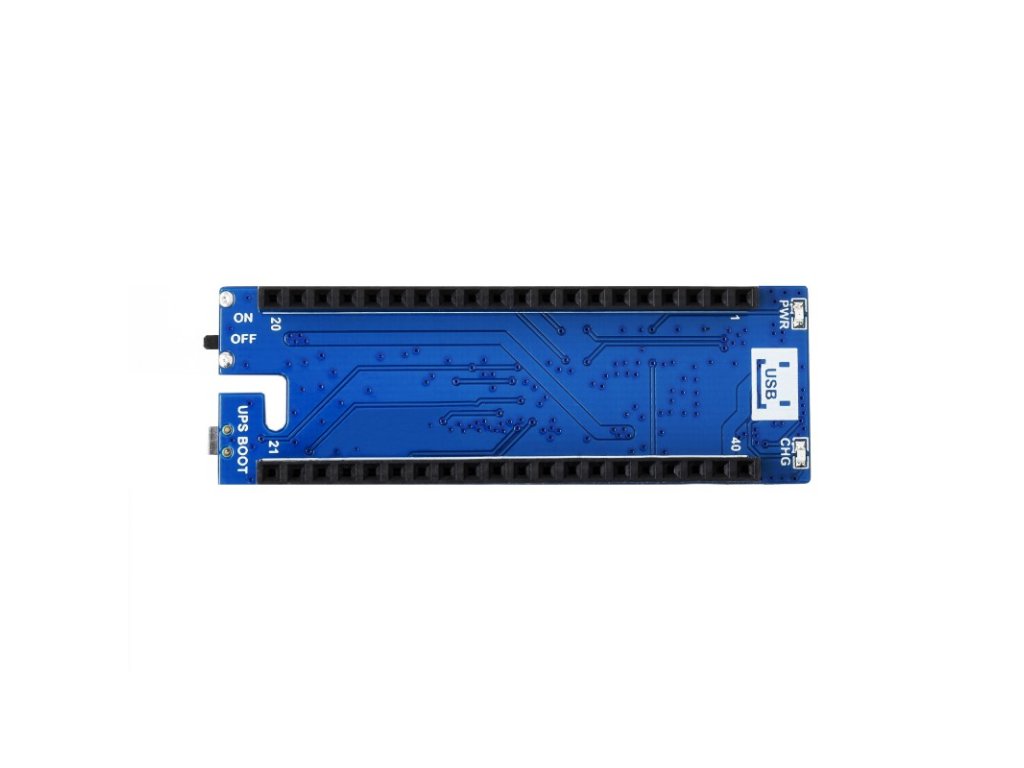

What's On Board
  1. ETA6003
    recharger chip
  2. INA219
    voltage/current monitoring chip
  3. S8261
    Li-po battery protection chip
  4. FS8205
    Li-po battery protection MOS
  5. AO3400
    reverse-proof MOS
  6. SI2305
    counter current preventing MOS

  1. Rapsberry Pi Pico header
    for direct attaching to Raspberry Pi Pico
  2. Power switch
  3. Activate button
    activate the protection circuit after replacing battery
  4. Battery header
    for connecting 3.7V Li-po battery
Pinout definition
Outline dimensions
Resources & Services

WIKI: Pico-UPS-B

Package Content

Weight: 0.024 kg

  1. Pico-UPS-B x1
