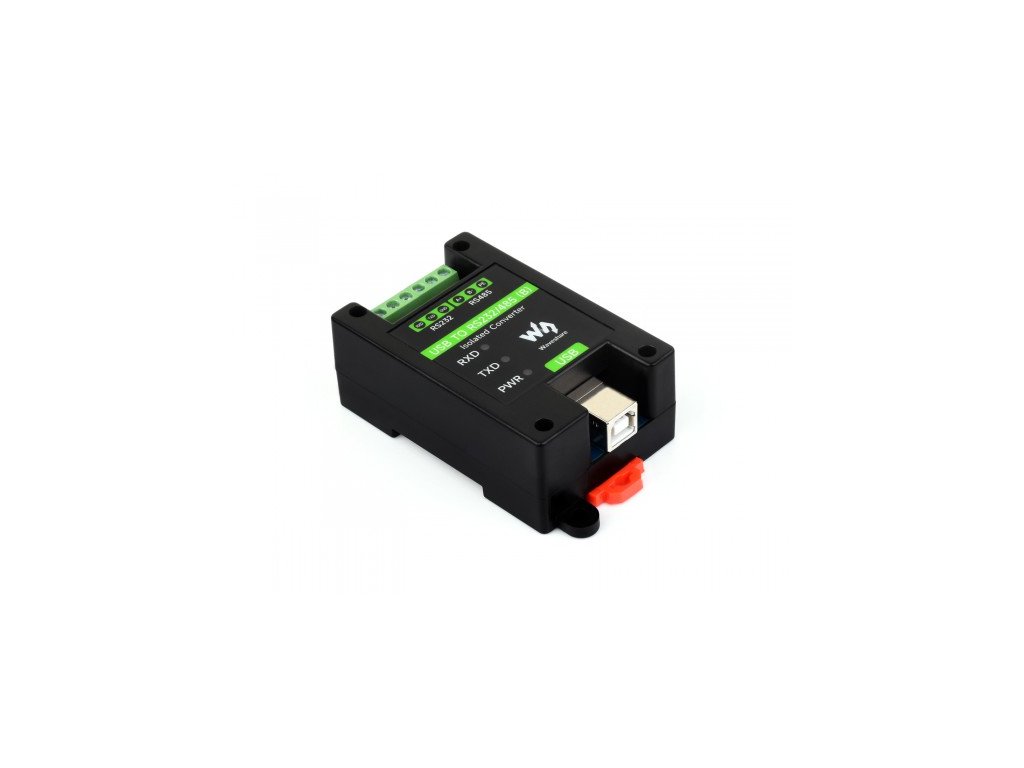

USB to RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip

Neohodnotené

Značka: Waveshare

USB to RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip, Multiple Protection, Wall-mount and Rail-Mount Support

SKU: 26547

Dostupnosť	Skladom (2 ks)
Môžeme doručiť do:	26.11.2024
Možnosti doručenia
Kód:	22475

18,90 € / ks 15,75 € bez DPH

USB to RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip

Neohodnotené

Značka: Waveshare

USB to RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

USB to RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip, Multiple Protection, Wall-mount and Rail-Mount Support

USB To RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip, Multiple Protection, Wall-Mount And Rail-Mount Support

USB TO RS232/485
Industrial Grade Isolated Converter

FT232RNL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible

Features At A Glance

Onboard original FT232RNL chip. Fast communication, stable and reliable, better compatibility
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper
3 LEDs for indicating the power and transceiver status
Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Specifications

PRODUCT TYPE	Industrial grade isolated USB to RS232/485 converter
HOST PORT	USB
DEVICE PORT	RS232/485
USB	Operating voltage	5V
	Connector	USB-B
	Protection	200mA self-recovery fuse, output isolation
	Transmission distance	About 5m
ISOLATED RS232	Connector	Screw terminal
	Transmission distance	About 15m
	Transmission mode	Point-to-point
	Baud rate	300bps ~ 921600bps
ISOLATED RS485	Connector	Screw terminal
	Direction control	Hardware automatic control
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
	Transmission distance	About 1.2km (low rate)
	Transmission mode	Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
	Baud rate	300bps ~ 921600bps

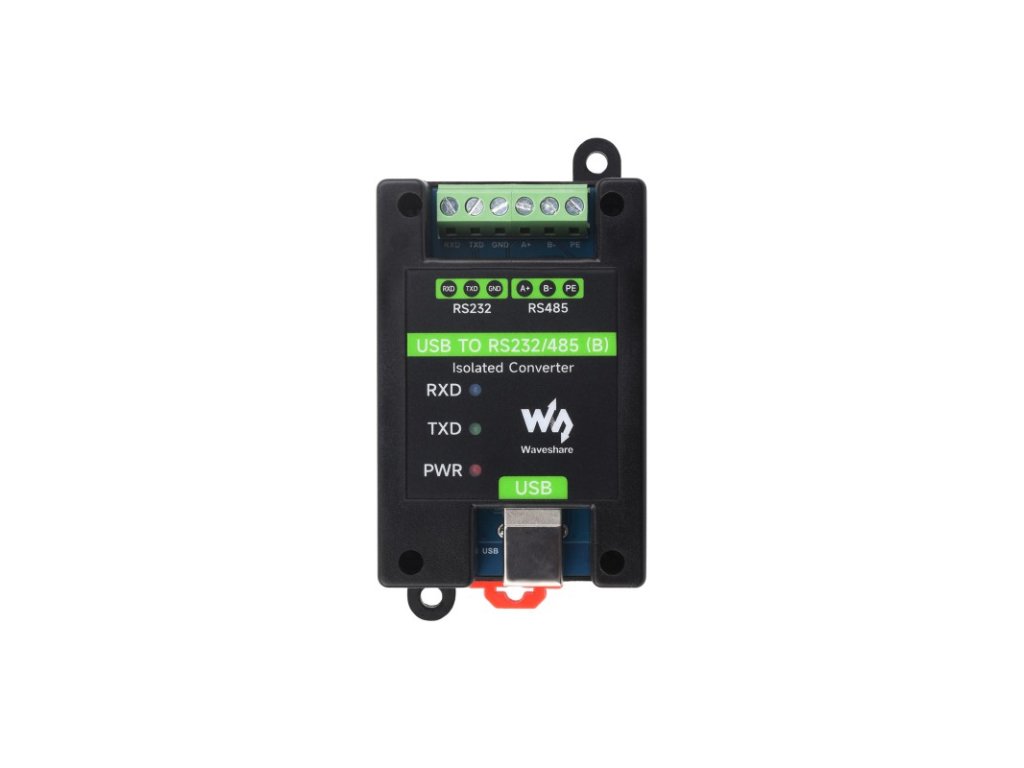

LED INDICATORS	PWR	Red power indicator, lights up when there is USB connection and voltage is detected
	TXD	Green TX indicator, lights up when the USB port sends data
	RXD	Blue RX indicator, lights up when the device ports send data back
OPERATING ENVIRONMENT	Temperature	-15℃ ~ 70℃
OPERATING ENVIRONMENT	Humidity	5%RH ~ 95%RH
OPERATING SYSTEM	Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7

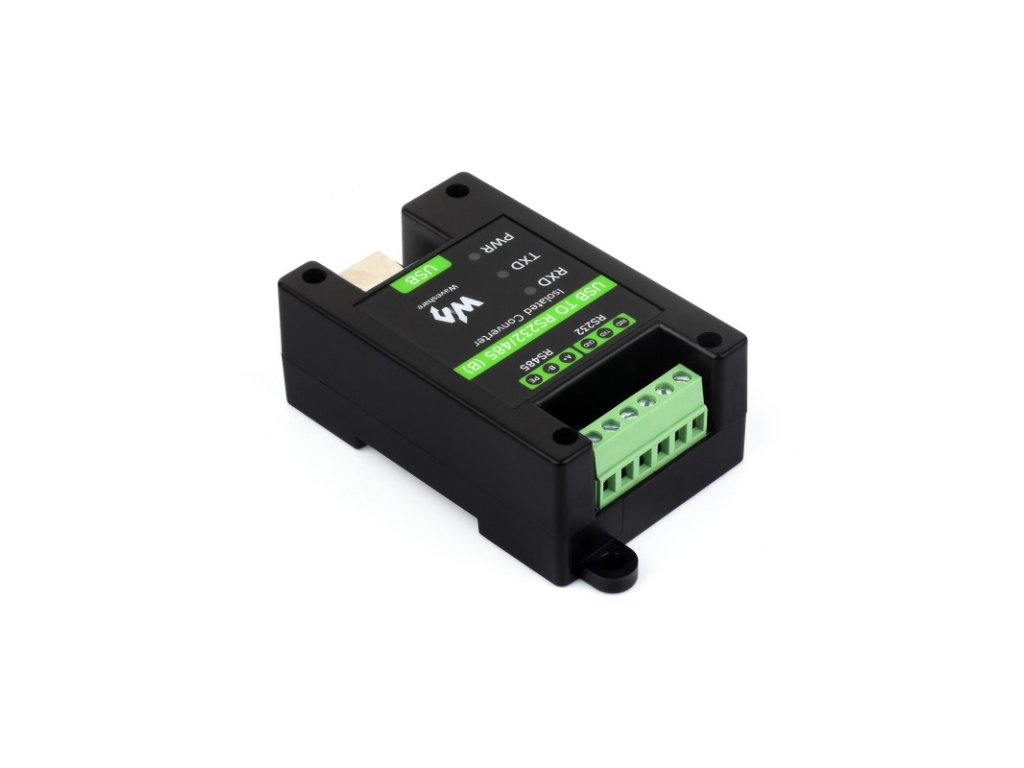

APPEARANCE	Enclosure	Rail-mount ABS case, suitable for 35mm DIN rail
APPEARANCE	Dimensions	81.9 × 54.0 × 32.0mm

Onboard Original Chips

Onboard Original FT232RNL Chips, Providing Better Stability And Compatibility

Galvanic Isolated Design

Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
