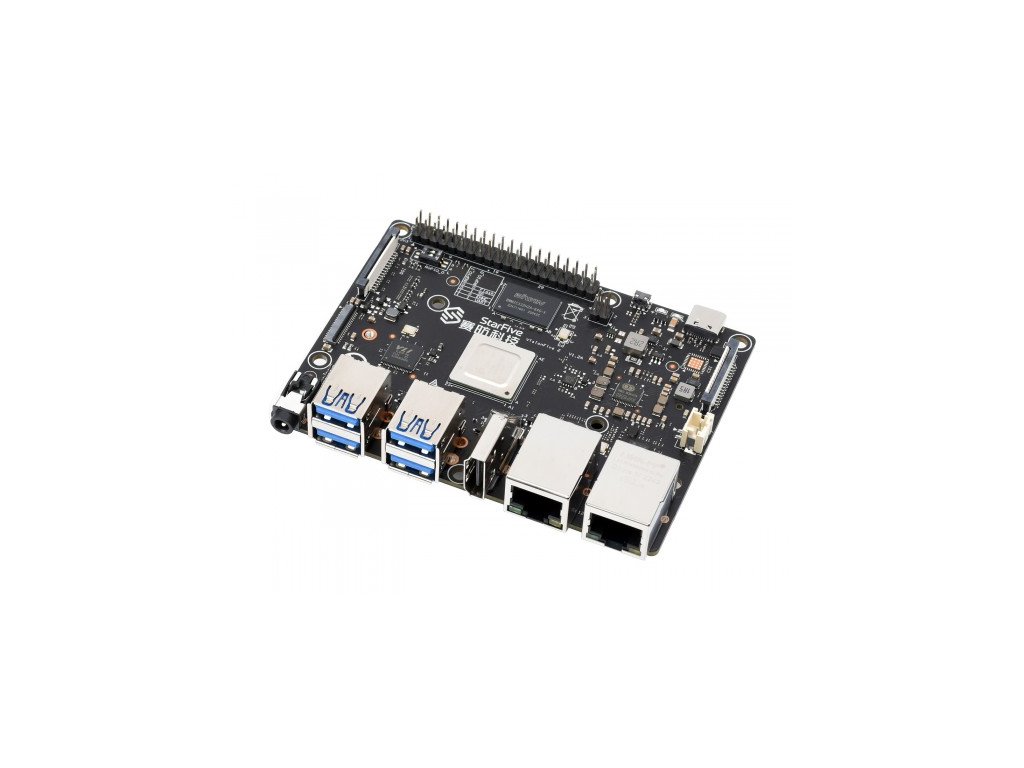

    VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor with Integrated 3D 8GB

    Neohodnotené
    Značka: Waveshare

    VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor with Integrated 3D GPU, base on Linux with WIFI module 8GB

    SKU: 23874

    Dostupnosť Skladom (1 ks)
    Môžeme doručiť do:
    27.11.2024
    Možnosti doručenia
    Kód: 20932
    154,50 € / ks 128,75 € bez DPH
    VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor with Integrated 3D 8GB
    Neohodnotené
    Značka: Waveshare
    VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor with Integrated 3D 8GB
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor with Integrated 3D GPU, base on Linux with WIFI module 8GB

    VisionFive2 RISC-V Single Board Computer, StarFive JH7110 Processor With Integrated 3D GPU, Base On Linux
    VisionFive2 RISC-V Single Board Computer

    Integrated 3D GPU | Base On Linux | Mini-Computer

    Onboard RV64GC ISA Quad-Core 64-Bit SoC, Operating Frequency Up To 1.5GHz

    Features At A Glance
    • Onboard RV64GC ISA Quad-core 64-bit SoC, operating frequency up to 1.5GHz
    • Supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2
    • Available in 4GB/8GB LPDDR4 RAM options, and optional wireless module
    • Multiple onboard interfaces, including M.2 / CSI / DSI / HDMI / eMMC / USB 3.0 / 40PIN GPIO / RJ45 Gigabit Ethernet port / TF card slot, etc
    • Supports 4K@60fps and H264/H265 multi-stream video decoding, 1080p@30fps and H265 multi-stream video encoding
    • Onboard 40PIN GPIO header, compatible with the pinout of Raspberry Pi series boards
    • Provides wide software compatibility including support for Debian

    Kit Selection Guide
    Kitthe VisionFive2 board onlythe VisionFive2 board with WIFI moduleStarter KitStarter Kit with WIFI moduleDisplay KitDisplay Kit with WIFI moduleStarter Box KitStarter Box Kit with WIFI module
    VisionFive2 4GB/8GB√√√√√√√√
    WIFI module√√√√
    Starter Kit Accessories Pack:
    (UART Module, 32GB TF
    Card, Card Reader, 3PIN Cable,
    5V/3A Type-C Power Supply)    		√√√√√√
    Display Kit Accessories Pack:
    (7inch HDMI LCD (H),
    HDMI cable, HDMI adapter,
    USB cable, screws pack)    		√√
    Metal Case + Cooling Fan√√

    VisionFive2
    Options for 4GB/8GB RAM



    VisionFive2 with WIFI module
    with WIFI module, options for 4GB/8GB RAM



    Metal case for VisionFive2
    Metal case + cooling fan
    (can be purchased separately)

    VisionFive2 Starter Kit (WIFI module optional)
    This kit includes VisionFive2 (options for 4GB/8GB RAM), WIFI module (optional) and Starter Kit Accessories Pack, which includes a UART module, 32GB TF card, card reader, 3PIN cable and 5V 3A Type-C power supply, to get users started with VisionFive2 quickly.


    VisionFive2 Display Kit (WIFI module optional)
    On the basis of the starter kit, it is equipped with Display Kit Accessories Pack including a 7inch HDMI display, HDMI adapter, HDMI cable, USB cable and screws pack. With the 1024 × 600 resolution wide view angle touch screen, this kit can meet more application scenarios that require display function.


    VisionFive2 Starter Box Kit (WIFI module optional)
    On the basis of the starter kit, it is equipped with a metal case and cooling fan, which not only protects the internal control board and components, but also effectively dissipates heat from the control board for more stable operation.


    Specifications
    PROCESSORStarFive JH7110
    CPURISC-V U74 Quad-core 64-bit RV64GC ISA SoC
    With 2MB L2 cache and S7 core, operating frequency up to 1.5GHz
    GPUIMG BXE-4-32 MC1, operating frequency up to 600MHz
    MEMORYOptions for 4G/8G Byte LPDDR4
    STORAGETF card (included in the Display Kit, Starter Kit and Starter Box Kit)
    CAMERAMIPI CSI 2lane 1080p@30fps
    DISPLAY1 × 2-lane MIPI DSI 1080p@30fps
    1 × 4-lane MIPI DSI 2K@30fps
    (Only one DSI port can be used for display at the same time)
    1 × HDMI 2.0 4K@30fps, 2K@60fps
    USB HOST4 × USB 3.0 Type-A port
    USB DEVICE1 × USB Device (multiplexed with the USB Type-C port)
    NETWORKING2 × Gigabit Ethernet port (1-ch with PoE function)
    RESET BUTTONPress the reset button to reboot when in the U-boot mode;
    Press and hold the reset button for three seconds to reboot after the system boots
    BOOT MODE SWITCHRGPIO_1RGPIO_0Boot Mode
    00flash
    01TF Card
    10eMMC
    11UART
    DEBUG PIN HEADERSMultiplex pin 8 and pin 10 (physical address) on the 40PIN header, for UART TX and UART RX functions
    USB TYPE-C POWER PORTSupports Quick Charge input 5V DC (minimum 3A) (up to 30 W)
    Supports 5~20V fixed voltage input
    Supports USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A
    Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A
    OTHER POWER SUPPLY5V input via 40PIN GPIO header
    PoE port power input, requires external PoE module
    OTHER INTERFACES40PIN GPIO
    M.2 M-Key Solid State Drive socket
    eMMC socket
    2PIN Fan header
    3.5mm Audio Jack, 4-pole stereo audio jack
    DIMENSIONS100 × 74 × 21mm
    COMPLIANCERoHS, FCC, CE
    RECOMMENDED OPERATING AMBIENT TEMPERATURE0~50℃ (If the operating temperature of the chip exceeds 85°C, the frequency and voltage of the CPU will be automatically reduced for cooling)

    OperatingSystem
    Multi-Function

    Powerful Performance, Open Source Application Environment, And Rich Software Ecology
    More Possibilities For VisonFive 2


    Application Examples

    Quake 3D



    GLMark2



    MANE emulator



    Run multiple programs simultaneously

    Metal Case + Cooling Fan
    Better Protection And Heat Dissipation

    The Case Adopts Bending Steel Plates And The Powder Coating Process On The Surface, With The Protection Grade Of IP30, More Sturdy And Durable. Can Provide Better Heat Dissipation With The Cooling Fan


    Precise Cut-Out Design

    Each Cut-Out Is Completely Aligned With The Board Interfaces



    Easy To Connect 40PIN GPIO

    Reasonable Layout, Full Use Of Various Interfaces



    DIN Rail Mounting Design At The Bottom

    * for reference only, the rail accessories are Not included


    How To Install

    * for reference only, please refer to the Package Content for the detailed part list


    40PIN GPIO Header

    * All GPIO pins can be multiplexed to support different functions including
    SDIO, Audio, DMIC, SPI, I2C, UART, PWM, CAN


    Onboard Resources
    1. JH7110
    2. PoE port
    3. Boot mode selection
    4. 40Pin GPIO
    5. 4GB/8GB LPDDR4 SDRAM
    6. Reboot button
    7. EEPROM
    8. Type-C power port
    9. 2-lane MIPI CSI
    10. PMIC
    11. 2PIN FAN header
    12. Gigabit Ethernet Chip

    1. Gigabit Ethernet port (with PoE function)
    2. Gigabit Ethernet port
    3. HDMI 2.0 port
    4. 3.5mm Audio Jack
    5. USB 3.0 Ports
    6. 4-lane MIPI DSI
    7. USB 3.0 Host chip
    8. 2-lane MIPI DSI
    9. eMMC socket
    10. TF card slot
    11. QSPI Flash
    12. M.2 M-Key

    Product Show


    * for reference only, please refer to the Package Content for the detailed part list


    Dimensions

    Certificate Of Authorization

    Resources & Services
    PACKAGE CONTENT

    Weight: 0.152 kg

    VisionFive2

    1. Packing and protective case x1
    2. OPTIONS VisionFive2 ×1
    3. OPTIONAL WIFI module x1
    4. Screws pack ×1
