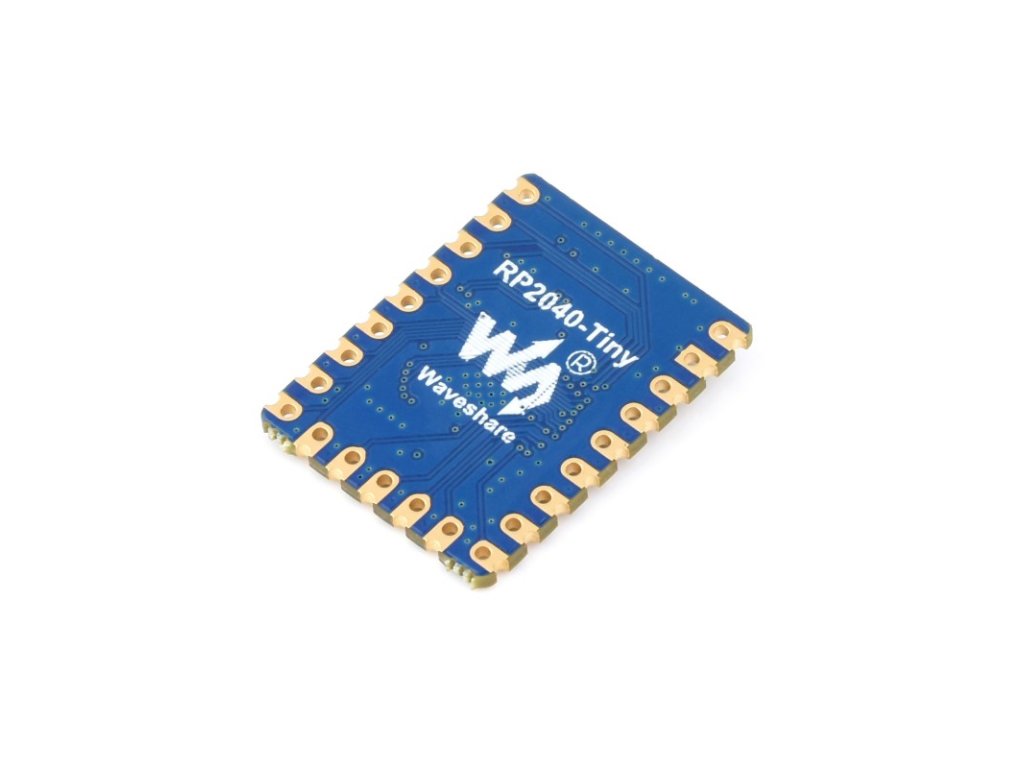

    Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor, USB Port

    Neohodnotené
    Značka: Waveshare

    Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional

    SKU: 24664

    Dostupnosť Zvyčajne do 3-7 dní
    Môžeme doručiť do:
    29.11.2024
    Možnosti doručenia
    Kód: 24125
    5,40 € / ks 4,50 € bez DPH
    Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor, USB Port
    Neohodnotené
    Značka: Waveshare
    Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor, USB Port
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional

    Waveshare RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based on Official RP2040 Dual Core Processor, USB Port adapter board Optional
    RP2040-Tiny Development Board

    Based On RP2040, USB Port Adapter Board Optional


    Board specifications
    • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
    • 264KB of SRAM, and 2MB of onboard Flash memory
    • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
    • Castellated module allows soldering direct to carrier boards
    • USB 1.1 with device and host support
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • 20 × multi-function GPIO pins
    • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
    • Accurate clock and timer on-chip
    • Temperature sensor
    • Accelerated floating-point libraries on-chip
    • 8 × Programmable I/O (PIO) state machines for custom peripheral support
    Version Options

    RP2040-Tiny-Kit
    Development board + RP2040-Tiny-Adapter + FPC cable



    RP2040-Tiny
    The development board only


    Support C/C++, MicroPython, Arduino

    Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

    Compact size, Separate adapter board design

    Castellated holes with immersion gold design, highly integrated packaging, easy to embed into various product applications

    Adapting USB Type-C port via adapter board

    Dual-Core Arm Processor

    Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

    20 × multi-function GPIO pins

    configurable pin function, allows flexible development and integration

    * Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.

    What's On Board
    1. FPC connector
      0.5mm pitch 8PIN
    2. RT9193-33
      500mA low dropout, low noise, ultra-fast LDO
    3. W25Q16JVUXIQ
      2MB NOR-Flash

    1. RP2040
      dual-core processor, up to 133MHz operating frequency
    2. WS2812
      RGB LED Indicator

    Product Show

    outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/RP2040-Tiny

    Package Content

    Weight: 0.008 kg

    1. RP2040-Tiny x1
    2. OPTIONS RP2040-Tiny-Adapter x1
    3. OPTIONS 8PIN FPC cable ~15cm x1
